One system, countless benefits

Robots, lasers, processing optics, enclosed protective housing, and positioners – TruLaser Weld 5000 is a turn-key system for automatic laser welding. You can flexibly weld deep and strong seams or nicely rounded, smooth seams using one system. FusionLine also enables you to connect components with gaps. The versatile system can be precisely tailored to meet your needs with different component positioners.

Flexible laser welding

Heat conduction welding, deep penetration welding, or FusionLine – all on just one machine

User-friendly operation

Functions such as the rotatable control panel and the additional status monitor make your work easier.

Improved accessibility

The rotary module for shield gas guidance provides excellent parts accessibility

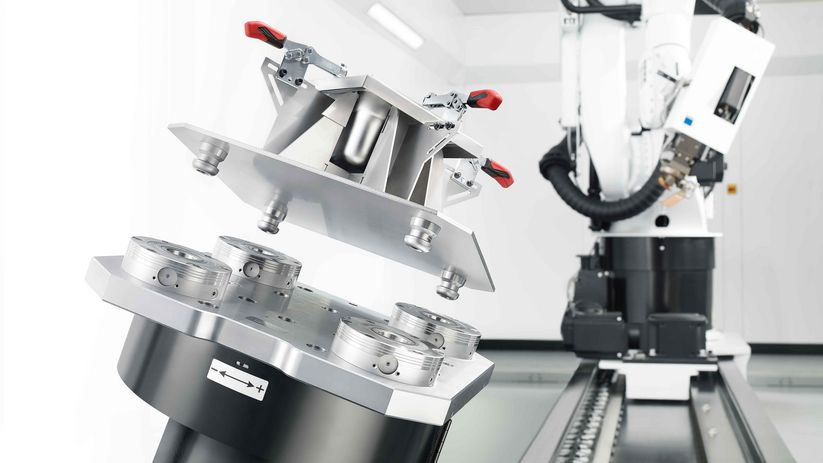

Individual loading

Different component positioners are available depending on the desired loading option.

Parallel programming

With the simple TruTops Weld offline programming system

Automatic component position detection

The TeachLine sensor system reliably detects the seam placement.

TruLaser Weld 5000

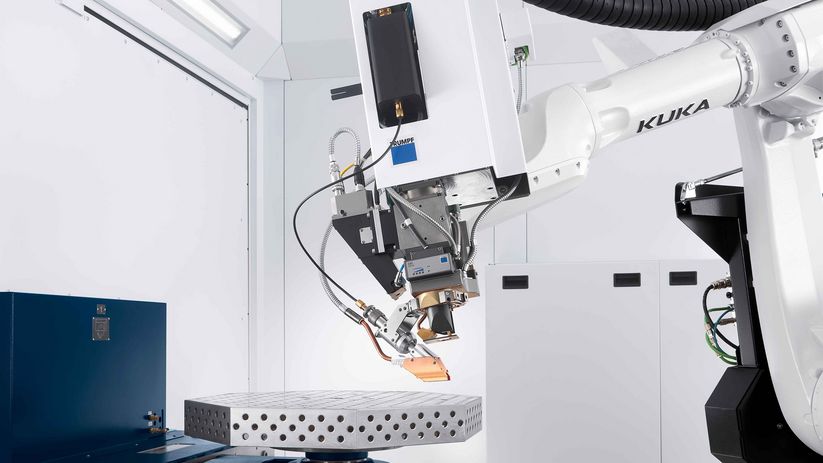

The new BrightLine scan welding process enables various new laser welding applications

TruLaser Weld 5000, large format

The TeachLine sensor system reliably detects the position of the seam

Laser welding a mild steel cover

Laser welding a stainless steel counter segment

New level of laser welding

The new BrightLine scan welding process enables you to robustly and flexibly weld small joint gaps, specifically adjust seam widths, and influence weld flaking. Elevate your laser welding work to a new level by adding new areas of application, such as thick sheet metal and aluminum, and reducing the amount of spatter.

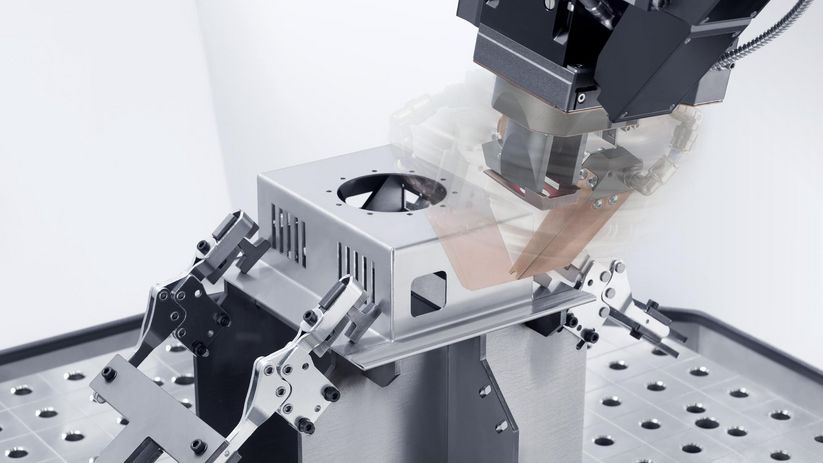

TruLaser Weld 5000, rotary module for shield gas guidance

Improving accessibility

The rotary module make it easier to access your components allowing you to weld faster. The shielding gas nozzle rotates continuously around the optics. The robot does not need to reorient itself.

Tolerant laser welding with FusionLine

This allows you to close gaps up to 1 mm wide and to laser-weld economically without optimizing your component portfolio for laser welding. The benefit for you: The machine can process more components and your capacity increases.

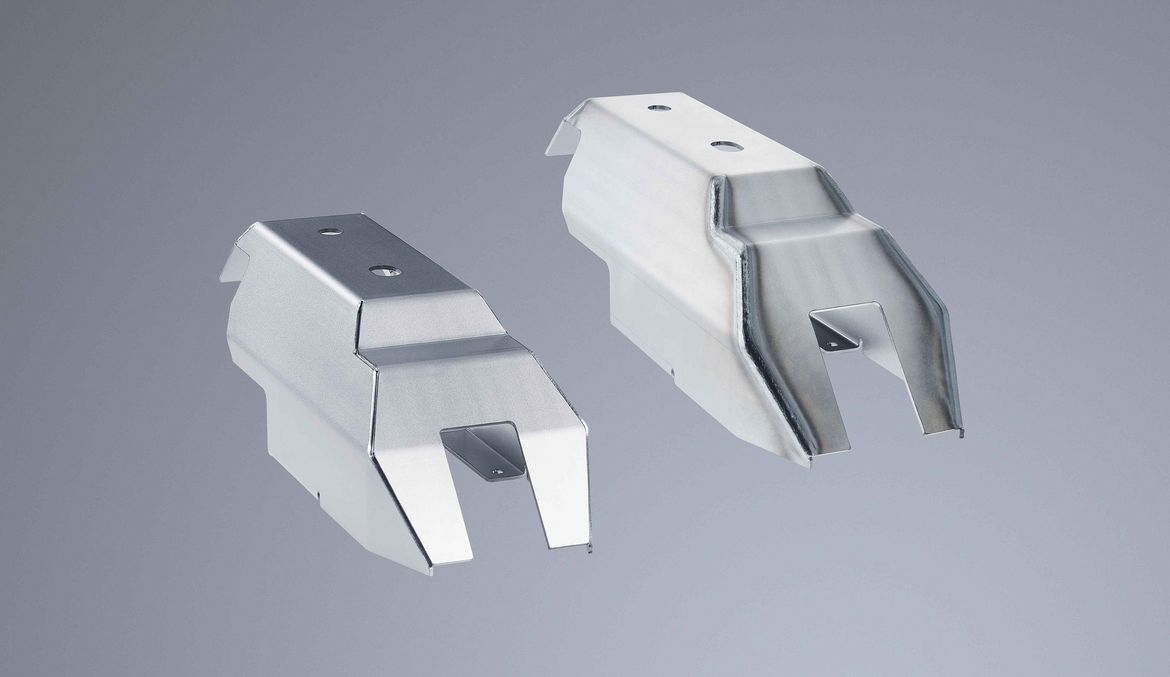

TruLaser Weld 5000 sample part for process-reliable welding

Welding with process reliability

BrightLine Scan allows you to weld corners, gaps and other tolerances with process reliability. This sample part made of mild steel shows a conventionally designed cover for a clamp.

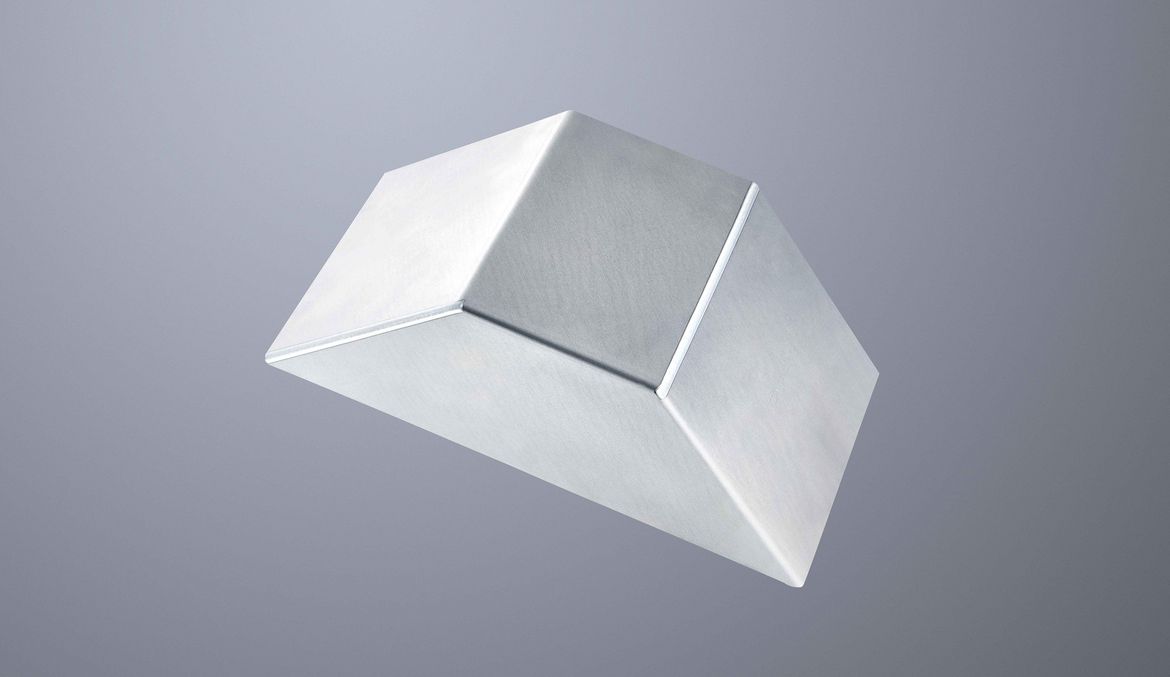

High-quality welding results

BrightLine Scan's high frequencies achieve high-quality welding results with aluminum alloys. This aluminum sample part shows a battery tray element with a 135° corner.

Flexible welding

The water tank made of stainless steel shows different deep-welded seam geometries in sheet thicknesses of 0.06 in and 0.12 in.

Quick and reliable

You can create slim high-strength seams quickly with the deep welding process.

Almost invisible

The counter segment made of stainless steel shines as a result of heat conduction welding with particularly attractive visible seams.

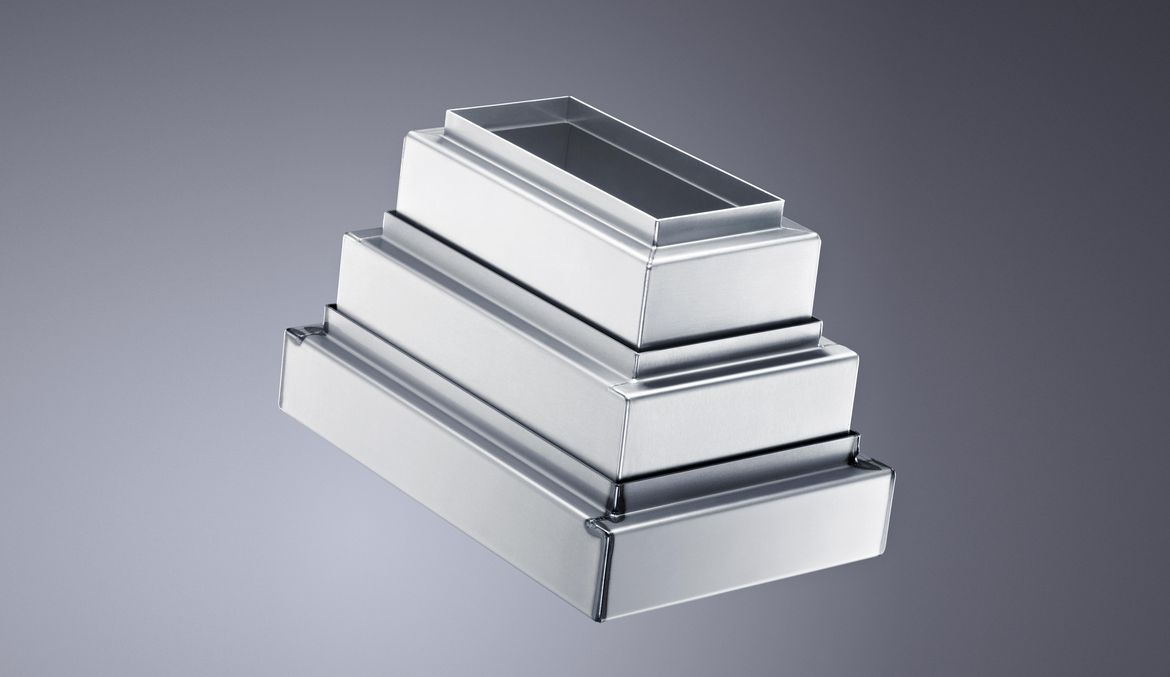

For all common materials

The lower terminal box is made of mild steel, the middle one is made of stainless steel, and the upper one is made of aluminum. You can weld all material with the laser with flexibility.

As if it were a single piece

You can create nicely rounded seams with heat conduction welding, with barely any component distortion.

Hardly any rework required

Catering containers made of stainless steel can be produced with laser welding with hardly any post-processing required.

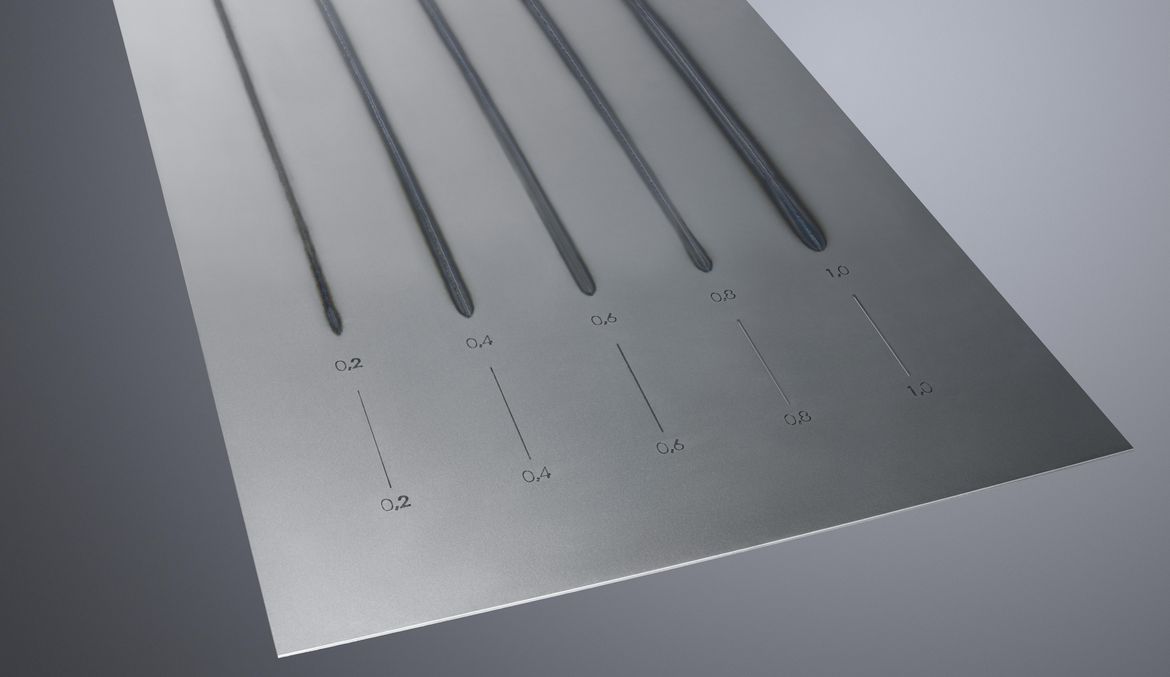

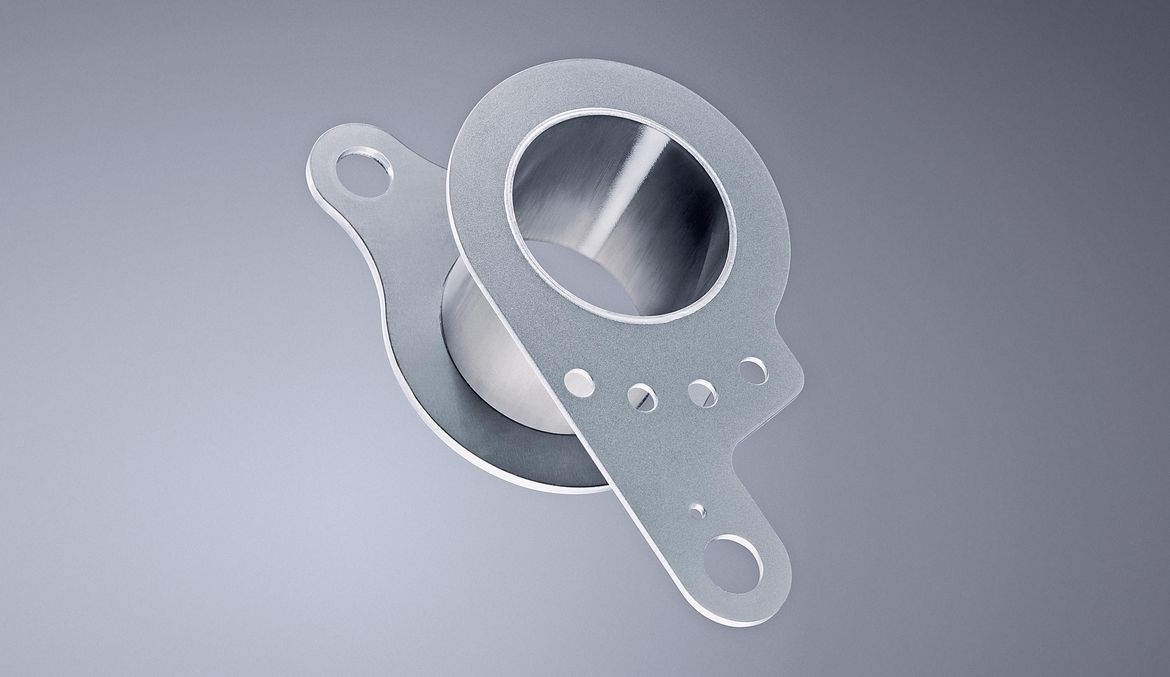

Tolerant laser welding

The new FusionLine bridges gaps up to a millimeter wide.

	TruLaser Weld 5000
Axis data
Type	High accuracy robot
Number of axes	6
Nominal carrying capacity	70 kg
Repeatability	+/- 0.05 mm
Laser-specific data
Available lasers	TruDisk 4001 / 6001 / 8001 \| TruFiber 3001 / 4001 / 6001
Rotate and tilt positioner
Maximum work area	2000 mm x 1000 mm x 1200 mm
Maximum loading	500 kg
Dual station table
Max. work area (⌀)	2350 mm
Max. work area (height)	1150 mm
Maximum loading (per side)	250 kg
Rotary table with turning axis
Max. work area (⌀ rotating drum)	1200 mm
Max. work area (length)	2600 mm
Maximum loading (per side)	750 kg
Turnover positioner
Max. work area (⌀ rotating drum)	2000 mm
Max. work area (length)	4000 mm
Maximum loading (per side)	1000 kg
Compact rotary table with 3D clamping plate (rectangle)
Max. work area (⌀)	3000 mm
Max. work area (height)	1250 mm
Maximum loading (per side)	600 kg
Maximum load mass moment of inertia	600 kg*m²
Rotation area of rotary table	± 180 °
Rotation time of rotary table (for 180°)	3.7 s
Insertion height	830 mm
Compact rotary table with vertical rotary axes
Max. work area (⌀)	3000 mm
Max. work area (height)	1250 mm
Maximum loading (per side)	600 kg
Max. load mass moment of inertia for ring-shaped rotary indexing table	600 kg*m²
Rotation area of rotary table	± 180 °
Rotation time of rotary table (for 180°)	3.7 s
Rotation area of vertical rotary axes	± 190 °
Rotation time of rotary axes (for 180°)	2.5 s
Max. load mass moment of inertia for vertical rotary axes	359 kg*m²
Insertion height	885 mm
Dimensions, weights
Possible cabin dimensions	4800 mm x 3650 mm x 3215 mm 4800 mm x 4800 mm x 3215 mm 4800 mm x 5950 mm x 3215 mm 5950 mm x 4800 mm x 3215 mm 5950 mm x 5950 mm x 3215 mm 7100 mm x 4800 mm x 3215 mm 7100 mm x 5950 mm x 3215 mm 8250 mm x 4800 mm x 3215 mm 8250 mm x 5950 mm x 3215 mm 9400 mm x 4800 mm x 3215 mm 9400 mm x 5950 mm x 3215 mm

PDF <1MB

Technical data sheet

The technical data of all product versions as a download.

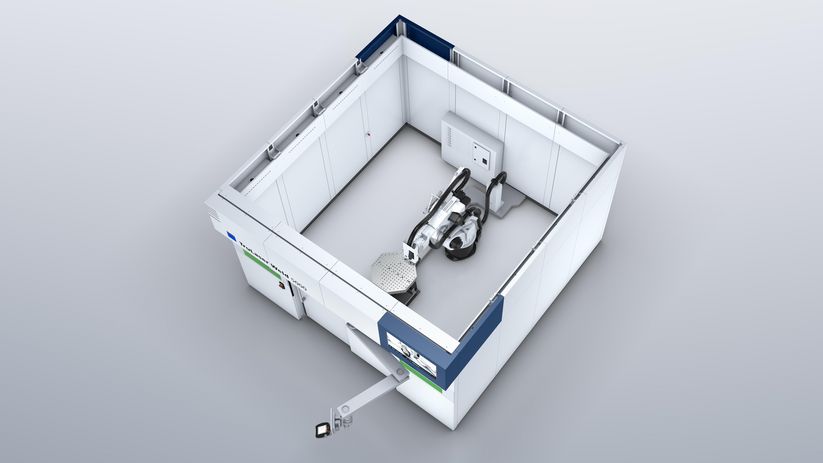

Rotate and tilt positioner

With an NC rotary axis integrated into the robot control, the rotate and tilt positioner also makes it possible to weld components that are difficult to access in just one tool setup.

Rotary table

The rotary table enables you to set up outside the cell during the welding process, which increases the efficiency of your system.

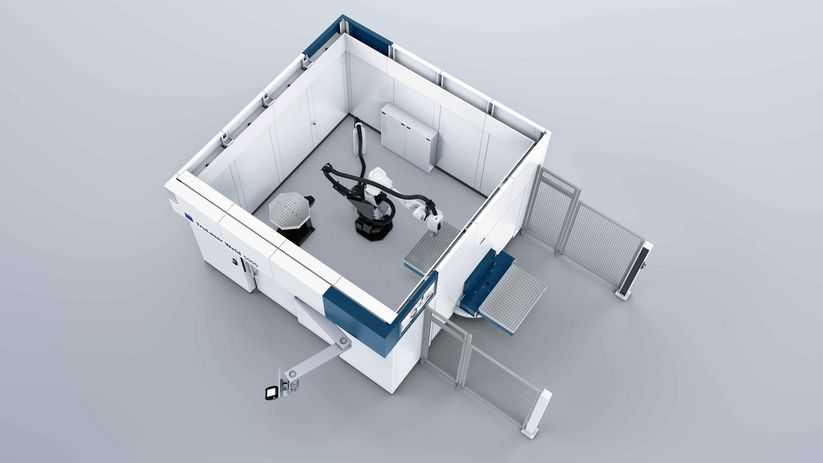

Compact rotary table with 3D clamping plate

Compact, productive, and low cost: With the automatic rotating work table you will double your throughput and can weld on the inside on one side of the table, while simultaneously setting up a new component on the outside.

Compact rotary table with vertical rotary axis

Compact, flexible, and cost-effective: Increase your flexibility and access to the components by using the vertical rotary axis.

Rotary table with horizontal turning axis

Fast, flexible, and solid: Benefit from the high carrying capacity, the large distance between centers, and fast rotation time. This is perfect for fast "round-the-clock" processing of high quantities and large components.

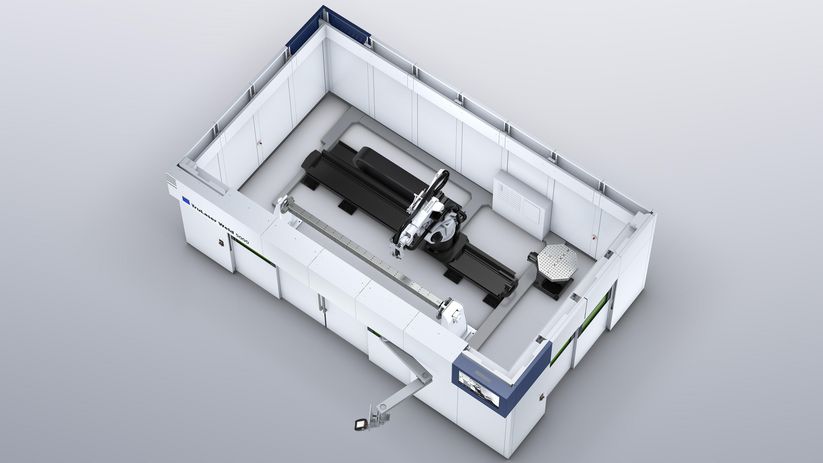

Automated laser welding in XXL

The TruLaser Weld 5000 robot travels along a linear axis, covering a large work area. In line with this, the system has a four-meter long turnover positioner.

Rotary module for shield gas guidance

The shielding gas nozzle rotates continuously around the optics. The amount the robot needs to reorient itself is significantly reduced. This reduces expenditure on clamping systems and programming, makes your components more accessible, and you can weld much more quickly.

TeachLine

The TeachLine sensor system means that you can also weld components without time-consuming reteaching. The sensors detect the placement of the seam, even if its actual position deviates slightly from the required position.

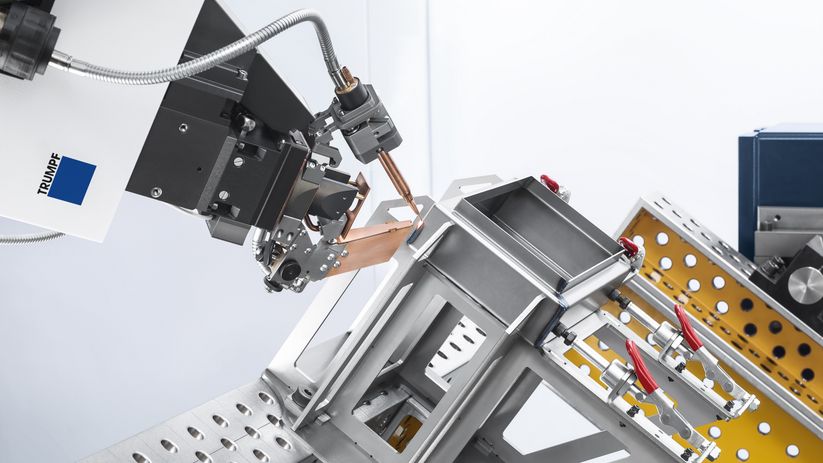

FusionLine

FusionLine allows you to close gaps up to 1 mm wide and to laser-weld economically without optimizing your component portfolio for laser welding.

BrightLine scan

During this new welding process using beam oscillation, two programmable mirrors move the laser beam. Frequencies of up to 2000 Hz ensure that the welding process is particularly robust and flexible. Elevate your laser welding work to a new level.

Thanks to simple programming and intelligent online seam tracking

BrightLine Weld

With BrightLine Weld, the power of the laser beam is distributed over the fiber ring and the fiber core of a 2in1 fiber. This reduces spatter and ensures a more stable process overall.

Digital connection and integration for smart solutions

Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.
