The universal frame solution

The LiftMaster Linear automatically loads and unloads sheets, via its linear axis, to as many as three machines on a maximum of six tool stations. At the tool stations you can perfectly integrate cart systems, machines, loading stations, or unloading platforms. The versatile LiftMaster Linear can, therefore, master almost any application. The Sort or Scrap Skeleton Separation upgrades offer an additional productivity boost. They separate finished parts from the scrap skeleton.

Large dimensions

The maximum sheet size is 240 x 80 inches.

Flexible layout

If you wish, you can integrate up to three machines or a store – in many installation versions.

Fully automated with optional SortMaster

In conjunction with the SortMaster, the LiftMaster Linear evolves into a fully automated processing cell that offers total process reliability.

Scrap skeleton separation increases productivity

Produce in a single stroke and at under a minute per sheet.

Cancel

Compare products

Starting product Your starting product

1st comparison model 2nd comparison model (optional)

Compare now

LiftMaster Linear large format
LiftMaster Linear max format
LiftMaster Linear oversize format
LiftMaster Linear oversize format

	LiftMaster Linear large format Compare product	LiftMaster Linear max format Compare product	LiftMaster Linear oversize format Compare product	LiftMaster Linear oversize format Compare product
Loading
Maximum sheet size	3000 mm x 1500 mm	4000 mm x 2000 mm	6000 mm x 2000 mm	6000 mm x 2500 mm
Minimum sheet size	1000 mm x 1000 mm	1000 mm x 1000 mm	1000 mm x 1000 mm	1000 mm x 1000 mm
Maximum sheet thickness	30 mm	30 mm	25 mm	25 mm
Maximum sheet weight	1100 kg	1900 kg	2360 kg	2960 kg
Unloading
Maximum sheet size	3000 mm x 1500 mm	4000 mm x 2000 mm	6000 mm x 2000 mm	6000 mm x 2500 mm
Minimum sheet size	150 mm x 150 mm	150 mm x 150 mm	150 mm x 150 mm	150 mm x 150 mm
Maximum sheet thickness	30 mm	30 mm	20 mm	20 mm
Max. sheet thickness (belt prong)	15 mm	15 mm	-	-
Maximum sheet weight	1100 kg	1600 kg	2400 kg	2400 kg

Compare products End comparison End comparison	LiftMaster Linear large format	LiftMaster Linear max format	LiftMaster Linear oversize format	LiftMaster Linear oversize format
Loading
Maximum sheet size	3000 mm x 1500 mm	4000 mm x 2000 mm	6000 mm x 2000 mm	6000 mm x 2500 mm
Minimum sheet size	1000 mm x 1000 mm	1000 mm x 1000 mm	1000 mm x 1000 mm	1000 mm x 1000 mm
Maximum sheet thickness	30 mm	30 mm	25 mm	25 mm
Maximum sheet weight	1100 kg	1900 kg	2360 kg	2960 kg
Unloading
Maximum sheet size	3000 mm x 1500 mm	4000 mm x 2000 mm	6000 mm x 2000 mm	6000 mm x 2500 mm
Minimum sheet size	150 mm x 150 mm	150 mm x 150 mm	150 mm x 150 mm	150 mm x 150 mm
Maximum sheet thickness	30 mm	30 mm	20 mm	20 mm
Max. sheet thickness (belt prong)	15 mm	15 mm	-	-
Maximum sheet weight	1100 kg	1600 kg	2400 kg	2400 kg

PDF <1MB

Technical data sheet

The technical data of all product versions as a download.

TruStore Series 1000

Practical compact store

To the product

TruStore Series 3000

The most flexible storage

To the product

Multiple-machine connection

With the LiftMaster Linear you can load and unload up to three machines simultaneously. The software, TruTops FMC, is used to control and manage all components during multiple-machine operation.

LiftMaster Linear, scrap skeleton separation

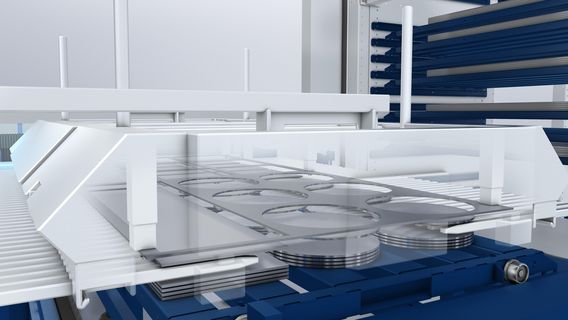

Thin sheet scrap skeleton separation

The LiftMaster Linear quickly separates finished parts from the scrap skeleton. For this purpose, the suction frame is additionally equipped with spreadable grippers, which pick up the scrap skeleton in the unloading rake. The finished parts remain in the closed unloading rake and can be placed down in the unloading area. The suction frame then places the scrap skeleton.

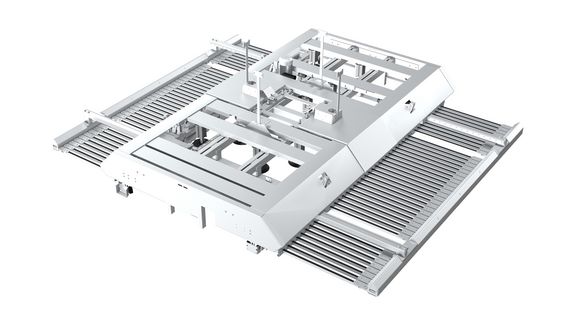

Suction frame / unloading rake

The unloading rake takes the finished, processed sheet from the pallet changer and places it in the unloading area. The suction frame is fitted with individually controllable suction cups that pick up the unprocessed sheets from the loading area and place them on the pallet changer.

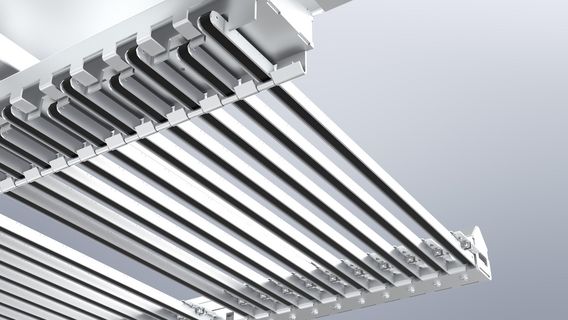

Belt prongs

So-called belt prongs enable low-scratch part unloading with high positioning accuracy.

SortMaster

The SortMaster takes out, sorts, and stacks cut finished parts.

TruLaser 5060 with LiftMaster Linear and dual carts

Multiple-machine connection with three TruLaser 5060 machines and a LiftMaster Linear

LiftMaster Linear with the TruLaser 5030 fiber

TruLaser 5030 fiber with LiftMaster Linear
