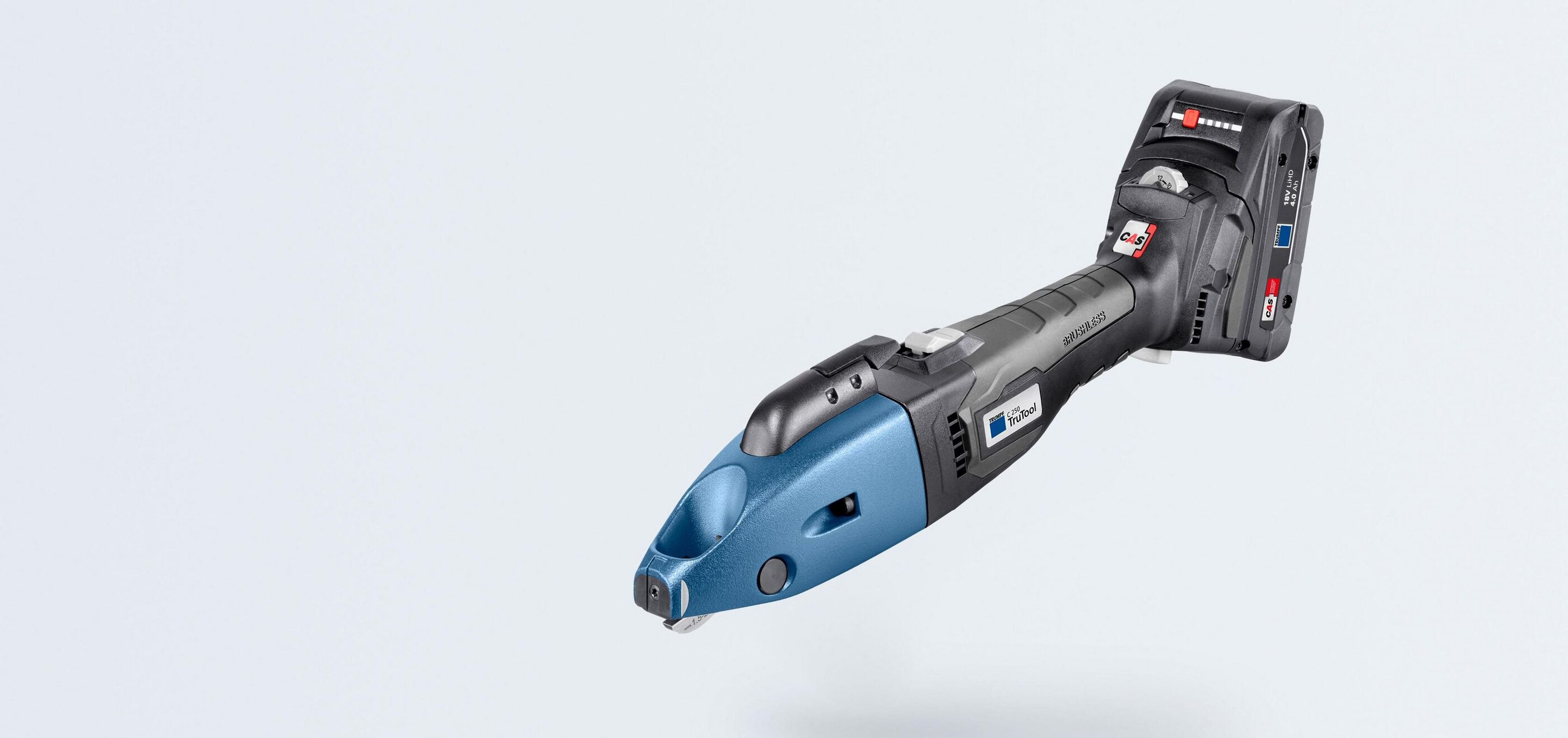

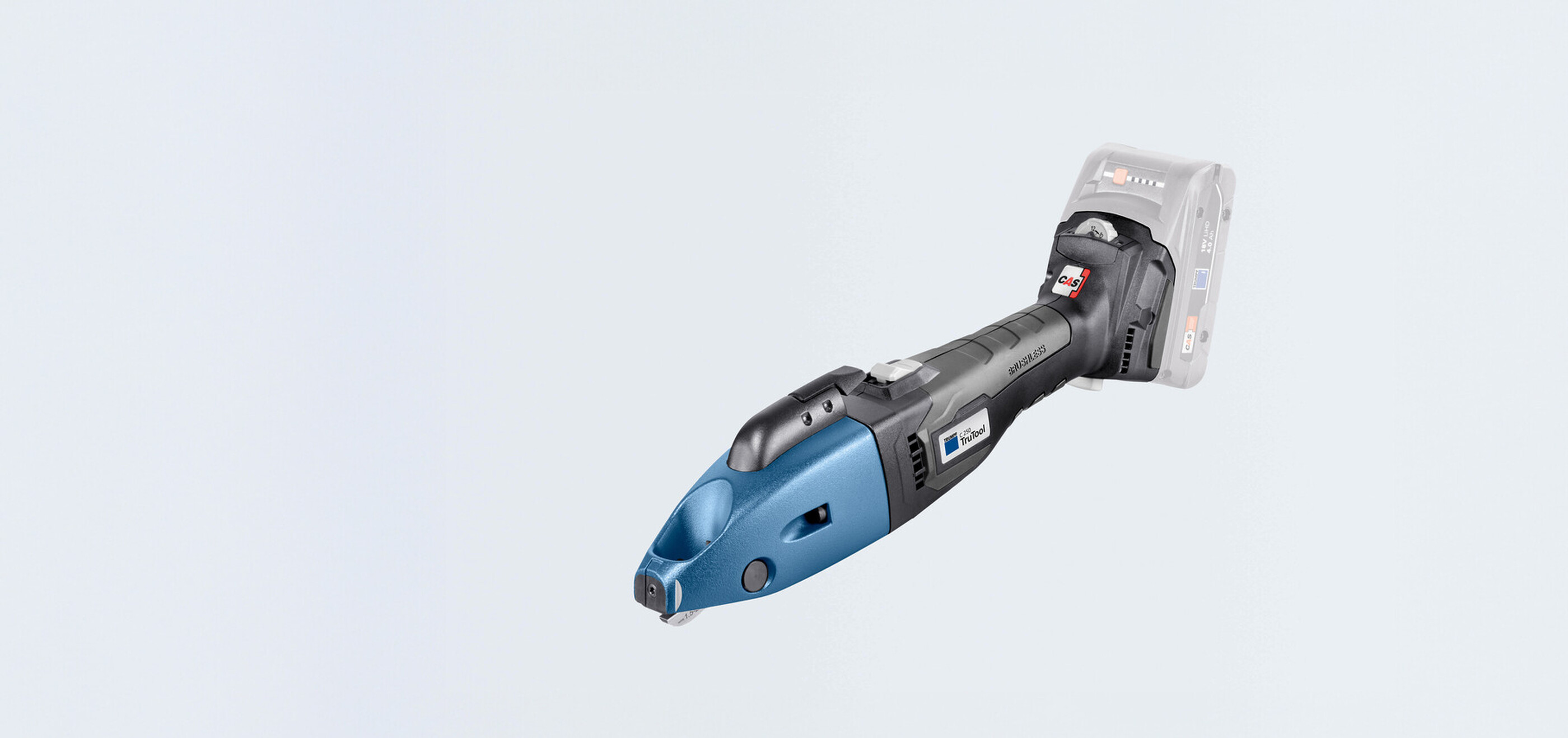

TruTool C 250 with chip clipper, 18V LiHD rechargeable battery

TruTool C 250 with chip clipper, 18V LiHD rechargeable battery

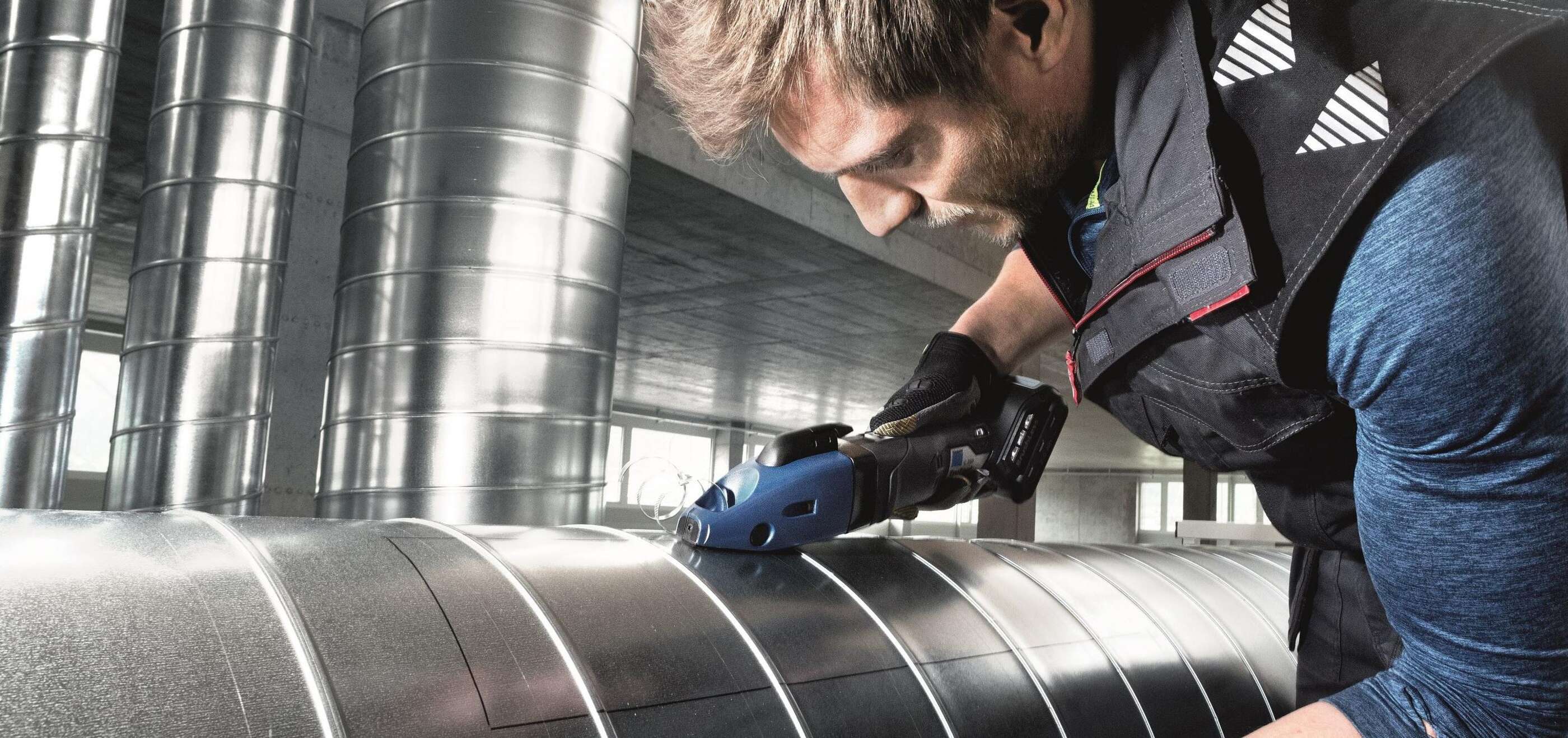

Perfect for cutting spiral ducts

The most powerful cordless slitting shears

The TruTool C 250 with chip clipper and 18V LiHD rechargeable battery is the first cordless rechargeable slitting shear that cuts sheet thicknesses of 2.5 mm in mild steel and 1.5 mm in stainless steel. The integrated chip clipper enables you to cut off chips at any time with one hand and pull the machine out of the workpiece. Excellent for notching work and interior cut-outs. We provide you with different knives to match the application. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes.

Cordless Alliance System

Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility for over 180 machines in the 18-volt class

Brushless motor

Almost unlimited service life, virtually wear-free and hardly any maintenance required. Battery performance per charge is also increased.

Chip clipper for single-handed operation

Chips can be easily cut with one hand at the touch of a button. Perfect for interior cutouts and notches.

Uniquely powerful

The first slitting shears with rechargeable battery for cutting mild steel up to 2.5 mm and stainless steel up to 1.5 mm.

Slitting shears: Video about the area of application

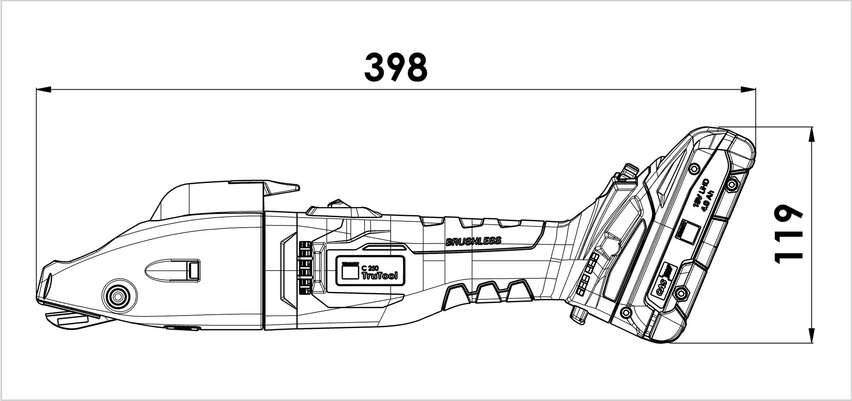

TruTool C 250 with chip clipper 18V LiHD battery, dimensional drawing

Cordless Alliance System

This product is part of the Cordless Alliance System. CAS means one battery for everything, 100% compatibility for machines, rechargeable battery packs and rechargers – regardless of manufacturer. World's most powerful battery system with 30 years of battery expertise from Metabo. Maximum reliability, clear cost benefits and a sound investment.

Battery technology

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. By cells being protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. The result: high-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection.

For any application

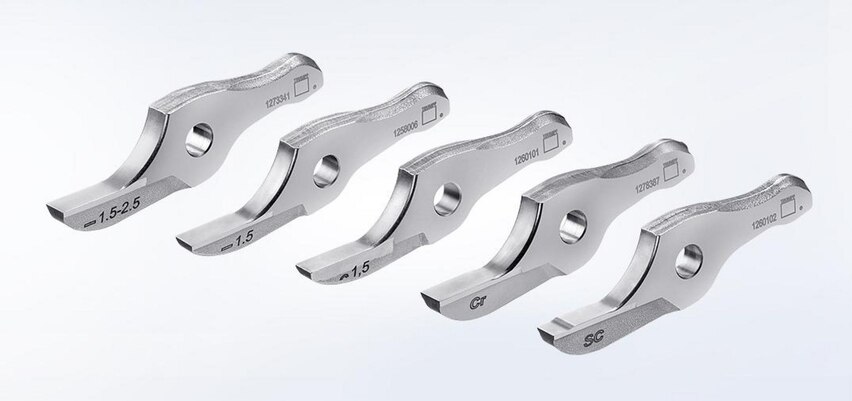

We offer 5 different cutters: The CR cutter is ideal for processing stainless steel. The curve cutter cuts with excellent contouring. The spiral cutter is ideal for spiral ducts and cuts even sheet thicknesses of up to 0.14 in. quickly. There are two different cutters available for straight cuts: One cutter for processing thin sheets of up to 1.5 mm and one further cutter for use on sheet thicknesses of 1.5 – 2.5 mm

Flat sheet

For cutting and trimming flat sheets. For radial and interior cutouts, as well as notches.

Profiles

For cutting C-L-U profiles and longitudinal cuts in profile sheets.

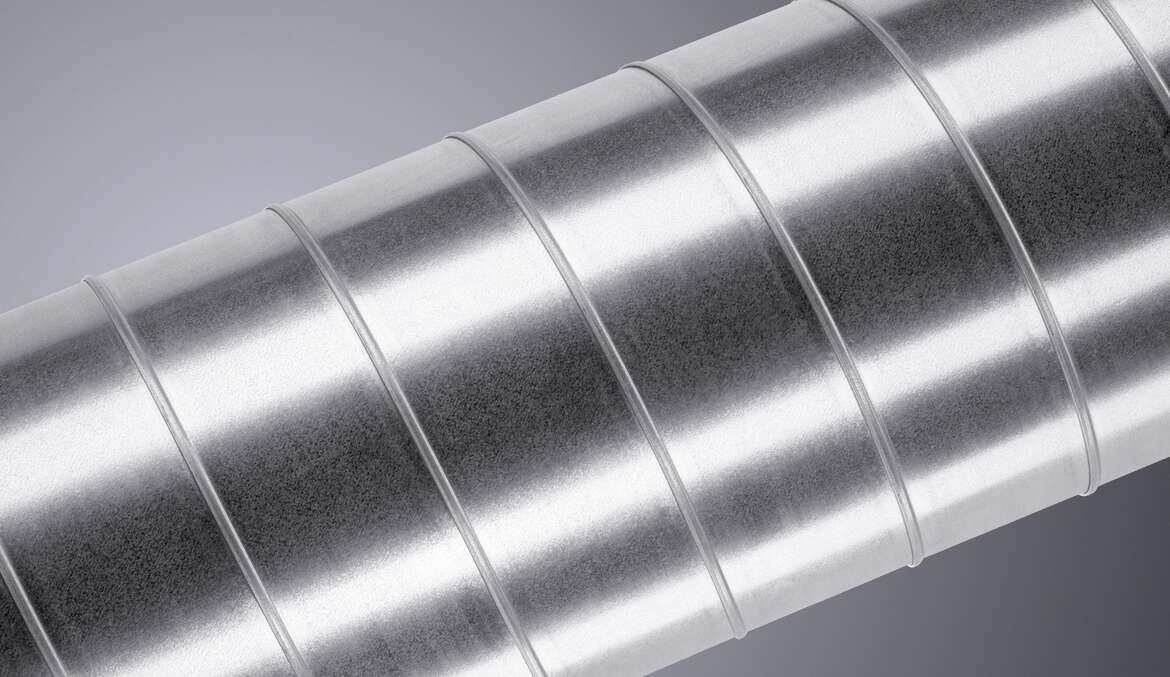

Spiral ducts

For cutting spiral ducts. For sheet thicknesses of 4 x 0.9 mm or 6 x 0.6 mm in mild steel, and 4 x 0.6 mm in stainless steel.

Tubes

For cutting checker plates. For radial and interior cutouts.

Corrugated sheet metal

For cutting corrugated sheet metal. For radial and interior cutouts.

Checker plate

For cutting checker plates. For radial and interior cutouts.

Coil processing

For cutting coils. For relief cuts and sampling.

The following consumables and the corresponding accessories are included in the scope of delivery.

Straight cutter (integrated)
0.06 - 0.1 in
Cutting blades, 2 units
Set of 2 1275275
4 Ah 18V LiHD rechargeable battery (2 units)
1 unit 2598811
12V-36V recharger LG
1 unit, DE/CH version: 2569784 | 1 unit, GB version: 2569786 | 1 unit, USA version: 2569785
TRUMPF Box S2
1 unit 1763682

Find the right consumables and accessories for your machine here.

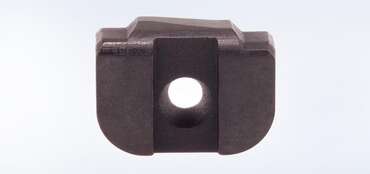

Cutter plate

1 unit  1267770
Cutter CR

Ideal for sheet thicknesses 0.02 - 0.06 in.

Set of 2  1279142
Set of 5  1279143

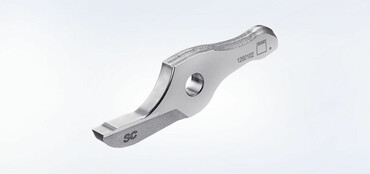

Cutter SC

Ideal for spiral ducts up to 4 x 0.035 in.

Set of 2  1279109
Set of 5  1279110

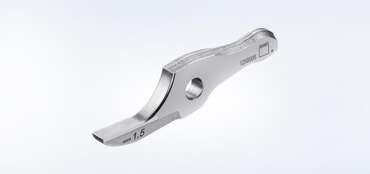

Straight cutter 0.02 -0.06 in.

Ideal for sheet thicknesses 0.02 - 0.06 in.

Set of 2  1279107
Set of 5  1279108
Curve cutter

Good curvability. For sheet thicknesses up to 0.02 - 0.06 in. Left 1.77 in. / right 3.15 in.

Set of 2  1279145
Set of 5  1279146

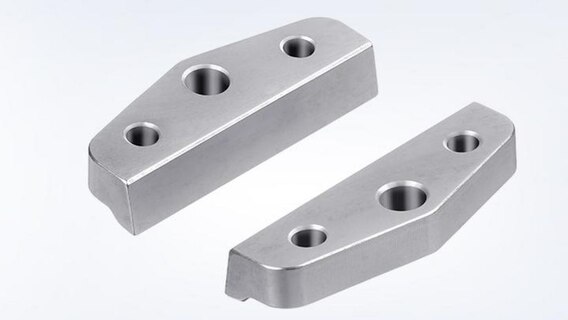

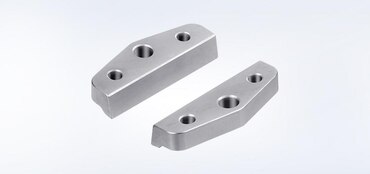

Cutting strip set

2 units with screws

Set of 1  1275275

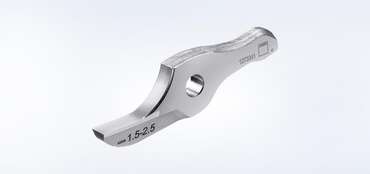

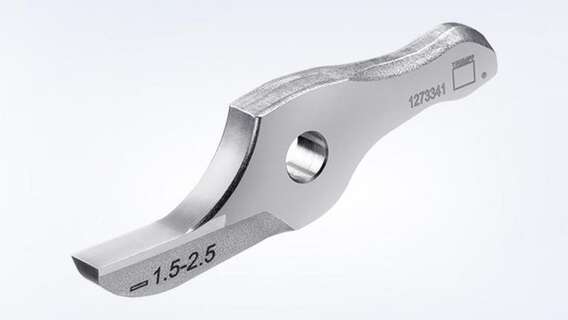

Straight cutter 0.06 - 0.1 in.

Ideal for sheet thicknesses 0.06 - 0.1 in.

Set of 2  1279105
Set of 5  1279106
18V starter kit

1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery

1 Set (DE)  2598816
1 set (GB)  2598820
1 Set (USA)  2598818
LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 unit (DE/CH)  2569784
1 unit (GB)  2569786
1 unit (USA)  2569785
18V LiHD 4.0Ah rechargeable battery

1 unit  2598811
TRUMPF Box S2

1 unit  1763682
Torx screwdriver

With T-handle TX20

1 unit  1775531

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This has a positive effect on the battery life and lets you get the most out of every battery charge. Additional advantage: The service life of a BL motor is almost unlimited because they work without carbon brushes and therefore no mechanical friction occurs. The result: almost wear-free motors and hardly any maintenance.

Compact and powerful

The 18V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

TruTool C 250 with chip clipper, 18V LiHD rechargeable battery
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 2.5 mm
Maximum sheet thickness, steel 600 N/mm² 1.5 mm
Maximum sheet thickness, aluminium up to 250 N/mm² 3 mm
Spiral duct steel 400 N/mm² 4 x 0.9 mm
Spiral duct steel 600 N/mm² 4 x 0.6 mm
Radii
Smallest radius L 45 mm / R 80 mm
General
Working speed (max.) 10 m/min
Starting hole diameter 22 mm
Voltage 18 V
Dimensions
Length 398 mm
Height 119 mm
Weight
Weight (incl. rechargeable battery) 2.5 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
