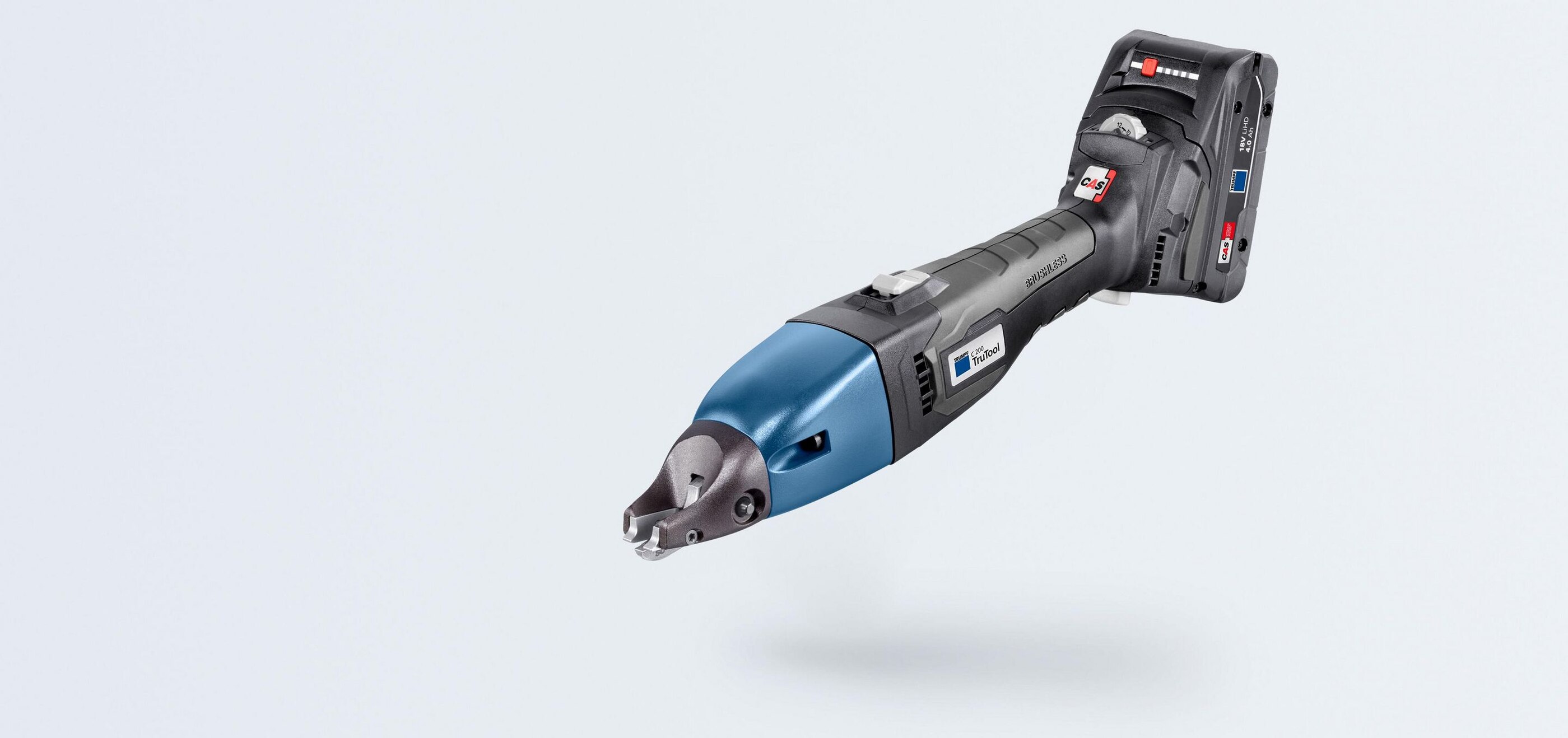

TruTool C 200 18V LiHD rechargeable battery

TruTool C 200 18V LiHD rechargeable battery

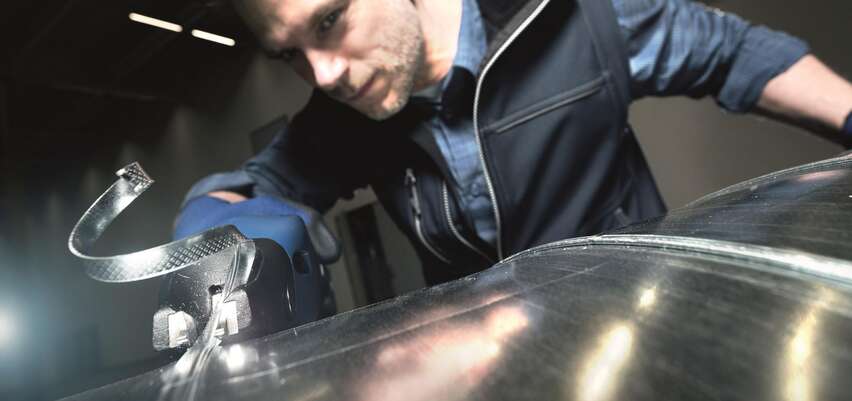

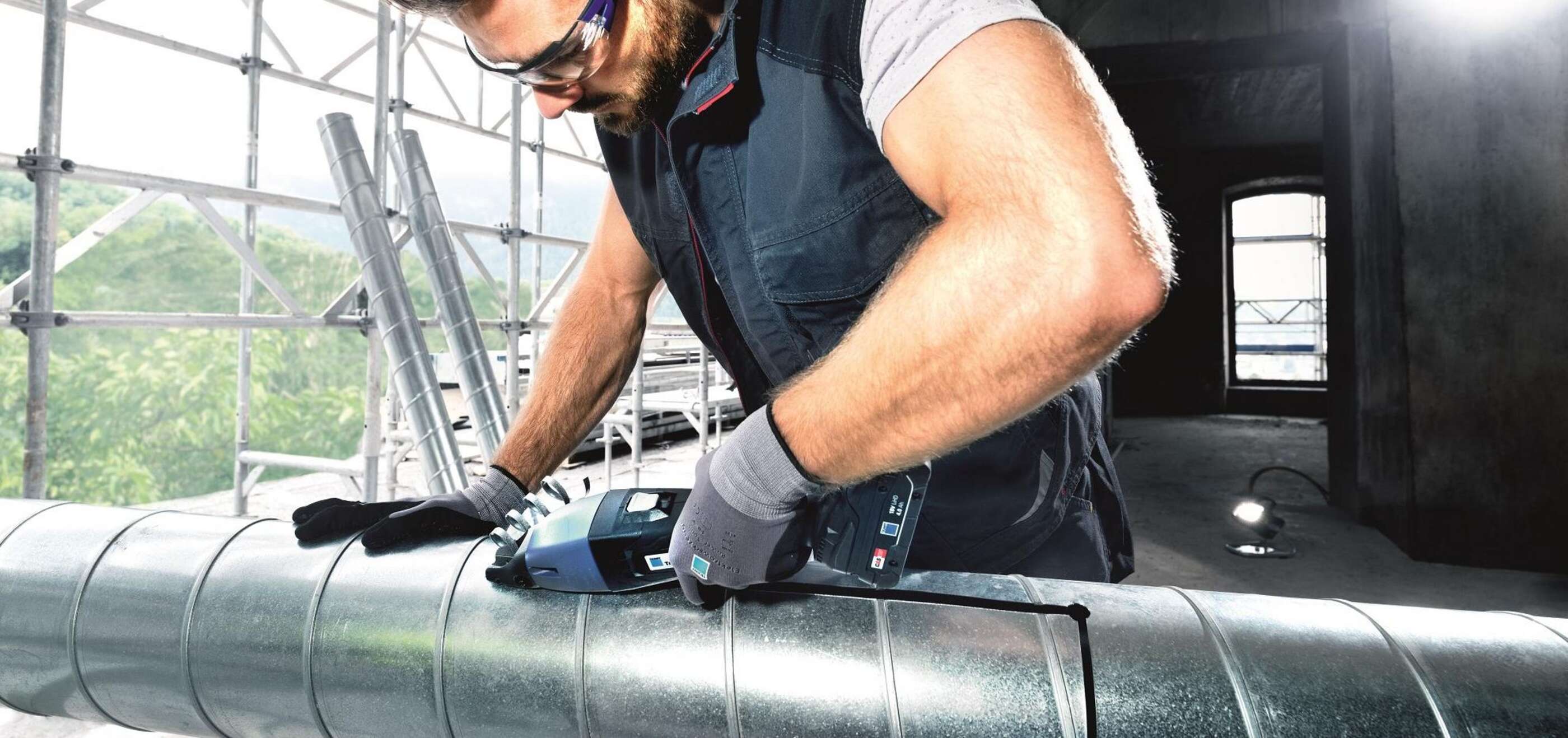

Exceptionally good for cutting spiral ducts.

TruTool C 200 18V LiHD rechargeable battery

Perfectly suited to C-L-U profiles.

TruTool C 200 18V LiHD rechargeable battery

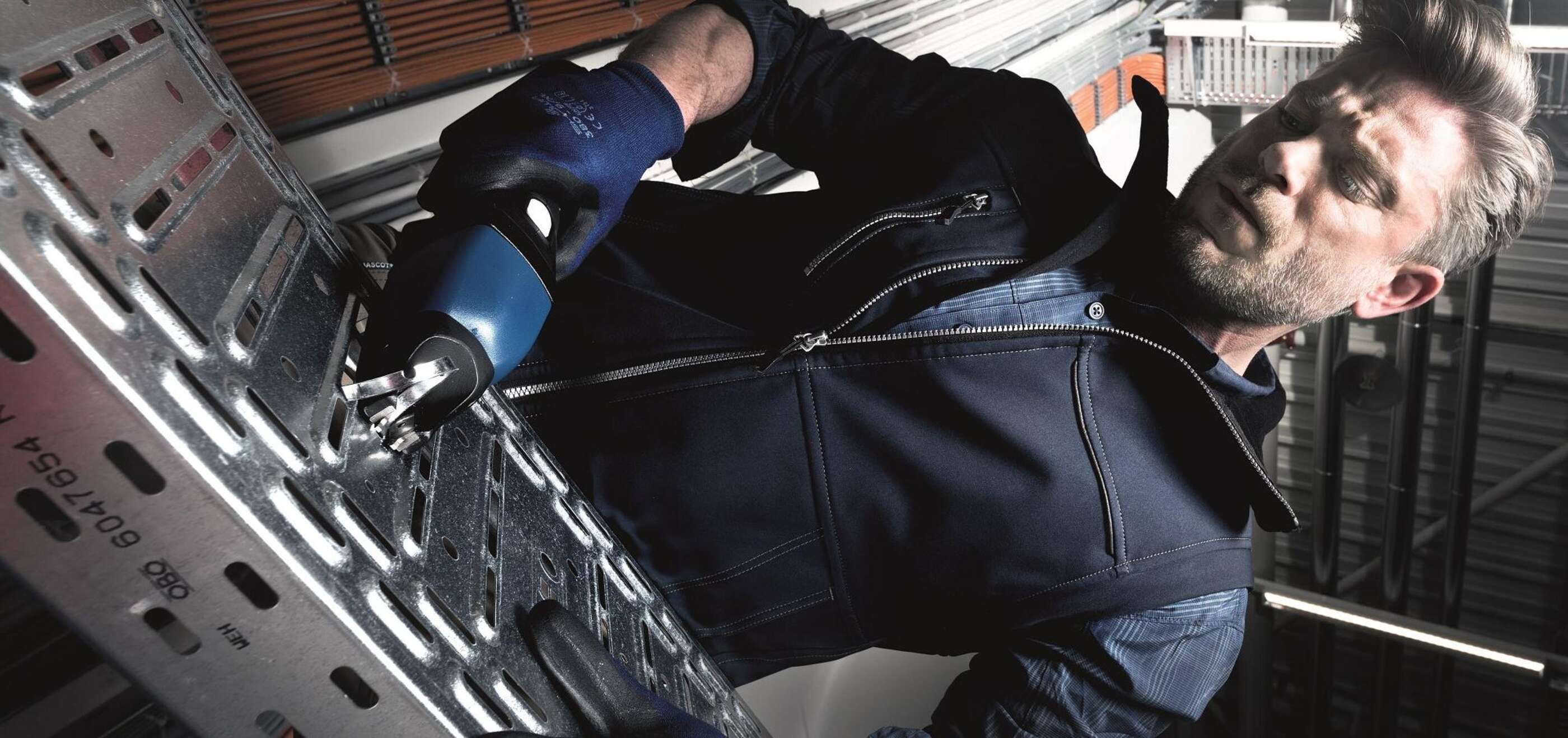

Even cuts cable ducts

Specialized for versatile applications

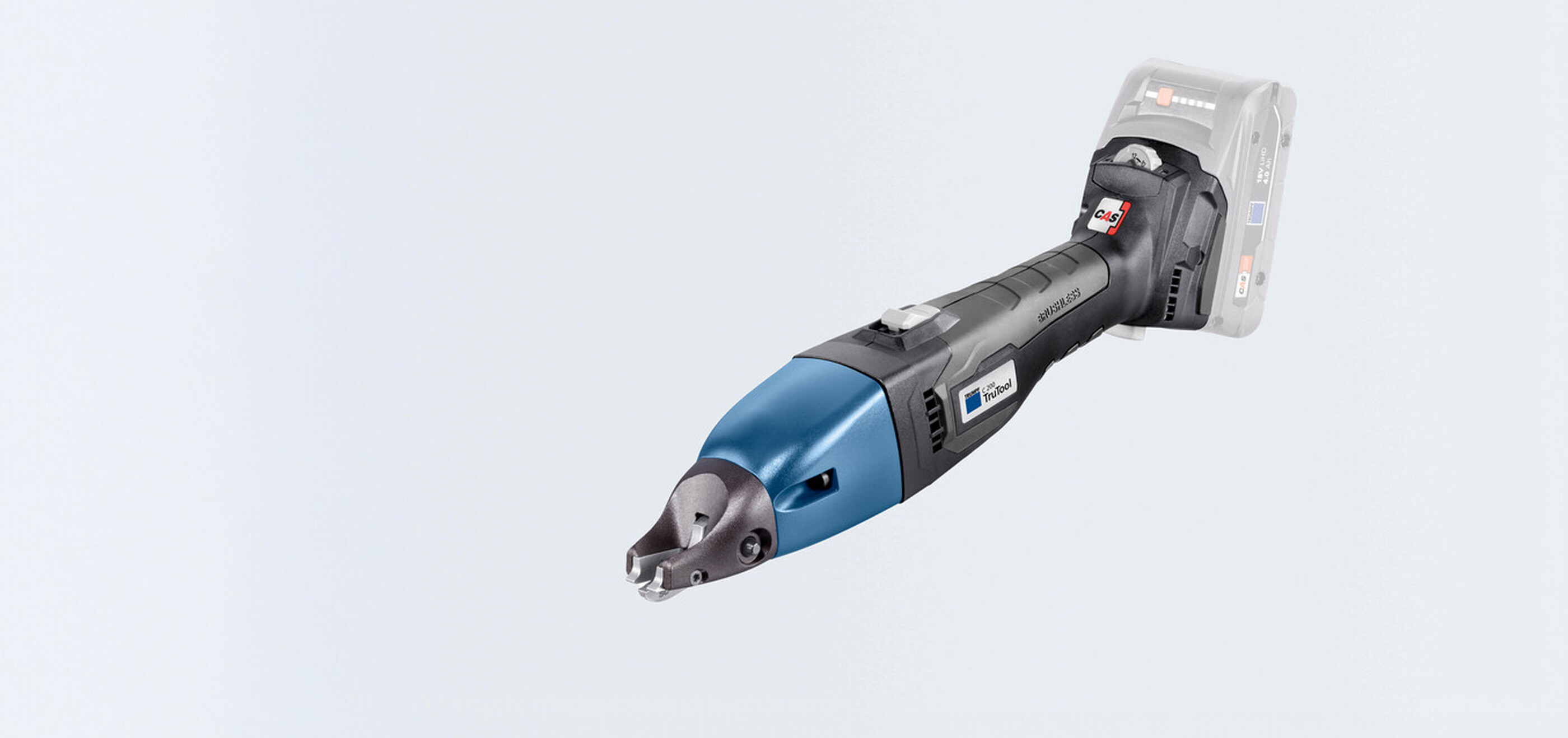

The TruTool C 200 18V LiHD rechargeable battery features an open cutting head. This allows you to pull the machine out of the sheet easily. A chip clipper is not necessary. The steel cutting head is powerful and robust. You can achieve an extraordinary amount of power when cutting spiral ducts. The tool set used for spiral ducts, which consists of toothed cutting blades and a robust SC cutter, is capable of fold thicknesses of up to 3.6 mm with mild steel and enables both longitudinal sections and cross-sections. To broaden the range of applications, we have 5 further sets. This enables you to place the focus on cutting quality, speed, performance on curves, or the material. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes.

Cordless Alliance System

Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility in the 18-volt class.

Brushless motor

Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.

Perfectly combined

Three different cutting blades combined with the right cutter ensure even greater specialization.

Extremely powerful

The 18 V battery machine separates mild steel sheet thicknesses of up to 2 mm, fold thicknesses up to 3.6 mm, and even stainless steel sheets up to 1.5 mm.

Nice and easy: without chip clipper

The open cutting head enables you to pull the machine easily out of the sheet.

For comfortable operation

A soft grip ensures low-vibration machine control. The machine is thereby extremely compact and light.

TruTool C 200 Li-ion: video on the area of application
TruTool C 200 18V LiHD rechargeable battery

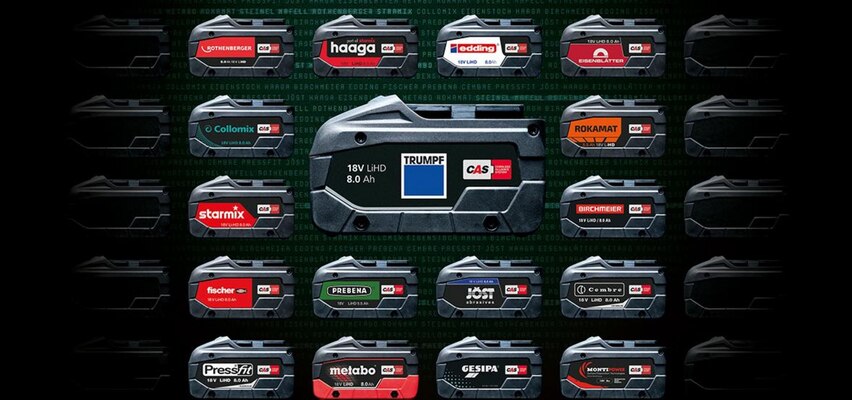

Cordless Alliance System

This product is part of the Cordless Alliance System. CAS means one battery for everything, 100% compatibility for machines, rechargeable battery packs and rechargers. The world's most powerful battery system with 30 years of battery expertise from Metabo. Maximum reliability, clear cost benefits and a sound investment.

Battery technology

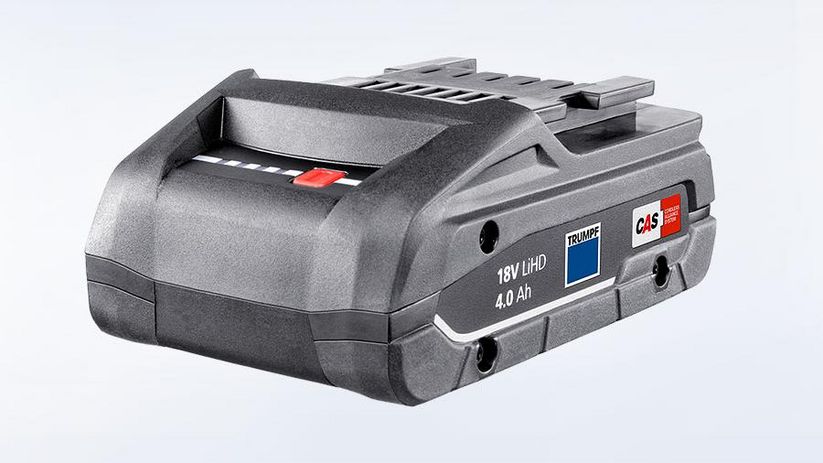

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. The cells are protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. The result: high-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection.

The perfect solution for every application

We offer you six different sets, consisting of cutting blades and cutters: The Set Spiro is perfect for cutting spiral ducts and can even cut sheet thicknesses of up to 3.6 mm for a short period in this area. The Set HighSpeed enables you to process sheet thicknesses of 1.5 – 2 mm. The focus here is on speed, with a slightly reduced cutting quality. If you are cutting visible edges, we recommend the Set HighQuality for 1.5 – 2 mm or the Set ThinSheet for up to 1.5 mm. Use the Set CR if the focus is on processing stainless steel, and the Set Curves for tight curves and radii from R 45 / L 80.

Spiral ducts

For cutting spiral ducts. Cuts in all directions, even over folds.

Flat sheet

For cutting and trimming flat sheets. For radial and interior cutouts as well as notching.

Profiles

For cutting C-L-U profiles and longitudinal cuts in profile sheets.

Tubes

For cutting tubes.

Rice grain sheet

For cutting rice grain sheets. For radial and interior cutouts.

Checker plate

For cutting checker plates. For radial and interior cutouts.

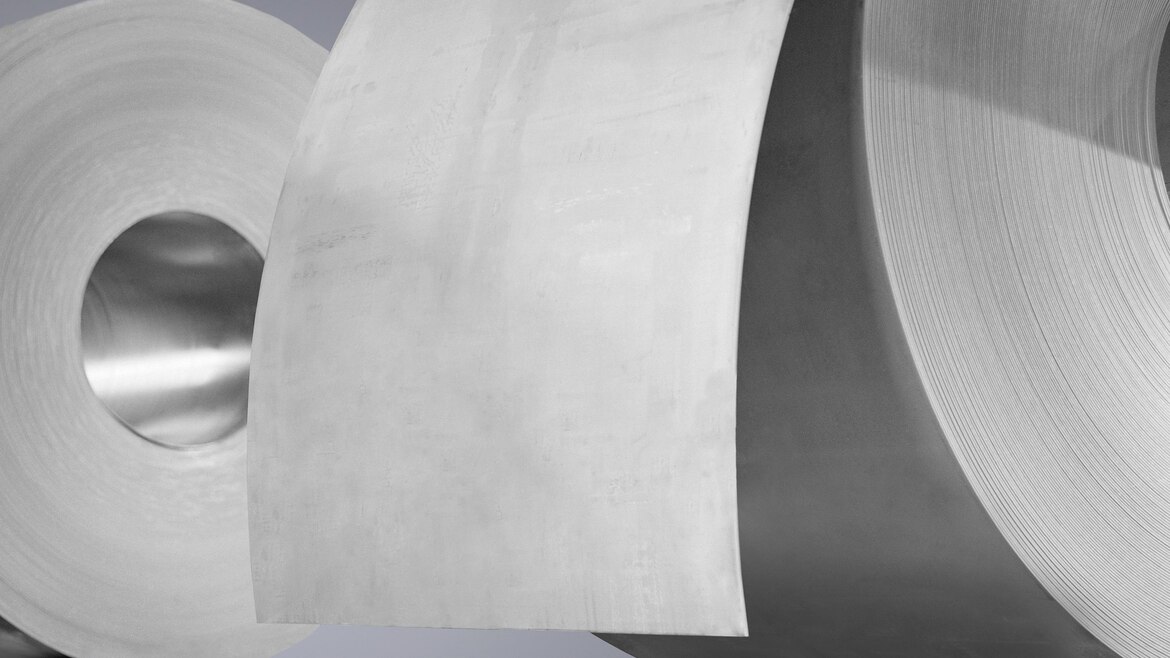

Coil processing

For cutting coils. For relief cuts and sampling.

The following consumables and the corresponding accessories are included depending on the machine.

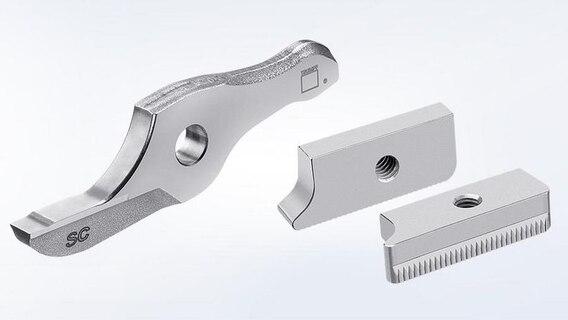

Set Spiro (fitted)
1x SC cutter, 2x toothed cutting blade
18V LiHD 4 Ah rechargeable battery (2 units)
1 unit 2598811
12V-36V recharger LG
1 unit, DE/CH version: 2569784 | 1 unit, GB version: 2569786 | 1 unit, USA version: 2569785
TRUMPF Box S2
1 unit 1763682

Find the right consumables and accessories for your machine here.

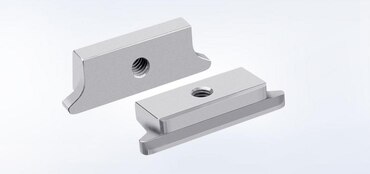

Standard cutting blade 1.5-2 mm

Ideal for sheet thicknesses 1.5 mm - 2 mm

Set of 1  2332028

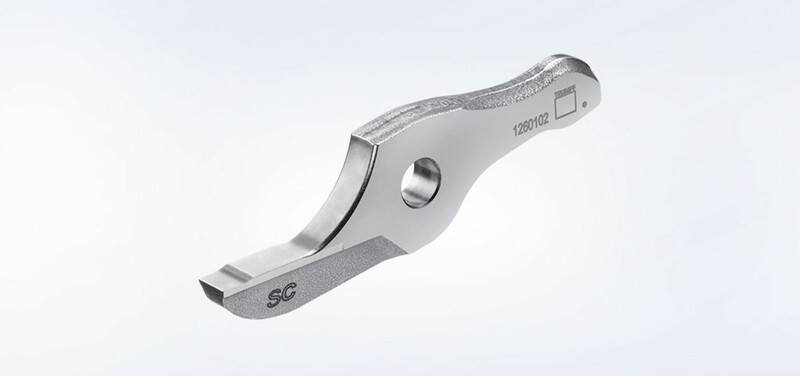

Cutter SC

Ideal for spiral ducts up to 4 x 0.035 in.

Set of 2  1279109
Set of 5  1279110

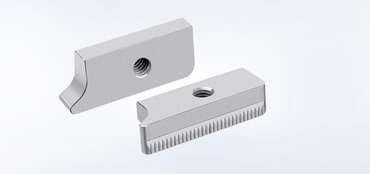

Toothed cutting blade

Ideal for spiral ducts up to 4 mm x 0.9 mm

Set of 1  2332027

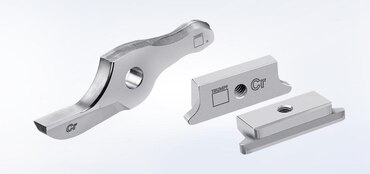

Set CR

1x CR cutter, 2x CR cutting blade

Set of 1  2328886

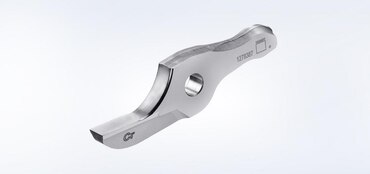

Cutter CR

Ideal for sheet thicknesses 0.02 - 0.06 in.

Set of 2  1279142
Set of 5  1279143

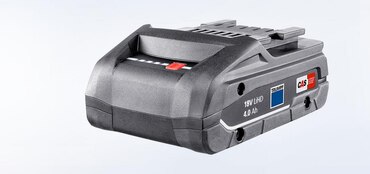

18V LiHD 4.0Ah rechargeable battery

1 unit  2598811

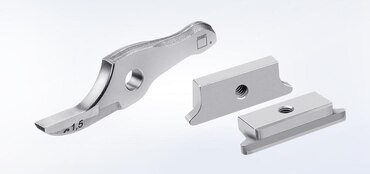

Set Curves

1x curves cutter, 2x cutting blade

Set of 1  2328887
Set HighQuality

1x straight cutter, 2x cutting blade

Set of 1  2328883

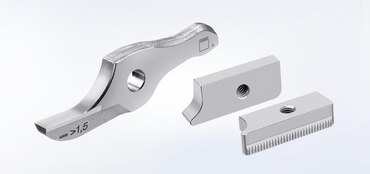

Set HighSpeed

1x cutter, 2x toothed cutting blade

Set of 1  2328884
Curve cutter

Good curvability. For sheet thicknesses up to 0.02 - 0.06 in. Left 1.77 in. / right 3.15 in.

Set of 2  1279145
Set of 5  1279146

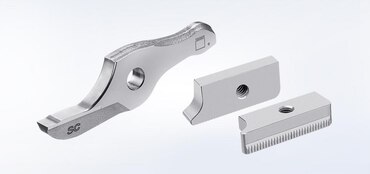

Set Spiro

1x SC cutter, 2x toothed cutting blade

Set of 1  2328882

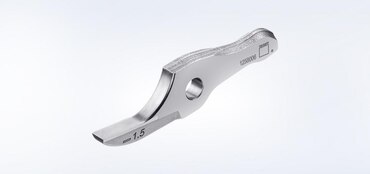

Straight cutter 0.02 -0.06 in.

Ideal for sheet thicknesses 0.02 - 0.06 in.

Set of 2  1279107
Set of 5  1279108
18V starter kit

1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery

1 Set (DE)  2598816
1 set (GB)  2598820
1 Set (USA)  2598818
LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 unit (DE/CH)  2569784
1 unit (GB)  2569786
1 unit (USA)  2569785

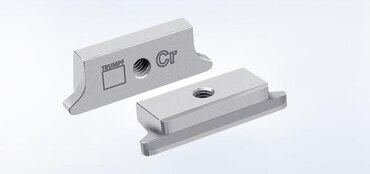

Cutting blade CR up to 1.5 mm

Ideal for sheet thicknesses up to 1.5 mm

Set of 1  2361121

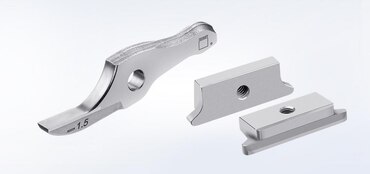

Set ThinSheet

1x straight cutter, 2x cutting blade

Set of 1  2328885
Straight cutter 1.5 - 2 m

Ideal for sheet thicknesses 1.5 mm - 2 mm

Set of 2  2365673
Set of 5  2365674
TRUMPF Box S2

1 unit  1763682

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.

Compact and powerful

The 18V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

Perfectly combined

With the TruTool C 200, both the cutters and the cutting blades are adapted to the respective application. The toothed cutting blade achieves an automatic feed and reduces the feed force. This results in exceptionally high working speeds and simple processing of double sheets. With the standard cutting blade, the cutting quality takes precedence over the cutting speed. The CR cutting blade is used to process stainless steel. We offer the different cutting blades with matching cutters in six sets: Set Spiro, Set HighQuality or HighSpeed up to 2 mm, Set ThinSheet up to 1.5 mm, and the Set Curves and Set CR.

TruTool C 200 18V LiHD rechargeable battery
Maximum sheet thicknesses
Spiral duct steel 400 N/mm² 4 x 0.9 mm
Spiral duct steel 600 N/mm² 4 x 0.6 mm
Radii
Smallest radius L 40 mm / R 50 mm
General
Working speed (max.) 10 m/min
Starting hole diameter 8 mm
Voltage 18 V

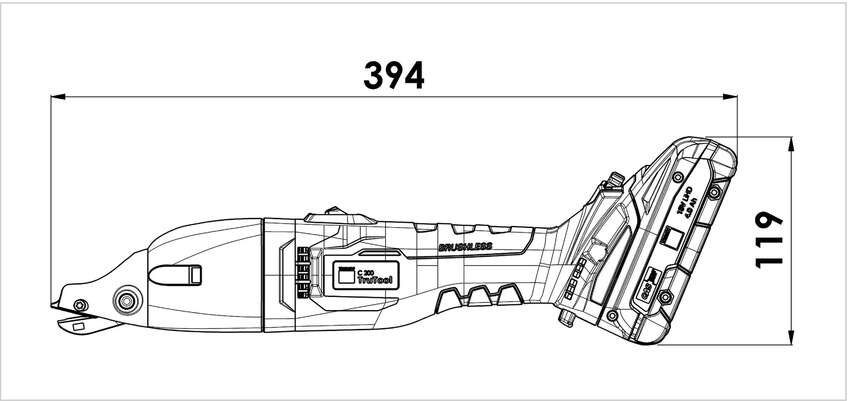

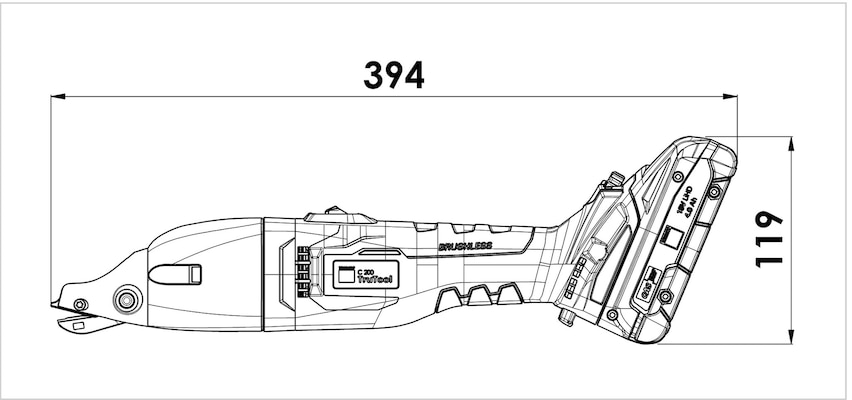

Dimensions
Length 394 mm
Height 119 mm
Weight
Weight (incl. rechargeable battery) 2.4 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.

You may also find these topics interesting

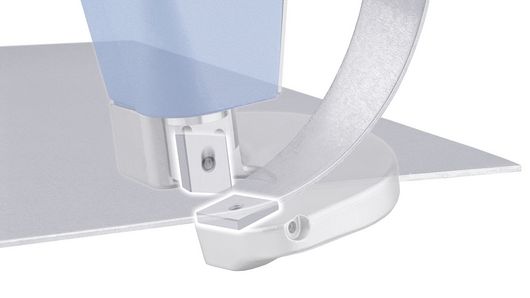

Shear cutting process
