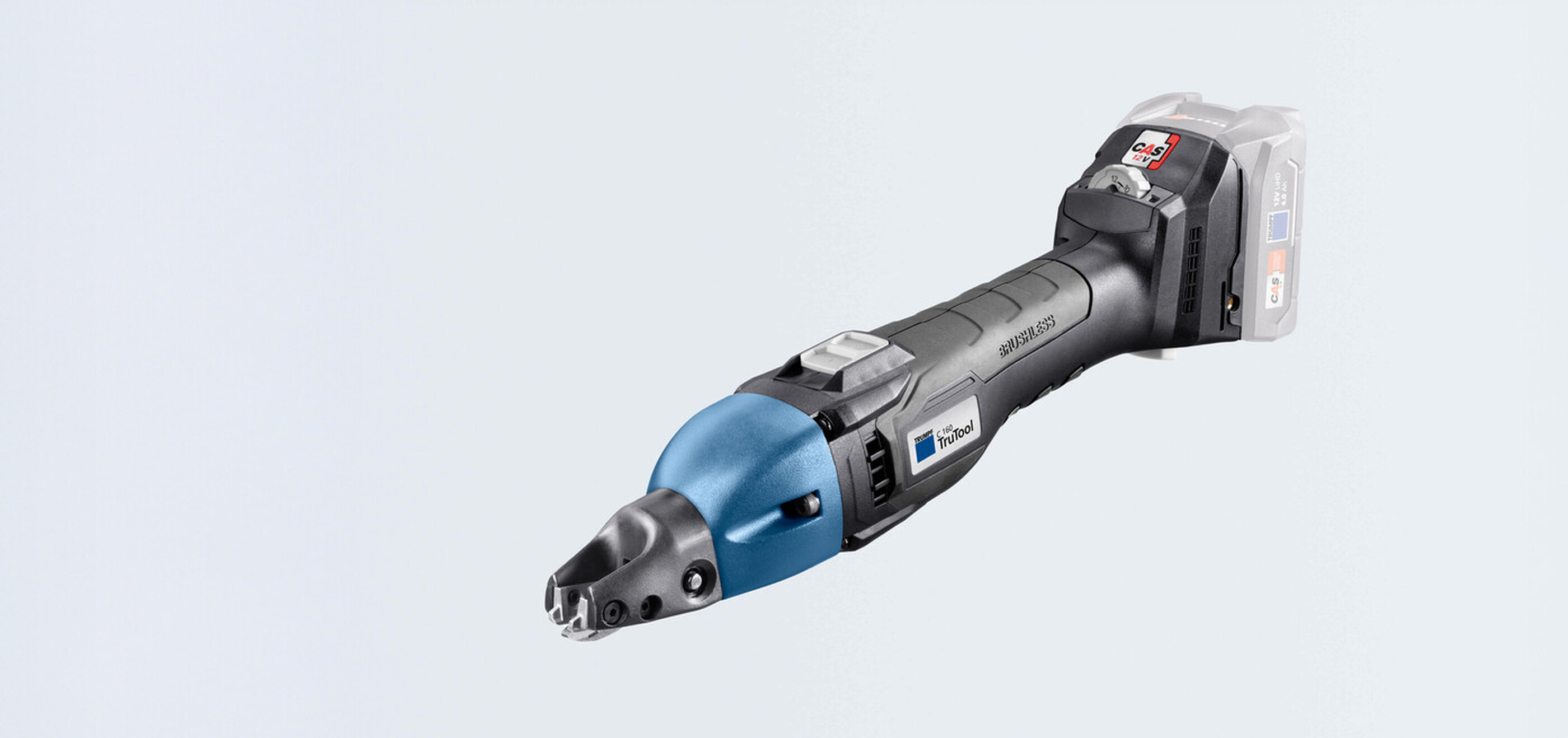

TruTool C 160 12V LiHD rechargeable battery

For cutting coils and for relief cuts

REQUEST A QUOTE

Overview

Applications

Scope of delivery

Accessories

Customer benefits

Technical data

Battery machine for precise cuts

The 12V battery machine without chip clipper is particularly well-suited to cutting tasks without chip clipping during the cutting process. For example if you are cutting straight sheets to length or for curved cutting. We have different blades available to match the application. The 4.0 Ah / 12V LiHD rechargeable battery also ensures long runtimes.

Just right

Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.

Brushless motor

Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.

Easy and safe operation

A soft grip ensures a secure hold and enables low-vibration operation.

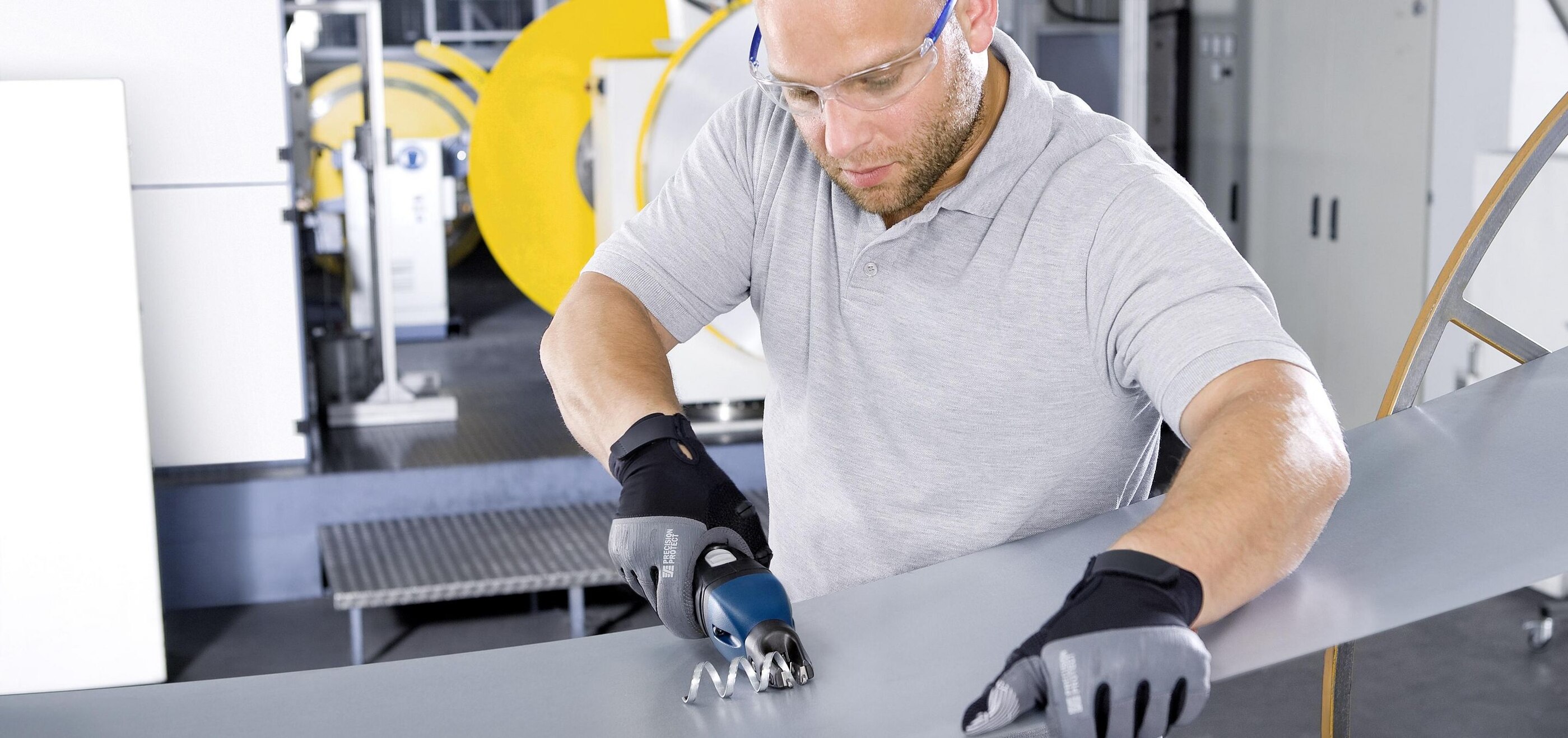

Ideal for trimming to length

Well-suited for straight, distortion-free cuts and C-L-U profiles.

Slitting shears: Video on the area of application

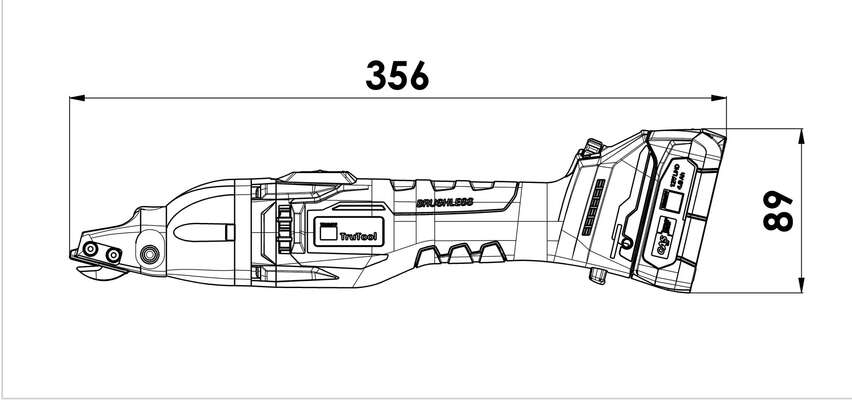

TruTool C 160 12V LiHD rechargeable battery, dimensional drawing

Leading

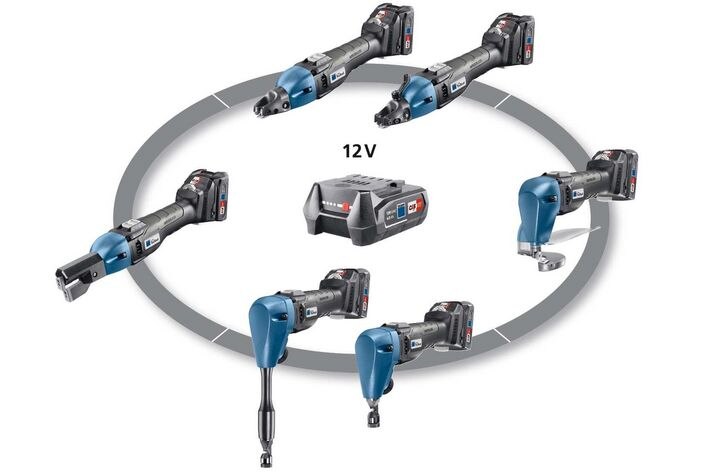

The world's most powerful battery technology with 30 years of battery expertise from Metabo. Full compatibility within the 12V class – also with CAS partner machines. Universal recharger, regardless of whether you use 12V, 18V or 36V CAS rechargeable batteries.

Battery technology

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. The cells are protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. The result: high-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection.

For any application

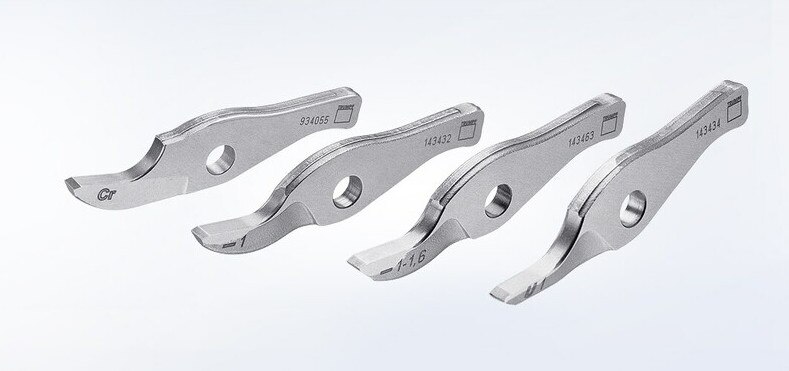

We offer 4 different cutters to suit particular applications: The CR cutter is ideal for processing stainless steel. The curve cutter cuts with excellent contouring. There are two different cutters for straight cuts: one cutter for processing thin sheets of up to 0.04 in and one for use on sheet thicknesses of 0.04 - 0.06 in. A quick-release locking bolt enables you to change the cutter quickly and easily without the need for tools.

Flat sheet

For cutting and trimming flat sheets. For radial and interior cutouts as well as notching.

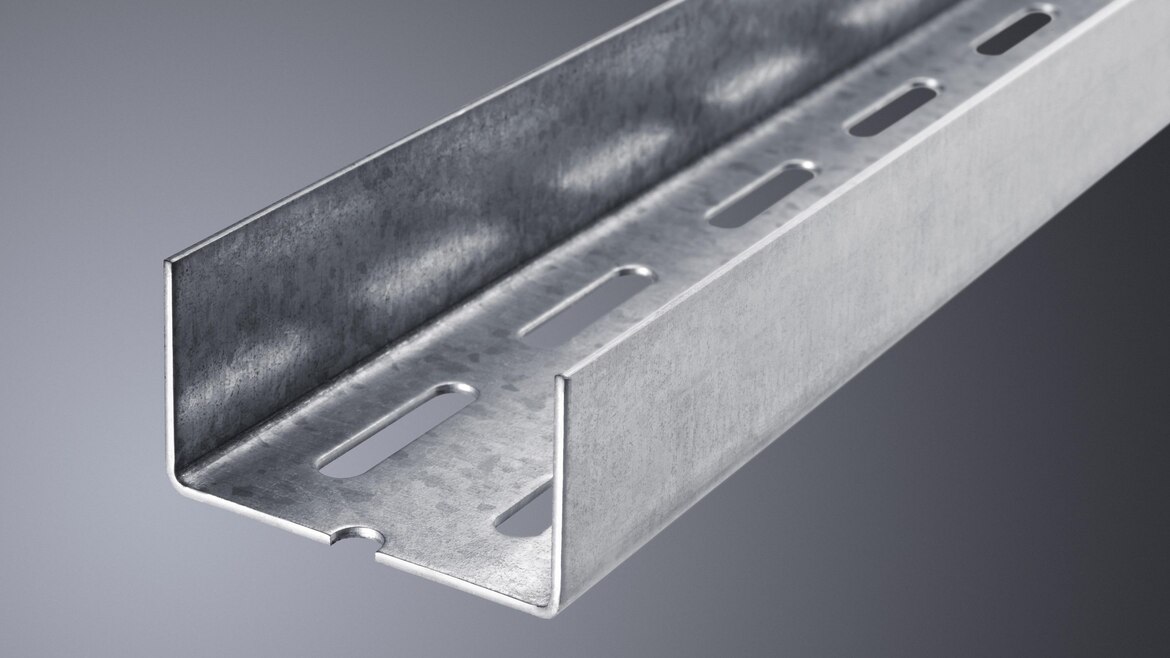

Profiles

For cutting C-L-U profiles and longitudinal cuts in profile sheets.

Tubes

For cutting tubes.

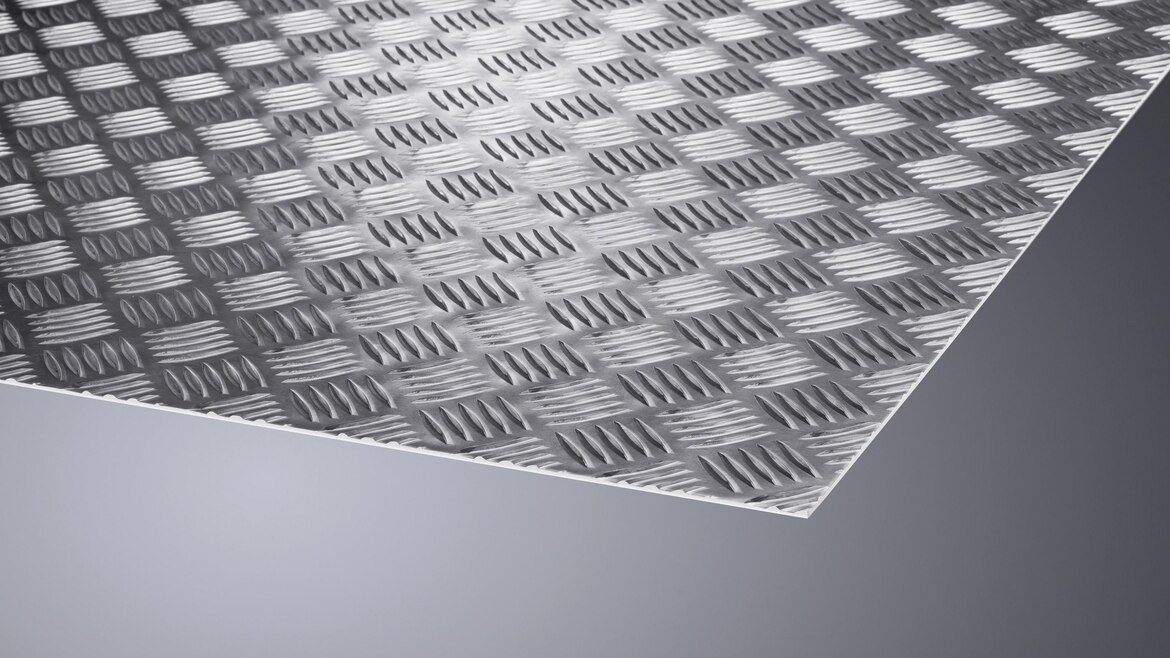

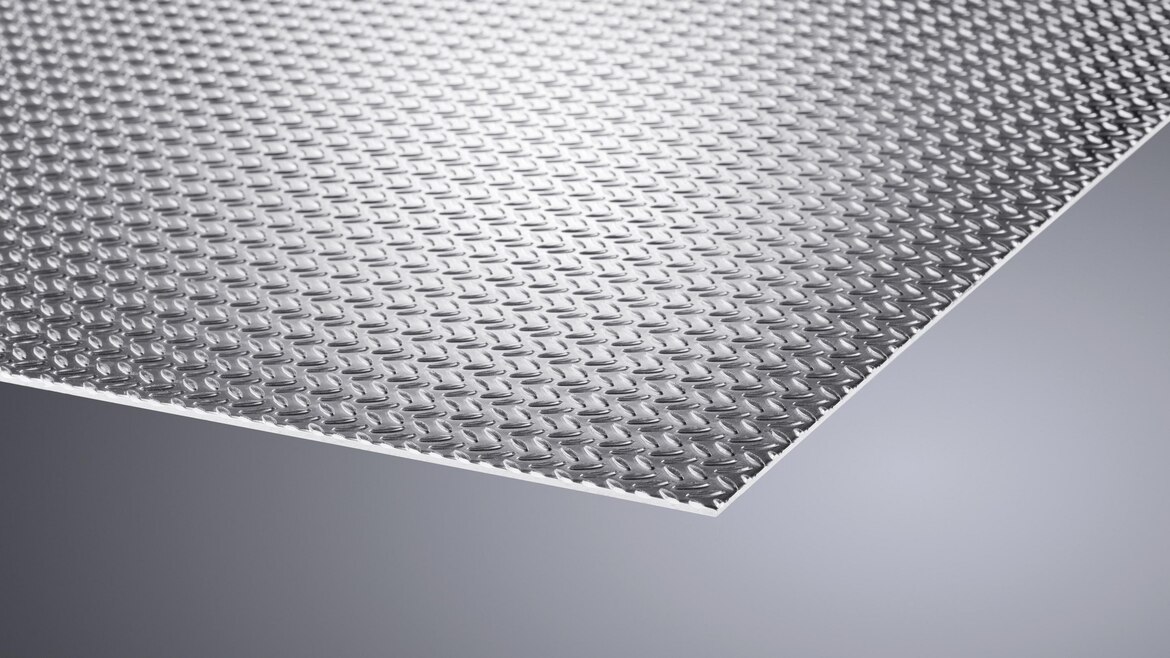

Diamond plate

For cutting diamond plates. For radial and interior cutouts.

Corrugated sheet metal

For cutting corrugated sheet metal. For radial and interior cutouts.

The following consumables and the corresponding accessories are included in the scope of delivery.

Cutting strip set, 2 units with screws (integrated)

Set of 2 0927708

Straight cutter (integrated)

0.039 - 0.063 in

Allen key DIN 911-2.5

1 unit 0067822

12V-36V recharger LG

1 unit, Version DE / CH: 2569786 | 1 unit, Version GB: 2569785 | 1 unit, Version USA: 2569784

Belt clip

1 unit 2579850

TRUMPF Box S2

1 unit 1763682

Find the right consumables and accessories for your machine here.

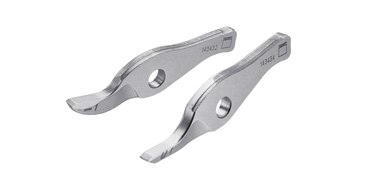

Cutter set

1 x straight cutter 0.039 in., 1 x curve cutter

Set of 1 0913521

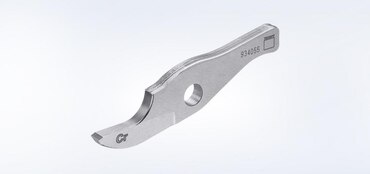

Cutter CR

Ideal for stainless steel and spiral ducts

Set of 2 1264346

Set of 5 1264347

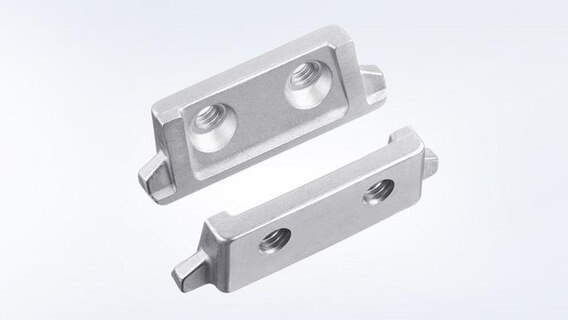

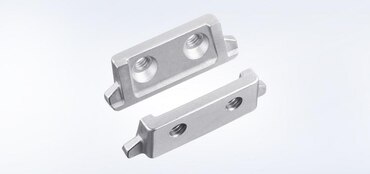

Cutting strip set

2 units with screws

Set of 2 0927708

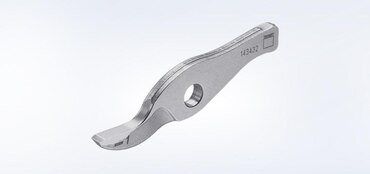

Straight cutter up to 0.039 in.

Ideal for sheet thicknesses up to 0.039 in.

Set of 5 1264357

Set of 2 1264356

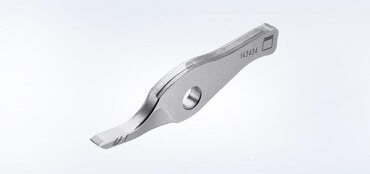

Curve cutter

Good performance cutting curves. For sheet thicknesses up to 0.039 in.

Set of 2 1264358

Set of 5 1264359

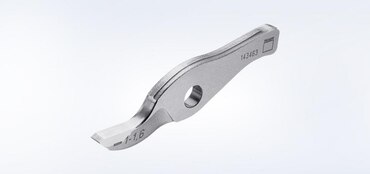

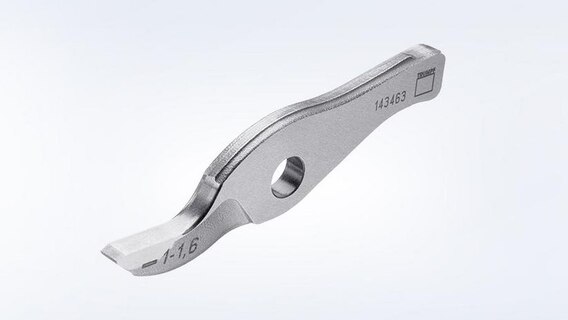

Straight cutter 0.039 - 0.063 in.

Ideal for sheet thicknesses of 0.039 - 0.063 in.

Set of 2 1264343

Set of 5 1264345

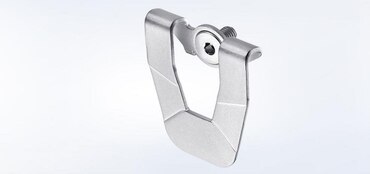

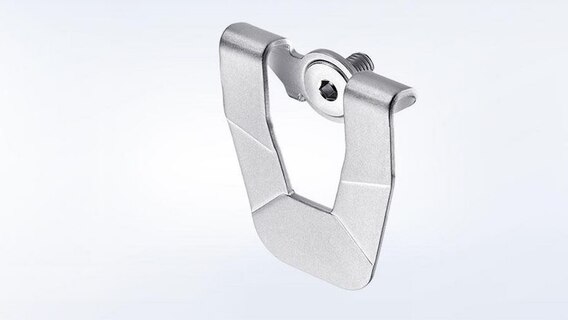

Belt clip

Suitable for the 12V LiHD battery machines

1 unit 2599016

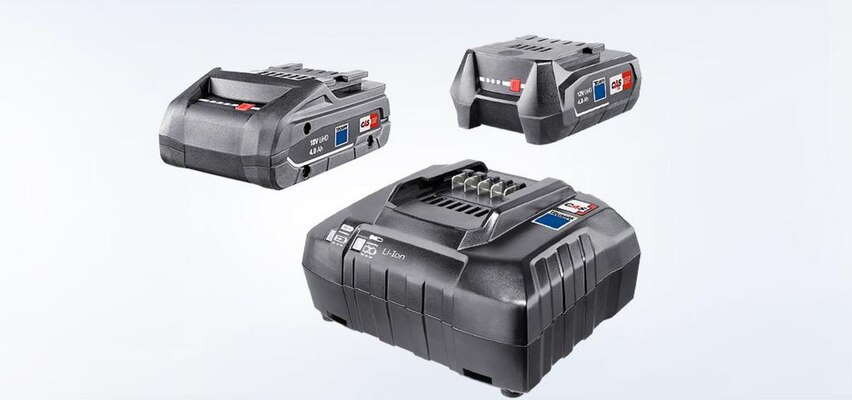

12V starter kit

1x LG 12V-36V recharger / 2x 12V LiHD 4.0 Ah rechargeable battery

1 Set (DE) 2598815

1 Set (GB) 2598819

1 Set (USA) 2598817

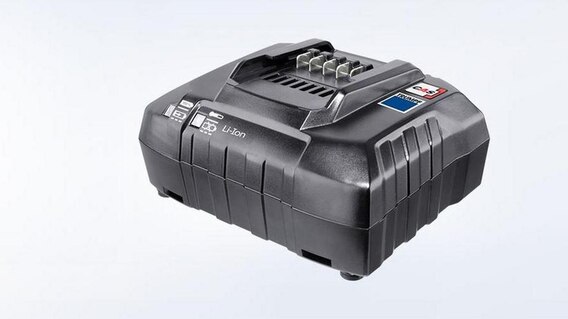

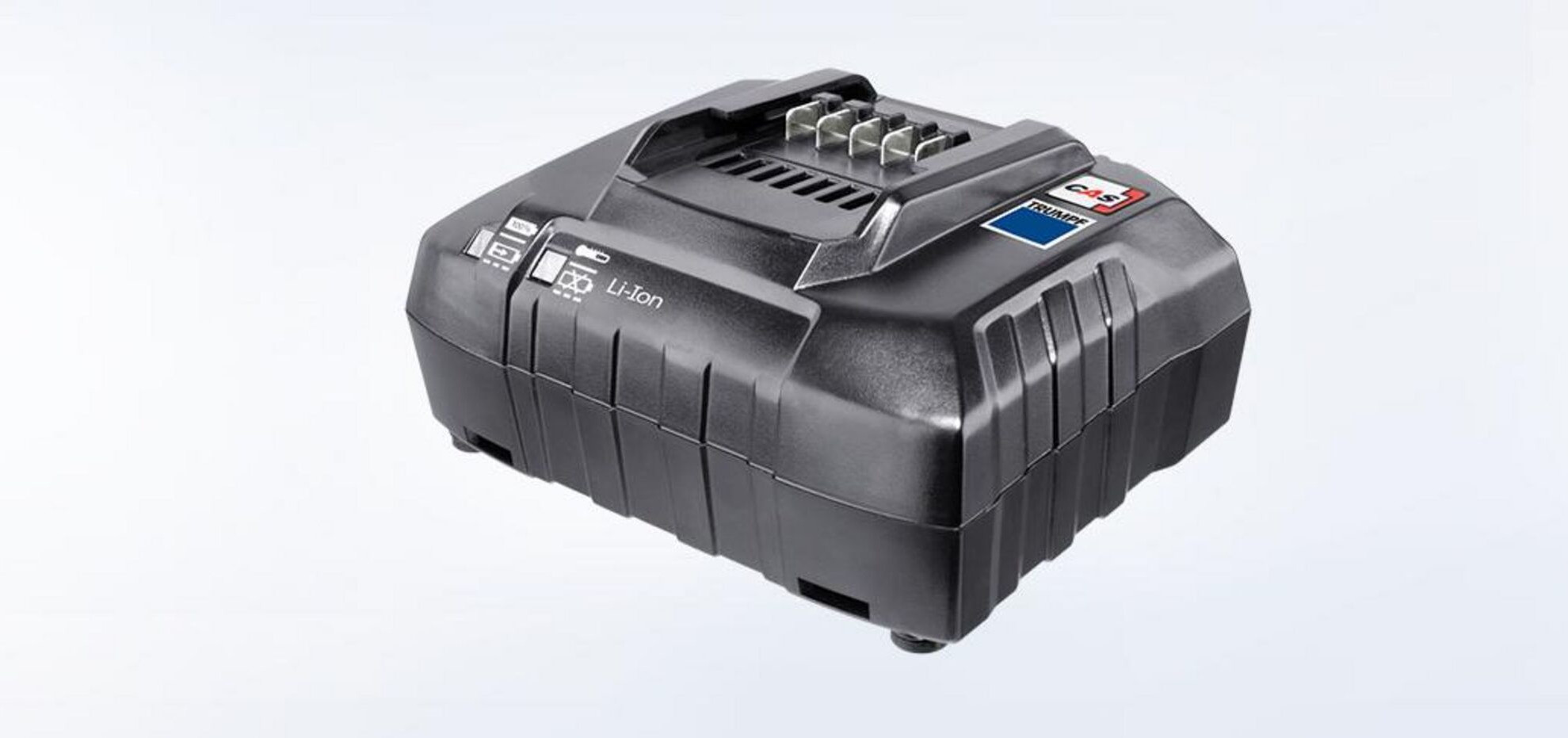

LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 unit (DE/CH) 2569784

1 unit (GB) 2569786

1 unit (USA) 2569785

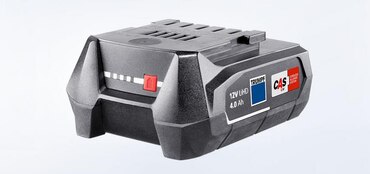

12V LiHD 4.0Ah rechargeable battery

1 unit 2598770

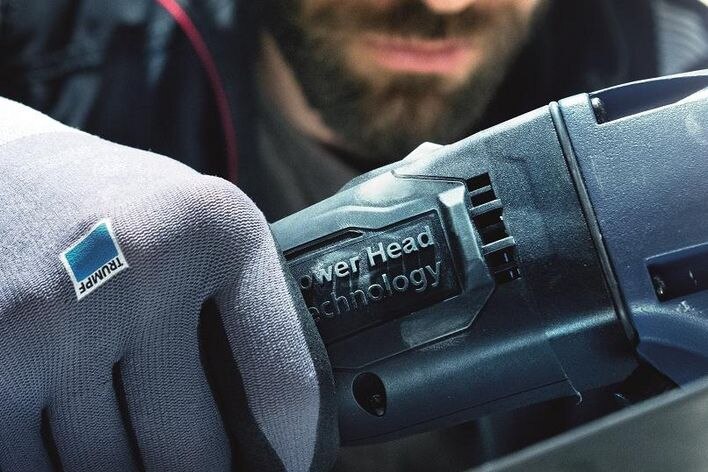

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

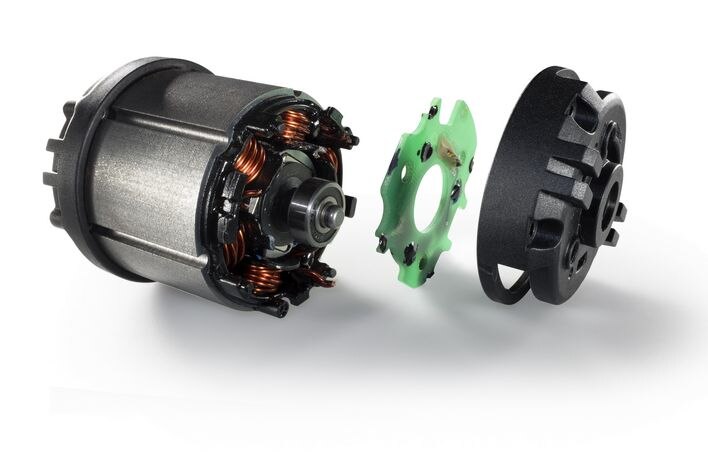

Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.

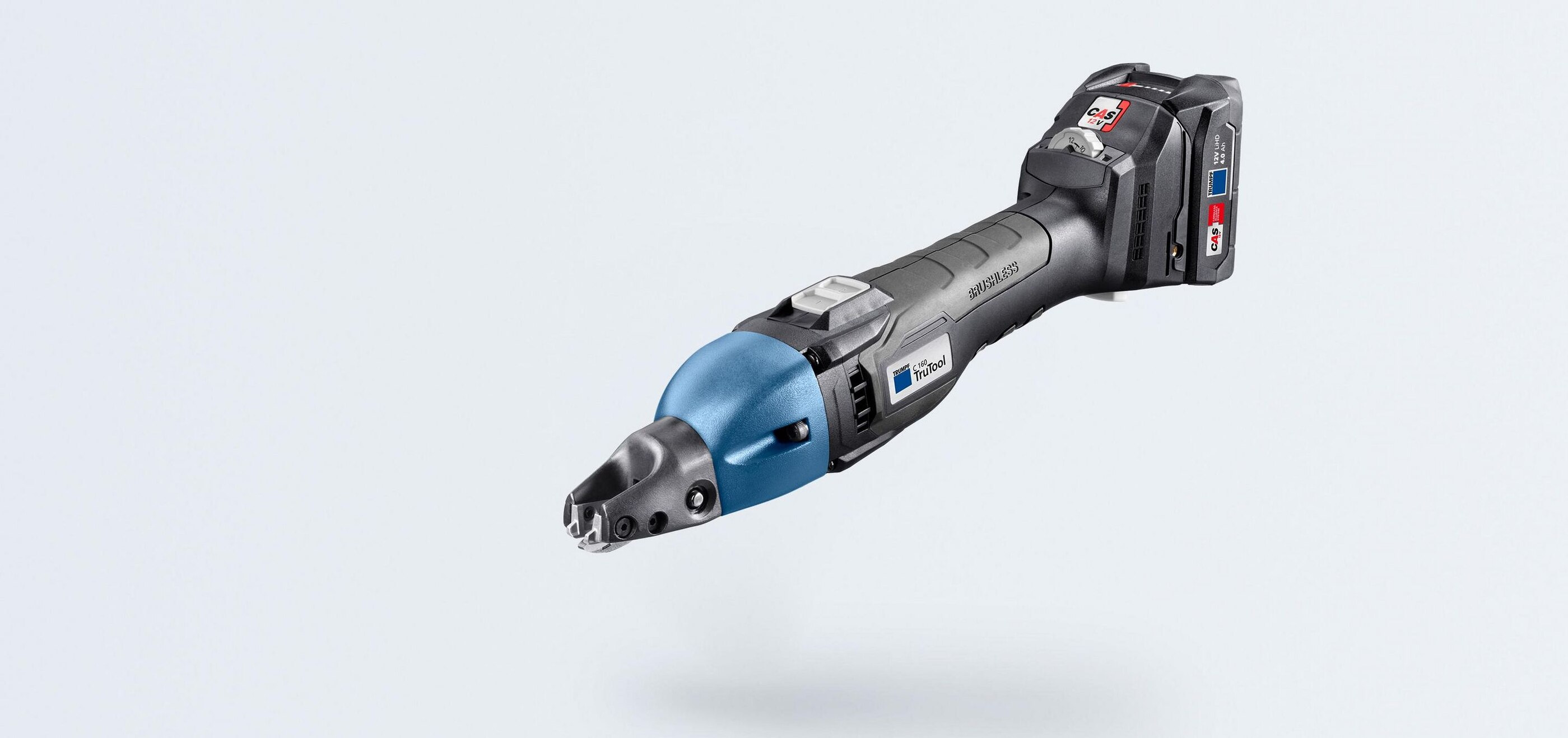

Small and handy

The 12V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

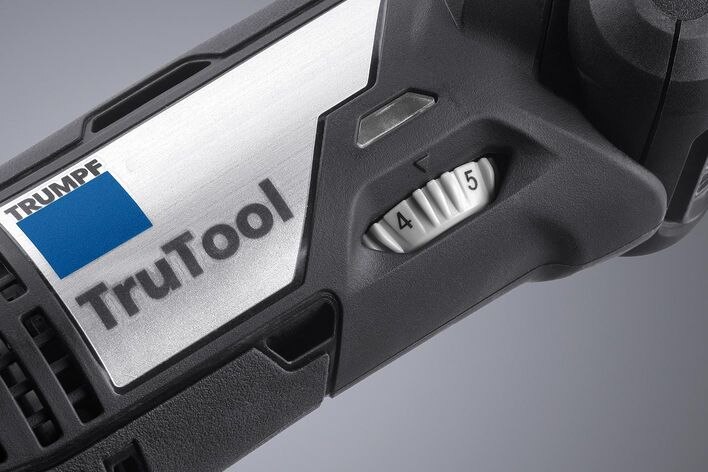

Optimal working speed

You can use the speed control to adjust the working speed to suit the individual cutting task. This provides a variable cutting speed of up to 29.5 feet per minute. The speed control is highly efficient for work with scribed lines or with a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

	TruTool C 160 12V LiHD rechargeable battery
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm²	1.6 mm
Maximum sheet thickness, steel 600 N/mm²	1.2 mm
Maximum sheet thickness, aluminium up to 250 N/mm²	2 mm
Spiral duct steel 400 N/mm²	4 x 0.75 mm
Radii
Smallest radius	L 48 mm / R 40 mm
General
Working speed (max.)	9 m/min
Starting hole diameter	15 mm
Voltage	12 V
Dimensions
Length	357 mm
Height	88 mm
Weight
Weight (incl. rechargeable battery)	1.6 kg

PDF <1MB

Technical data sheet

The technical data of all product versions as a download.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.

You may also find these topics interesting

Construction industry

Robust and durable – TRUMPF's power tools for metal processing and its generators for glass coating are tailored to the industry.

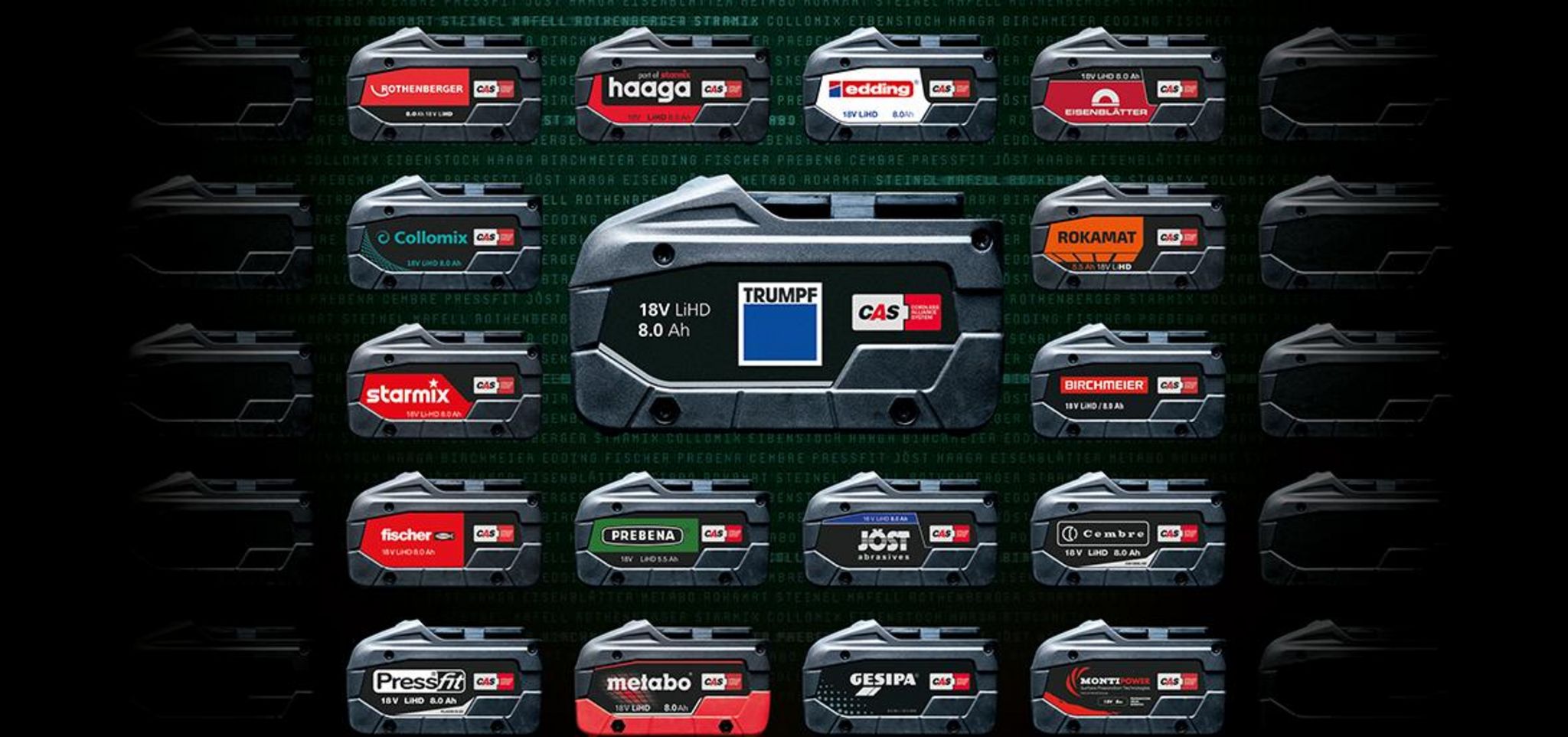

Cordless Alliance System

Cross-manufacturer rechargeable battery system for leading power tool manufacturers. One rechargeable battery for everything, 100% compatibility for machines, rechargeable battery packs and rechargers – regardless of manufacturer. The world's most powerful battery system with 30 years of battery expertise from Metabo. Maximum reliability, clear cost benefits and a sound investment.

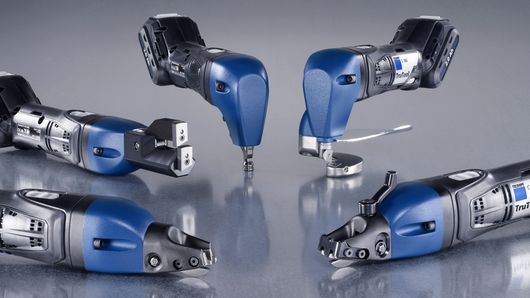

Image of the technology inside the TRUMPF battery-powered machines
