Slat cleaner

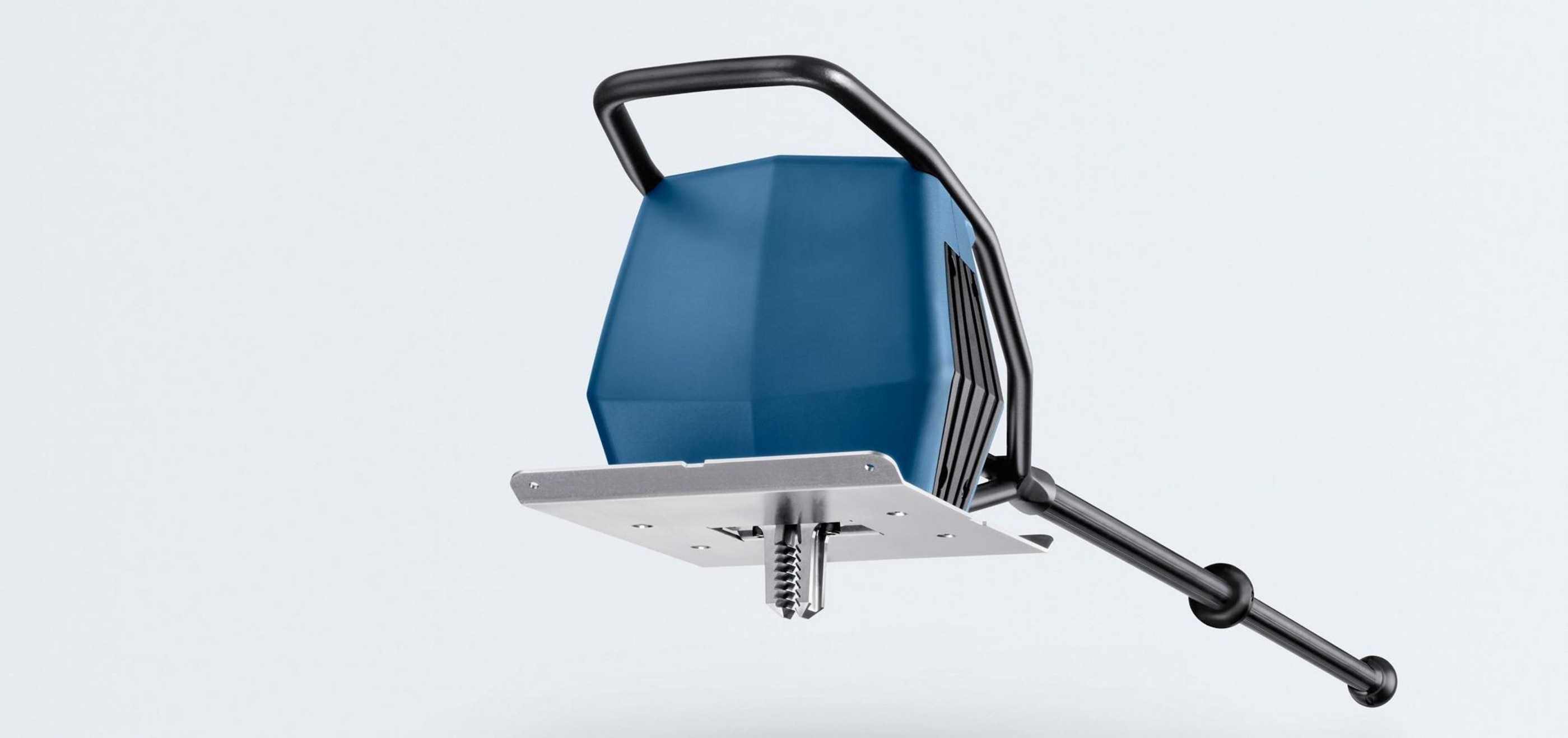

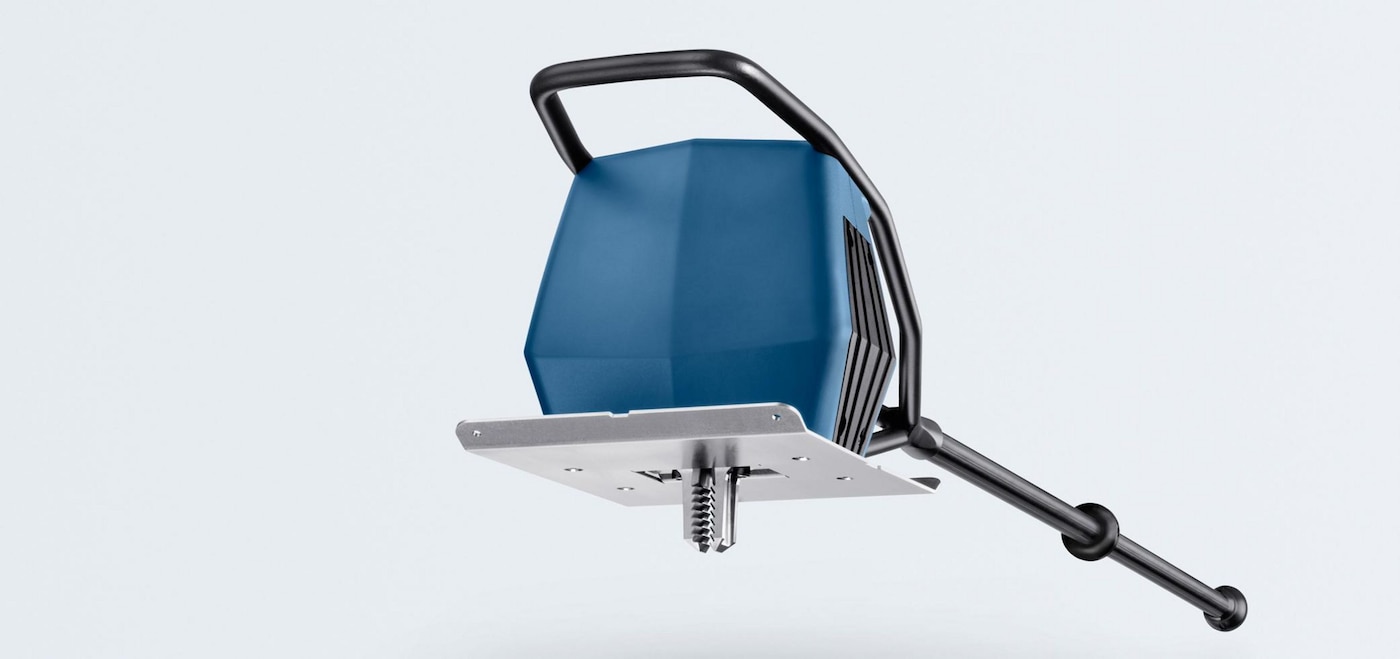

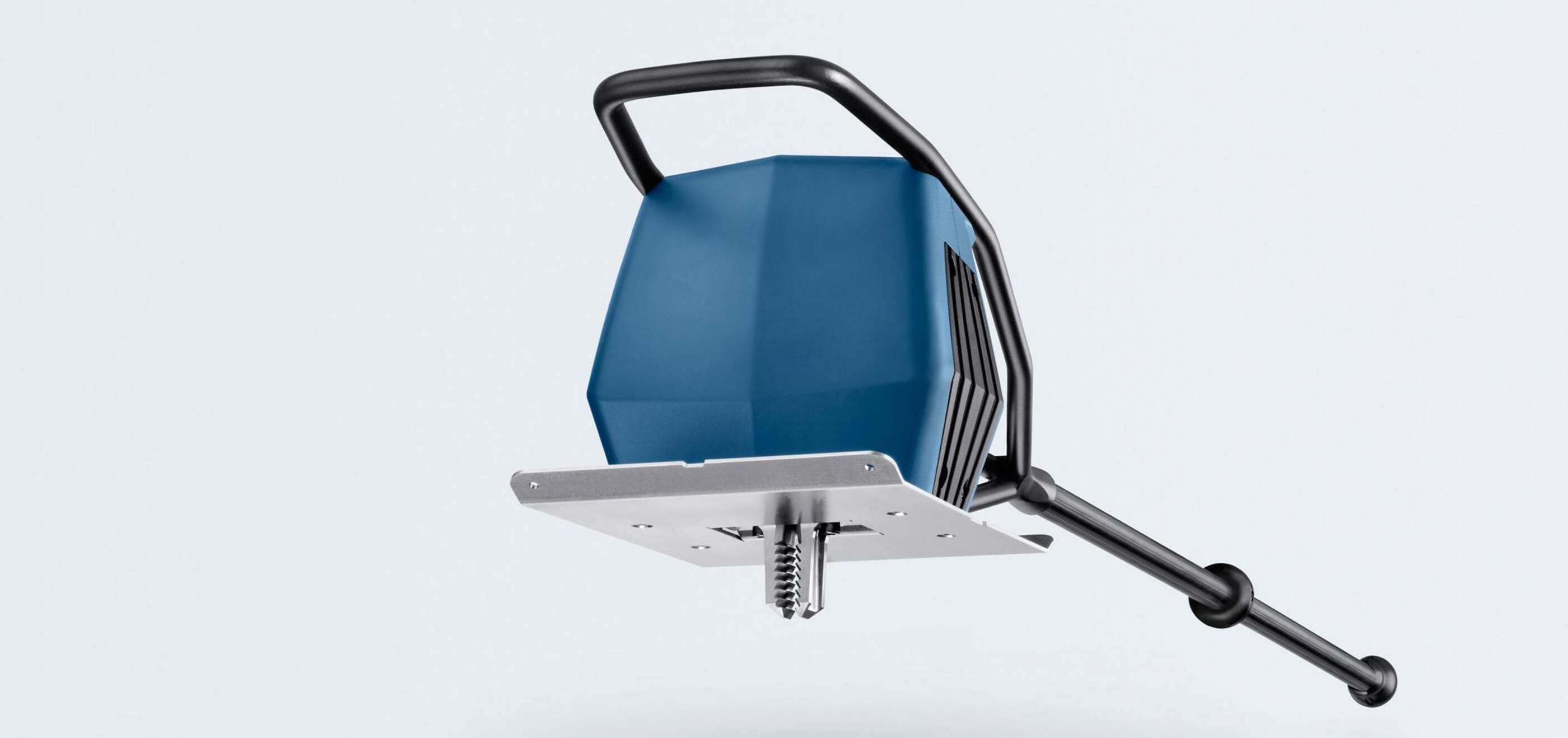

TruTool TSC 100

TruTool TSC 100

The machine adapts automatically to different slag thicknesses.

Your specialist for clean slats

With the TruTool TSC 100, you can clean your slats quickly and effortlessly. This ensures reliable, high-quality production of laser-cut components. The slats do not need to be removed for cleaning. This is practical and saves you time. It takes approximately 30 minutes to clean an entire standard size pallet of 60 x 120 in.

Cost reduction up to 75%

The option of multiple cleaning significantly increases the service life of the slats and you can save up to 75% of the costs.

Simultaneous cleaning and production

On laser cutting machines with pallet changers, you can clean the slats during the cutting process.

Outstanding results

TruTool TSC 100 removes the slag extremely thoroughly.

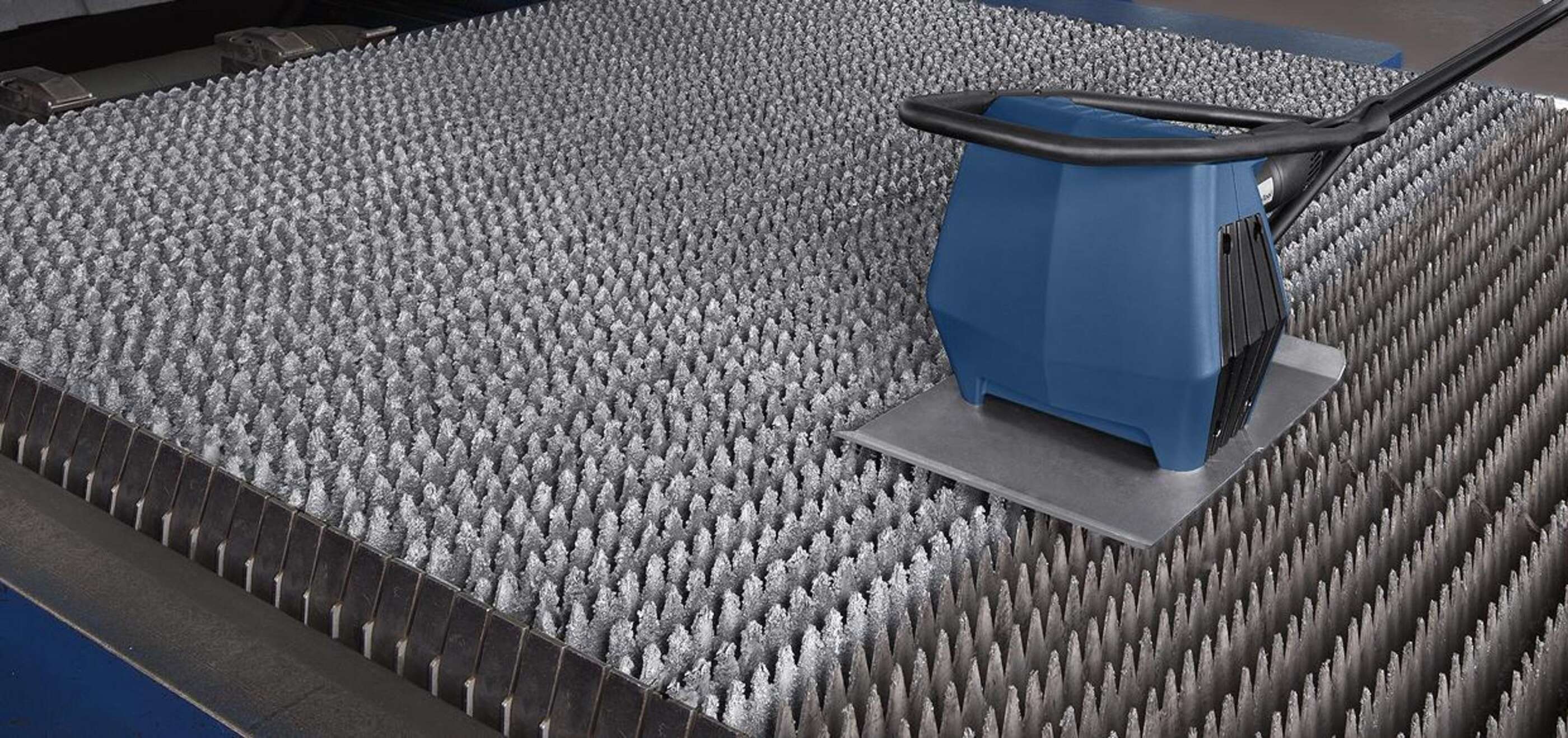

1-man operation

The long machine handle enables you to clean the slats effortlessly by yourself.

Easy to use

Easy transportation to the laser machine using a roller. Thanks to quick and easy disassembly, ready for cleaning in no time at all.

How the cleaning works

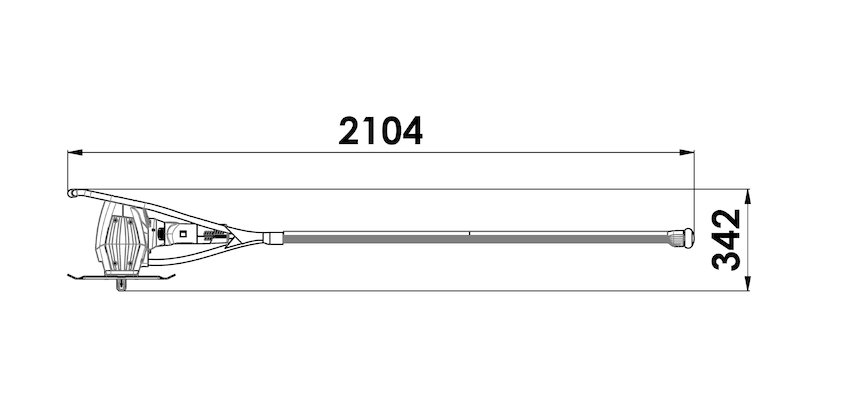

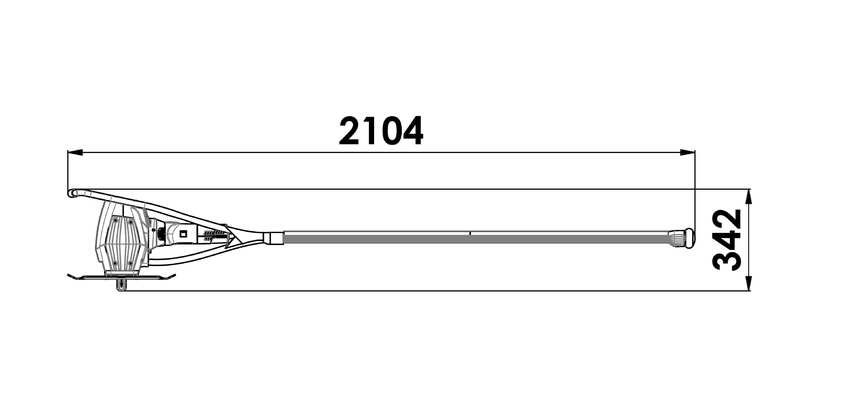

TruTool TSC 100, dimensional drawing

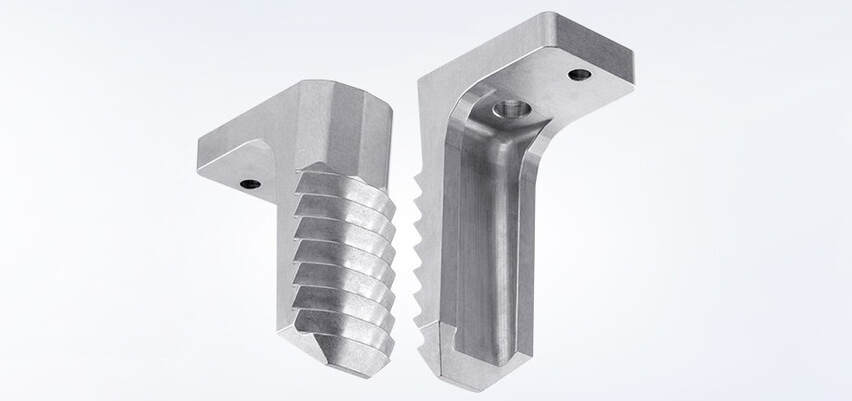

Cleaning tool

Selecting the right tool means minimal effort during cleaning, helping you to achieve optimal cleaning results

Application

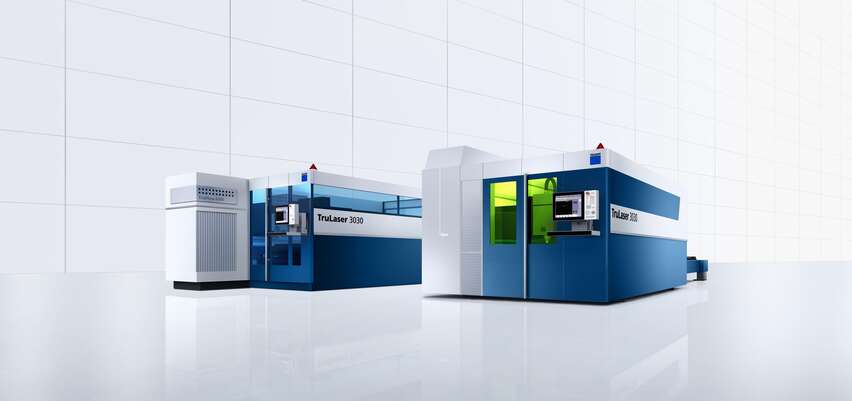

The TruTool TSC 100 can be used on CO2 and SSL 2D laser cutting machines < 10000 W.

viewport test images /w Retina support

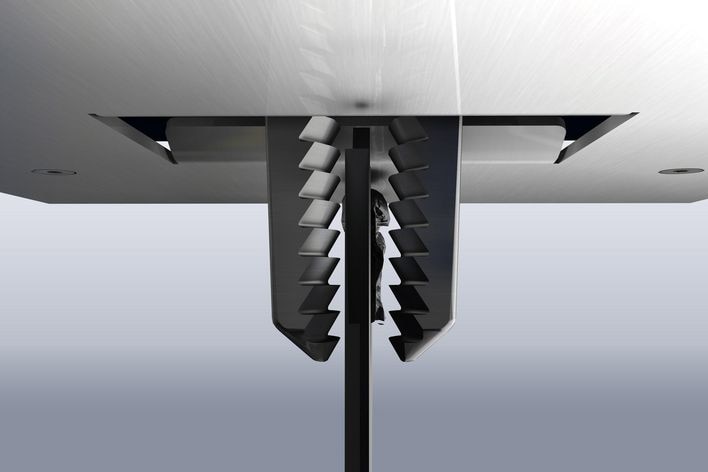

Cleaning process

The slat is cleaned from bottom to top with an opening movement. The slag is scraped off with an even upward movement.

The following consumables and the corresponding accessories are included in the scope of delivery.

Seal with functional monitoring feature (1x integrated, 1x included in delivery)
1 unit 2046587
Cleaning tool no. 3
For strip thickness 3 - 3,9 mm incl. seal, Set of 2 1644867
Spacer plate (integrated)
1 unit 1734714
Allen wrench 6 mm
1 unit 1640682
Allen wrench 4 mm
1 unit 0369003
Slide plate
1 unit 1619017
Transport device
1 unit 1634956

Find the right consumables and accessories for your machine here.

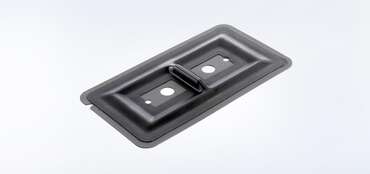

Seal

1 unit  1633583
Set

4 x sliding disk and 2 x seal

Set of 1  1681498
Cleaning tool no. 3

For strip thickness 0.12 - 0.15 in. incl. seal

Set of 2  1644867
Cleaning tool no. 2

For strip thickness 0.08 - 0.9 in. incl. seal

Set of 2  1644868

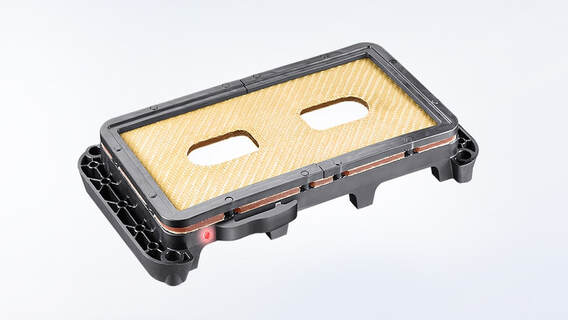

Seal with functional monitoring feature

1 unit  2046587

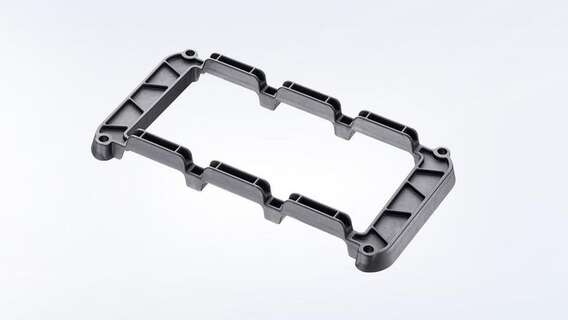

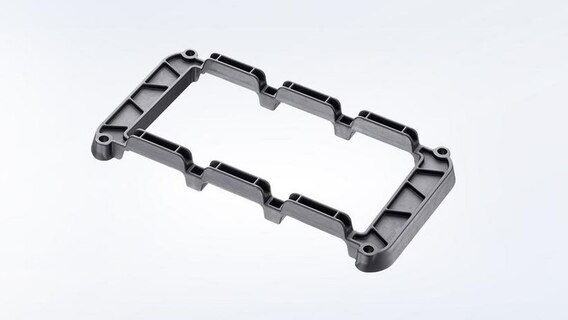

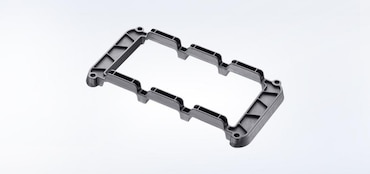

Spacer plate

If the height difference between the cross slat and slat is less than 2.4 in.

1 unit  1734714
Transport device

1 unit  1634956

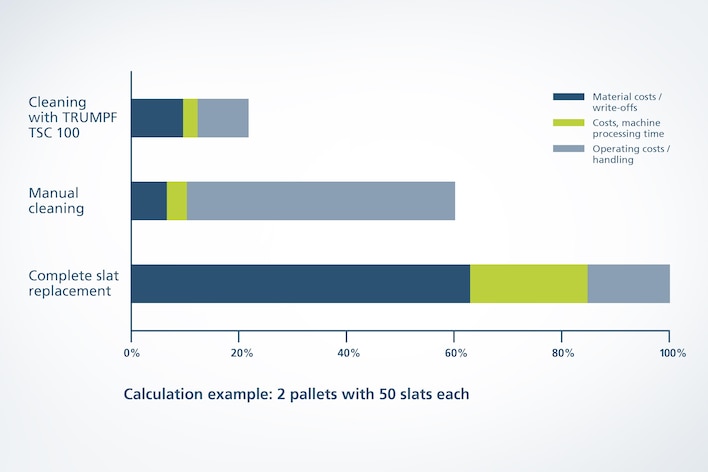

Sustainably saving costs

With the ability to clean slats multiple times, it is possible to save up to 75% of costs compared with regular slat replacement. Regular cleaning also extends the service life of the slats. This conserves resources and ensures sustainability at the same time.

Outstanding cleaning results

TruTool TSC 100 automatically adapts to different slag thicknesses of up to 25 mm and achieves optimal cleaning results for laser power < 10000 watts. The slats themselves are cleaned laterally and in the spaces between the teeth. Another plus point: You can insert the TruTool TSC 100 into any row of slats and clean them completely up to the edge of the pallet without removing them.

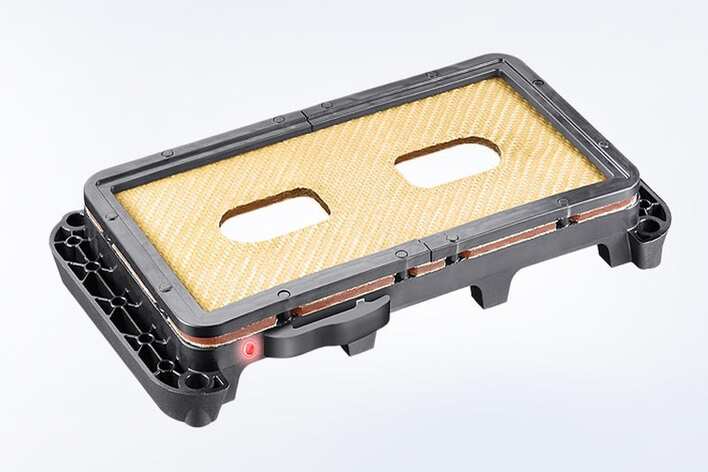

Intelligent monitoring system

An intelligent monitoring system ensures reliable and safe work processes. An integrated LED display informs you with fast, continuous flashing when the seal needs to be replaced. Thanks to the new seal function monitoring, the manual check at regular intervals is no longer necessary. The maintenance interval is automatically controlled with an electronic display. This saves you time and prevents possible damage to the tool that can occur if the seal is not checked and replaced at the specified maintenance interval

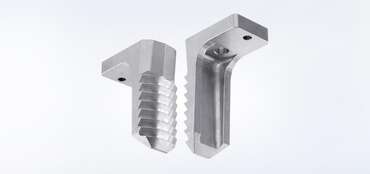

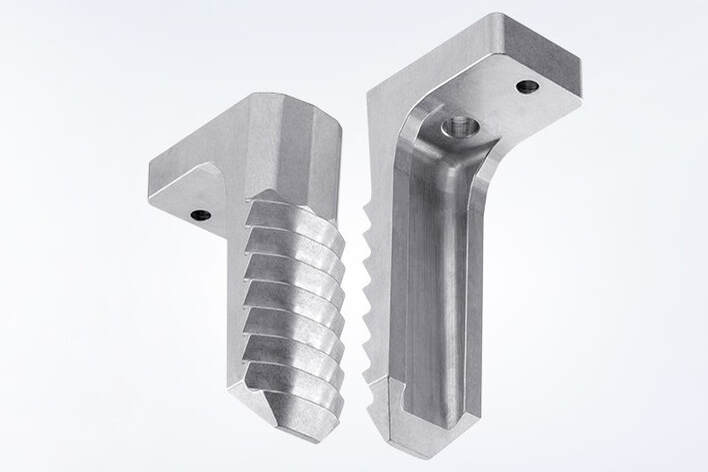

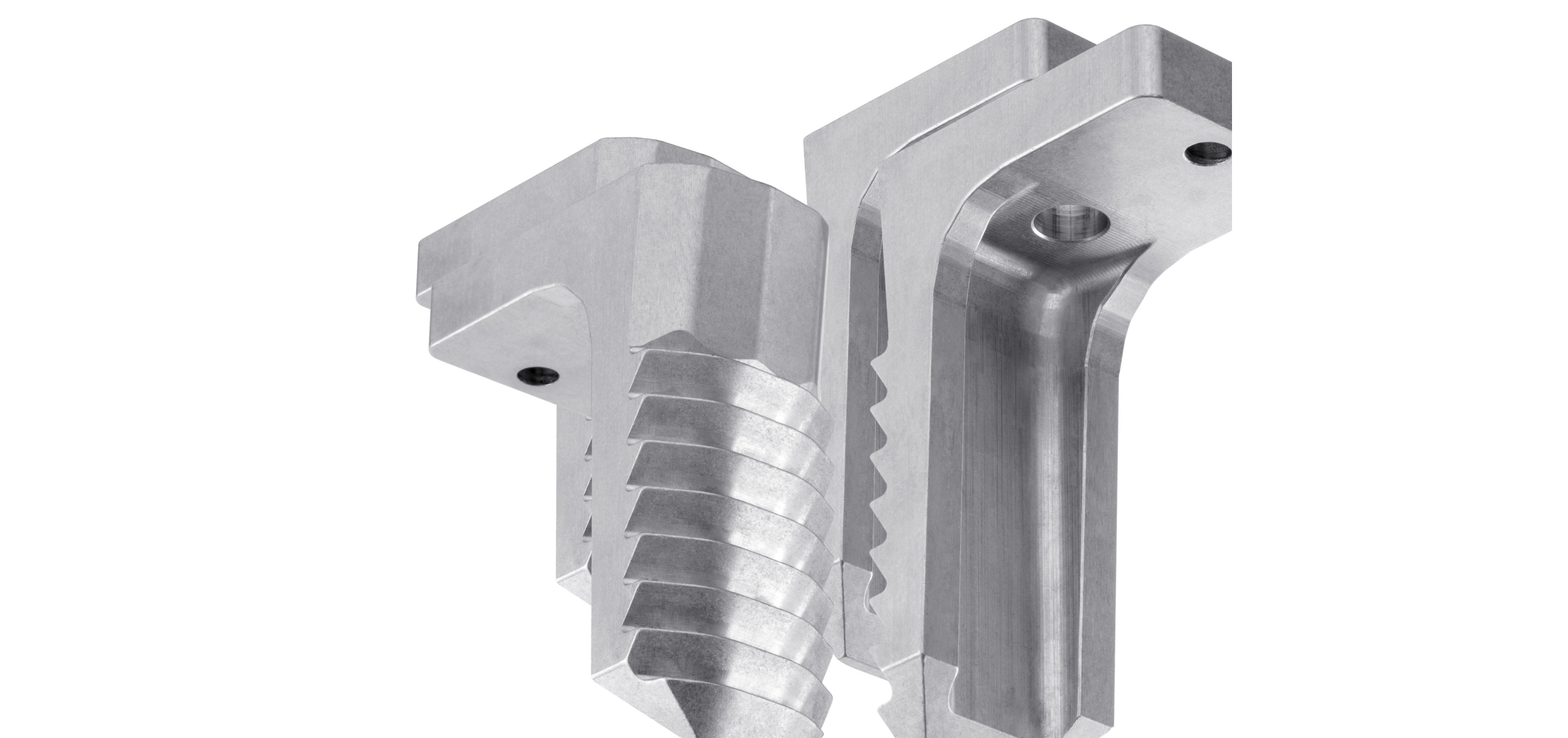

Cleaning tool

Choose between tool no. 2 for slat thicknesses of 2 mm – 2.9 mm and tool no. 3 for 3 mm – 3.9 mm. The tools impress with their long service life.

TruTool TSC 100
Slat cleaner
Slat thickness 2 mm - 3.9 mm
Maximum slag thickness 25 mm
Minimum distance between slats 33.5 mm
General
Nominal power consumption 1700 W
Working speed (max.) 8 m/min
Dimensions
Length 2104 mm
Height 342 mm
Weight
Weight 18 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
