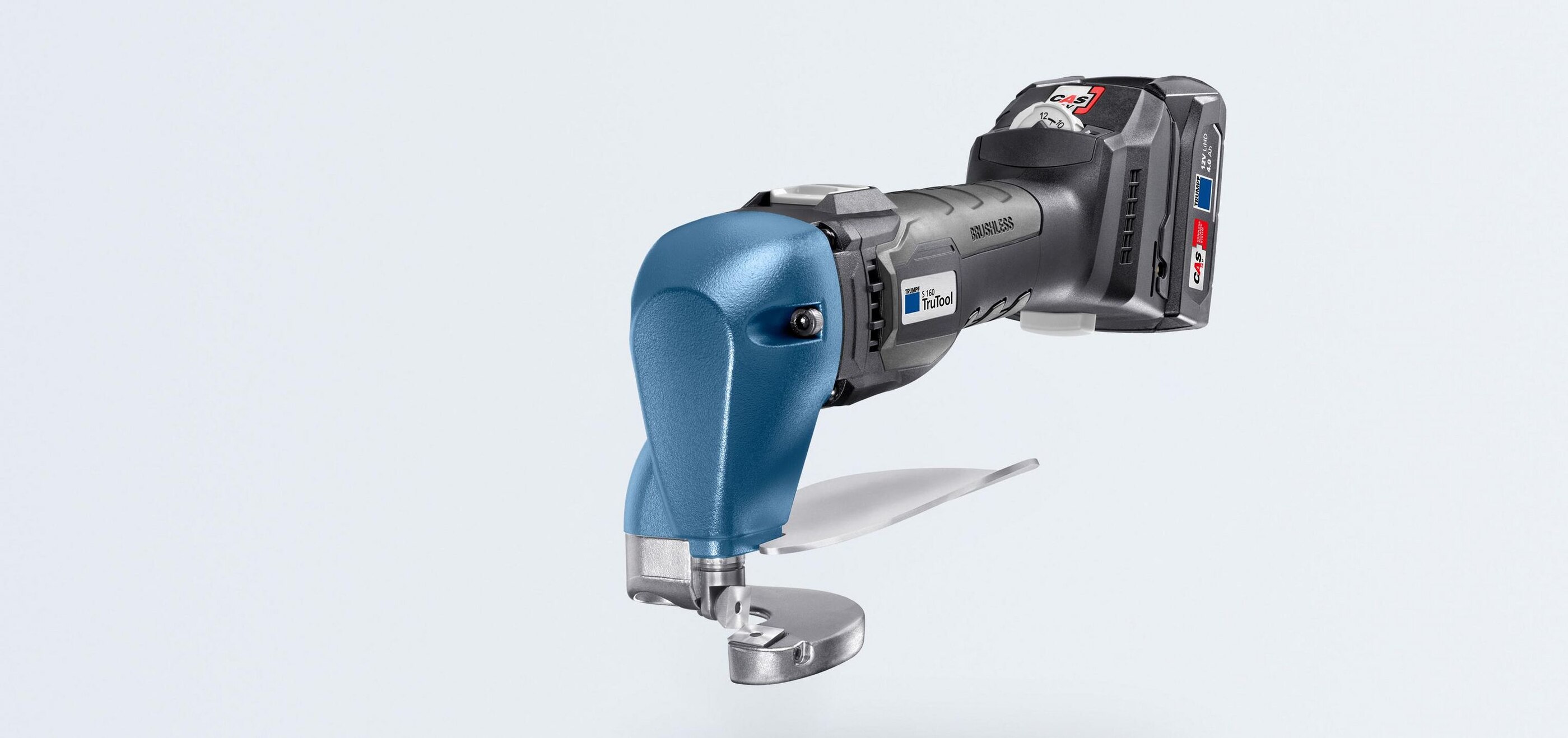

TruTool S 160 12V LiHD rechargeable battery

TruTool S 160 Li-ion

TruTool S 160 12V LiHD rechargeable battery

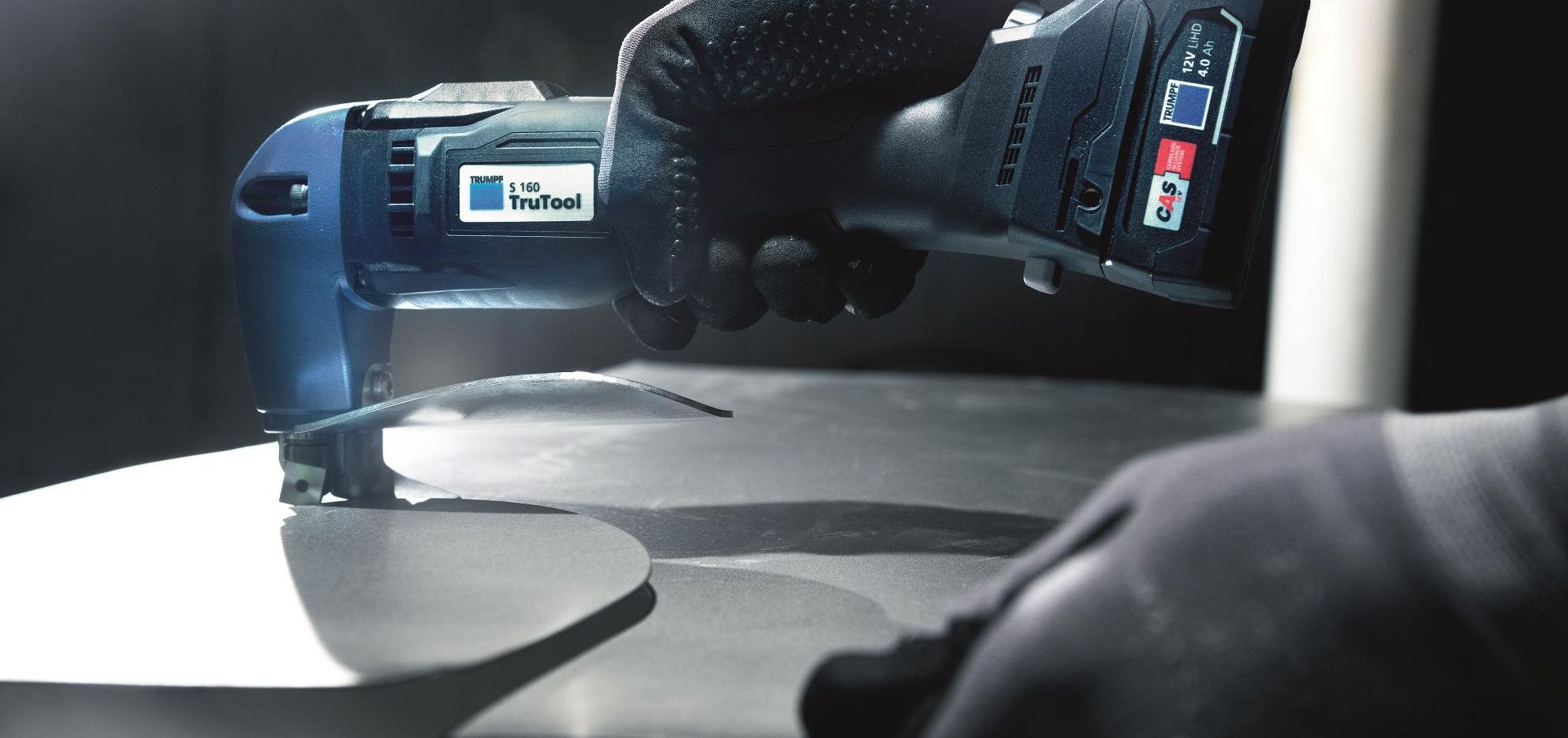

Precise cutting with the best performance on curves

Handy battery machine up to 0.063 in.

The TruTool S 160 12V rechargeable battery machine optimally equips you to process mild steel sheet metal of up to 1.6 mm. Obstructions are insignificant and the machine provides exceptional curvability. The battery machine enables you to work comfortably and with little effort. The 4.0 Ah / 12V LiHD rechargeable battery also ensures long runtimes.

Just right

Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.

Brushless motor

Almost unlimited service life, virtually wear-free and hardly any maintenance required. Battery performance per charge is also increased.

Tight curves

You can cut even the smallest radii starting from 0.6 in. with the TruTool S 160, which offers excellent performance on curves.

Long cutter service life

Option of 4-way rotation. For a long service life and low operating costs.

Shears: Video on the area of application

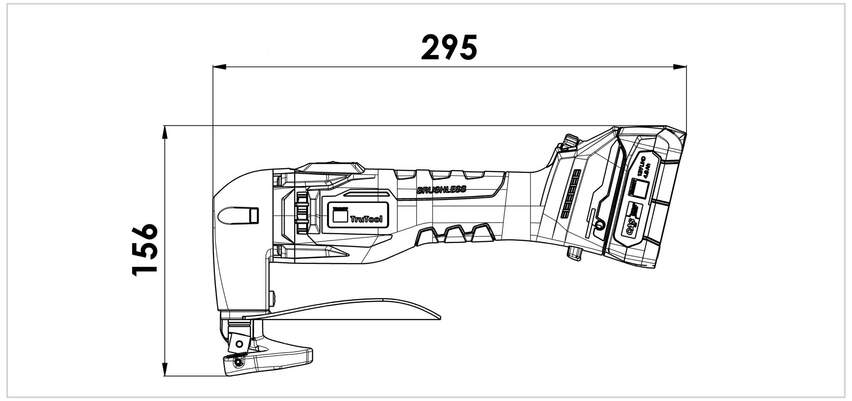

TruTool S 160 12V LiHD rechargeable battery, dimensional drawing

Leading

World's most powerful battery technology with 30 years of battery expertise from Metabo. Full compatibility within the 12V class – also with CAS partner machines. Universal recharger, regardless of whether you use 12V, 18V or 36V CAS rechargeable batteries.

Battery technology

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. By cells being protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. The result: high-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection.

Flat sheet

Cutting and trimming of flat sheets. For radial and interior cutouts as well as notches.

Profiles

For cutting C-L-U profiles.

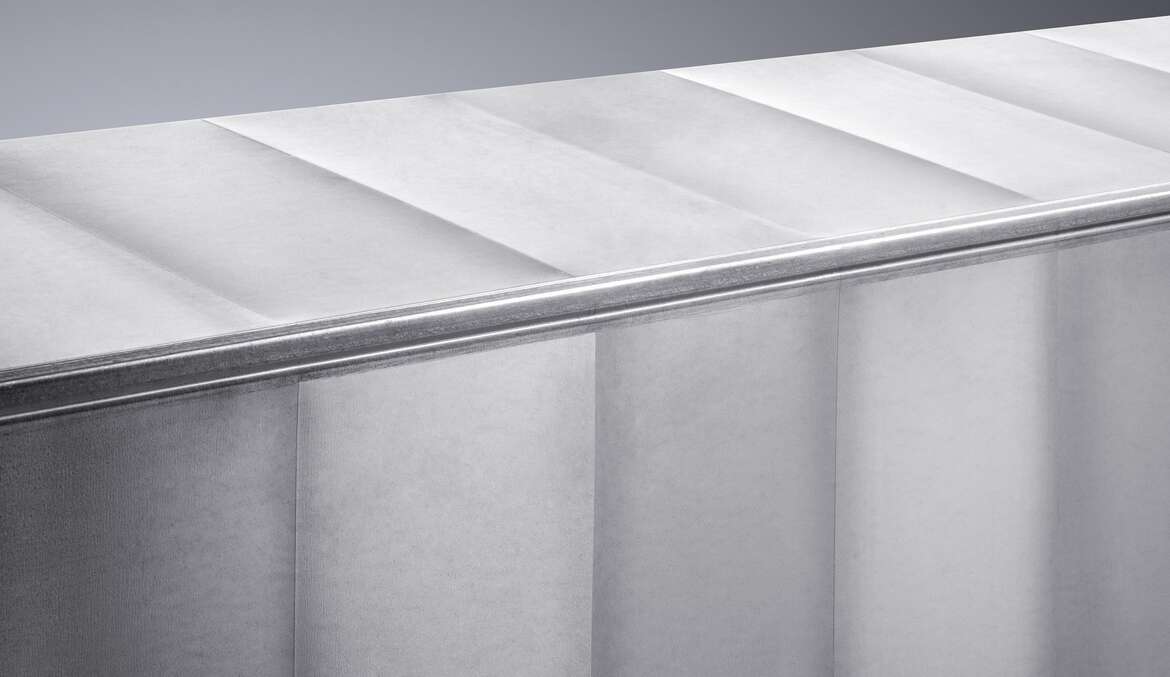

Ventilation ducts

Cutting sheet metal parts for ventilation ducts.

Tubes

For unfolding and cutting tubes.

The following consumables and the corresponding accessories are included in the scope of delivery.

Allen key DIN 911-3
1 unit 0094840
Cutter (integrated)
Integrated
Allen key DIN 911-2
1 unit 0002946
Belt clip
1 unit 2579850
12V-36V recharger LG
1 unit, DE/CH version: 2569784 | 1 unit, GB version: 2569786 | 1 unit, USA version: 2569785
12V LiHD 4.0 Ah rechargeable battery (2 units)
1 unit 2598770
TRUMPF Box S2
1 unit 1763682

Find the right consumables and accessories for your machine here.

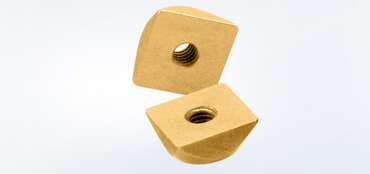

Titanium-coated cutter

Set of 2  2089660

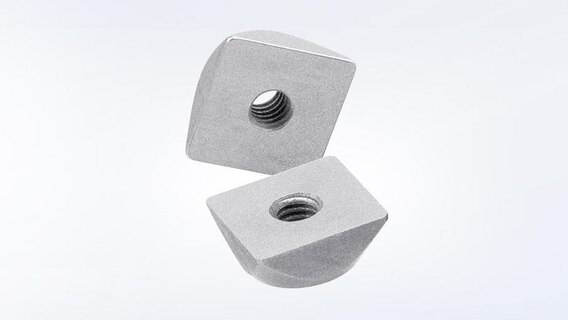

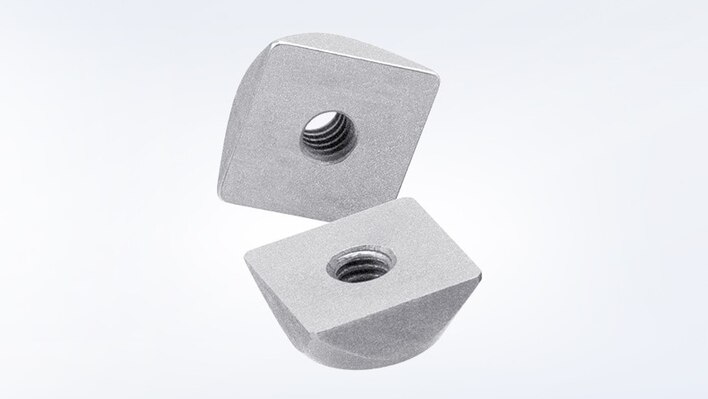

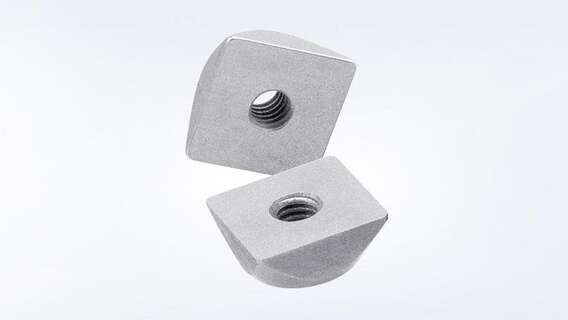

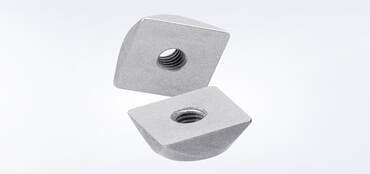

Cutter

For steel up to 57,000

Set of 2  0126471
Set of 10  1264320

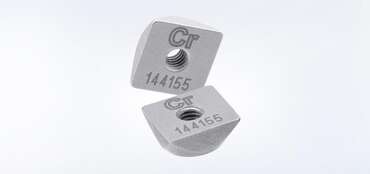

Cutter CR

For high-tensile sheets up to 114,000

Set of 2  0919760
Belt clip

Suitable for the 12V LiHD battery machines

1 unit  2599016
12V starter kit

1x LG 12V-36V recharger / 2x 12V LiHD 4.0 Ah rechargeable battery

1 Set (DE)  2598815
1 Set (GB)  2598819
1 Set (USA)  2598817
LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 unit (DE/CH)  2569784
1 unit (GB)  2569786
1 unit (USA)  2569785
12V LiHD 4.0Ah rechargeable battery

1 unit  2598770
TRUMPF Box S2

1 unit  1763682
viewport test images /w Retina support

Power-Head Technology

viewport test images /w Retina support

Brushless motor

viewport test images /w Retina support

Small and handy

viewport test images /w Retina support

4-way blade rotation

viewport test images /w Retina support

Optimal working speed

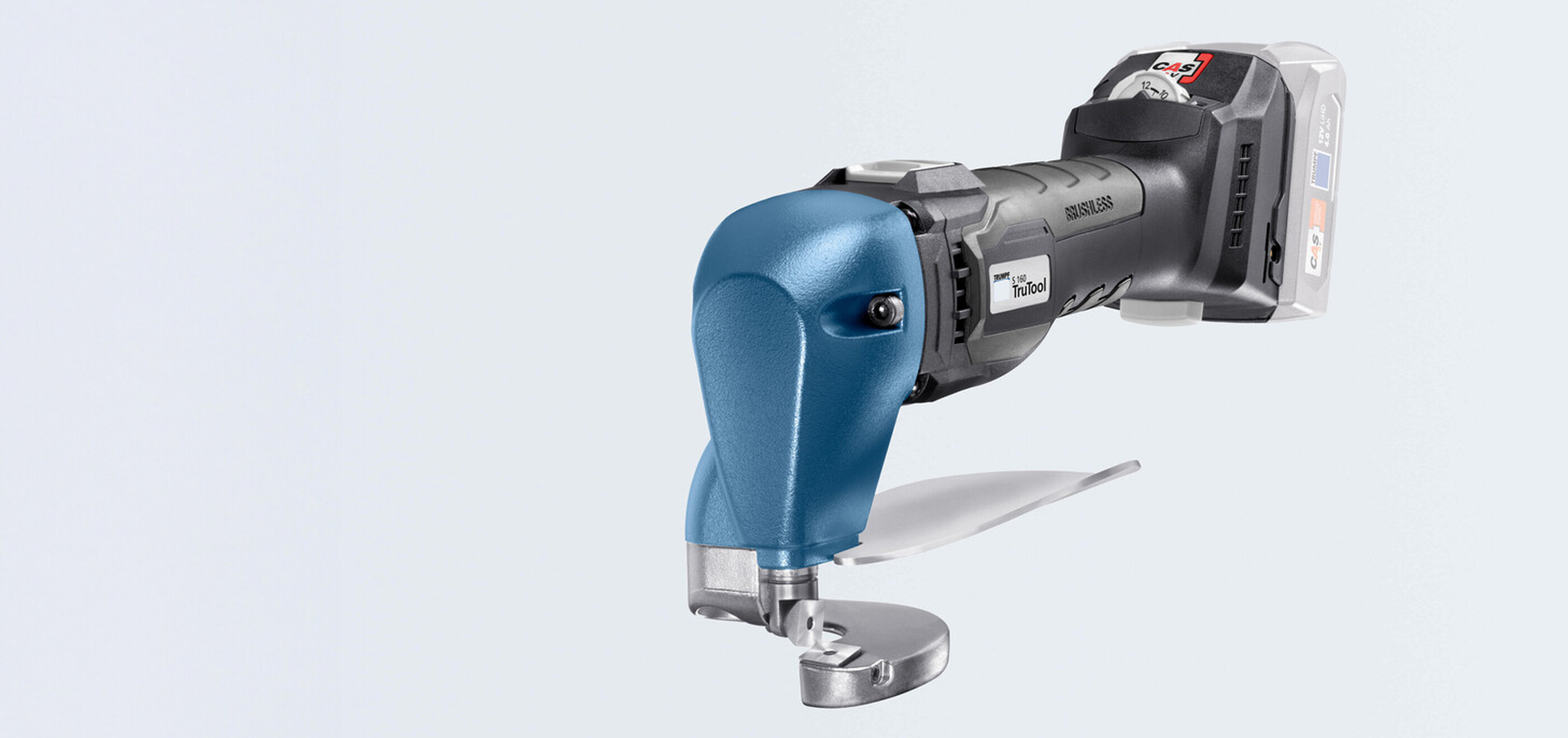

TruTool S 160 12V LiHD rechargeable battery
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 1.6 mm
Maximum sheet thickness, steel 600 N/mm² 1.2 mm
Maximum sheet thickness, steel 800 N/mm² 1 mm
Maximum sheet thickness, aluminium up to 250 N/mm² 2 mm
Radii
Smallest radius 16 mm
General
Working speed (max.) 9 m/min
Starting hole diameter 28 mm
Voltage 12 V
Weight
Weight (incl. rechargeable battery) 1.7 kg
Dimensions
Length 295 mm
Height 156 mm

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
