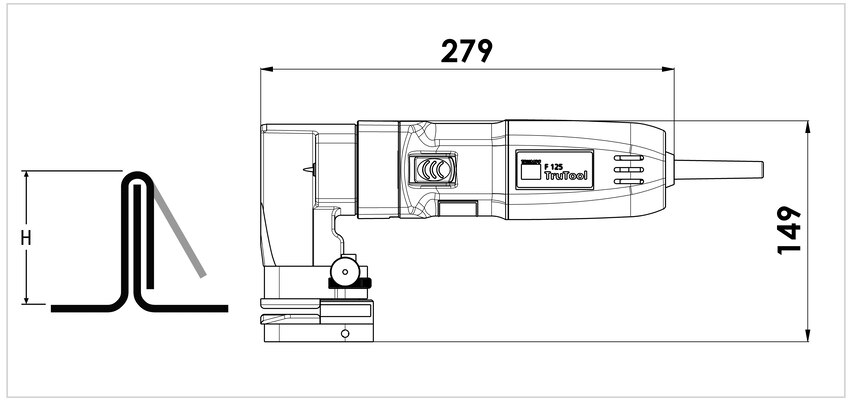

TruTool F 125, dimensional drawing
For closing angle and standing seams

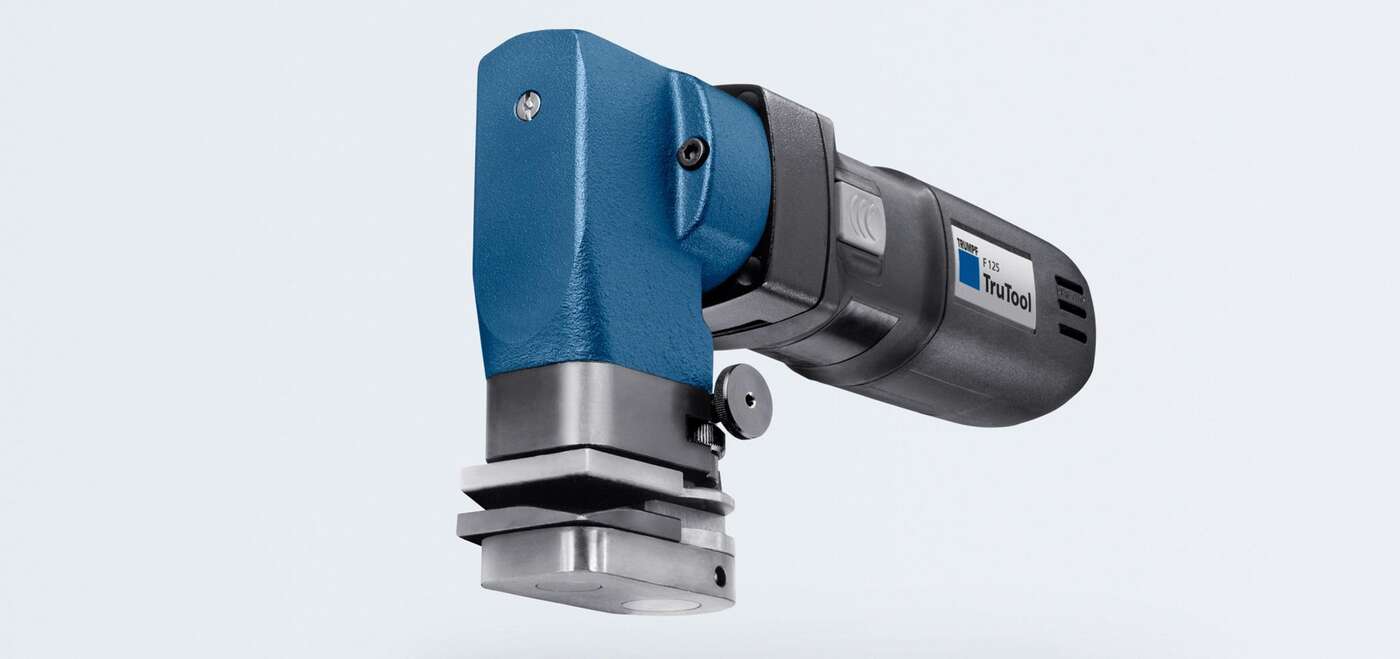

The TruTool F 125 closes angle and standing seams with a spring-loaded hammer. This gives you tightly closed seams with consistent quality, even with variations in sheet thickness. The maximum seam height is 1.57 in. The free-standing tool allows you to work well even in tight corners and angles.
For angle and standing seams
Close the seam with consistently high quality, even in corners and angles.
Can be adjusted without tools
The sheet and seam thickness are controlled manually and minor variations in sheet thickness are evened out.

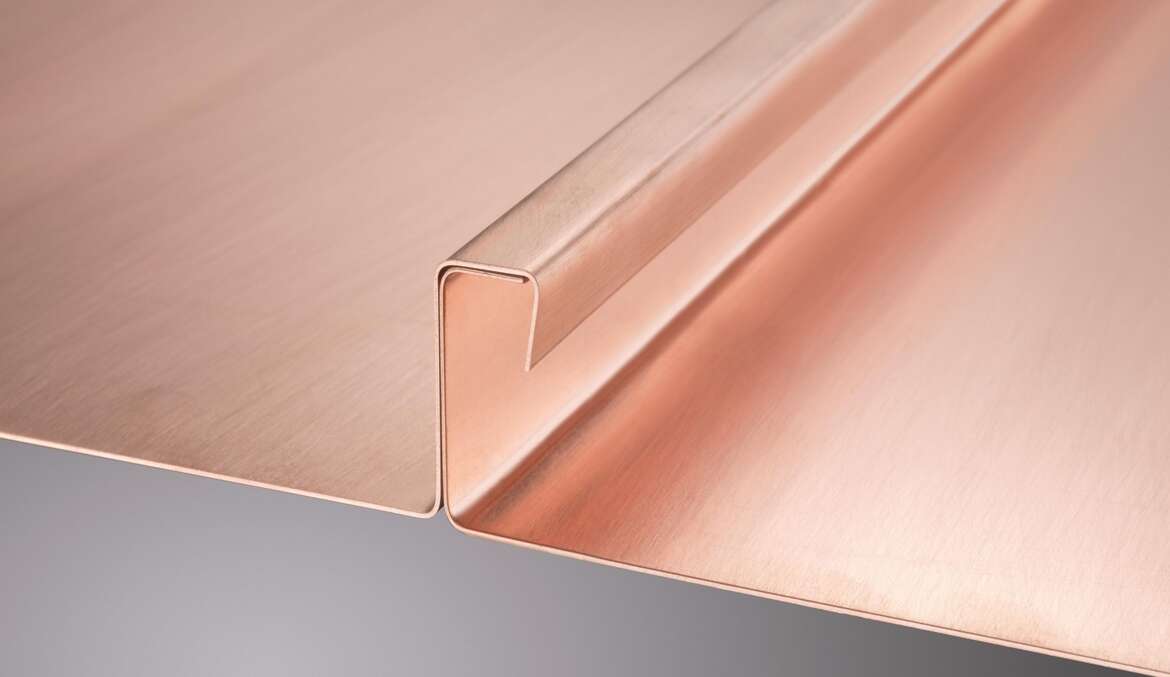

For standing and angle seams
For closing prepared standing and angle seams.
The following consumables and the corresponding accessories are included in the scope of delivery.
TRUMPF Box S1
1 unit 1763681
Find the right consumables and accessories for your machine here.

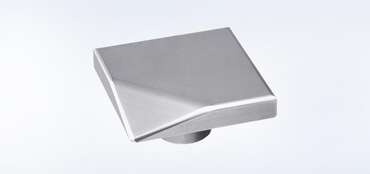

Bottom hammer
1 unit
0105448

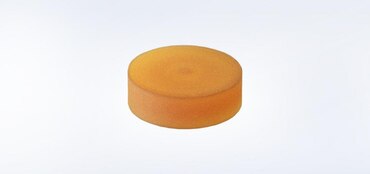

Plastic buffer
1 unit
0105449

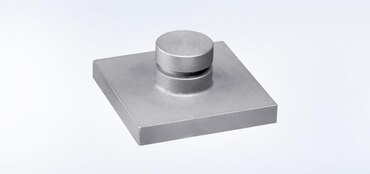

Top hammer
1 unit
0102964

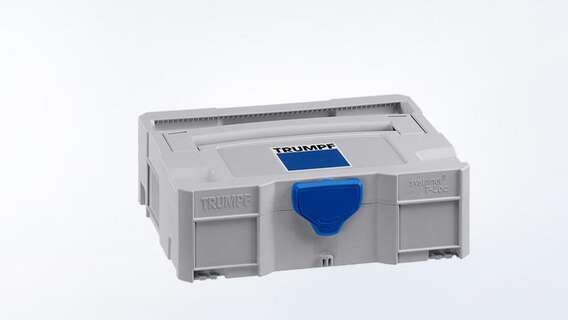

TRUMPF Box S1
1 unit
1763681
|

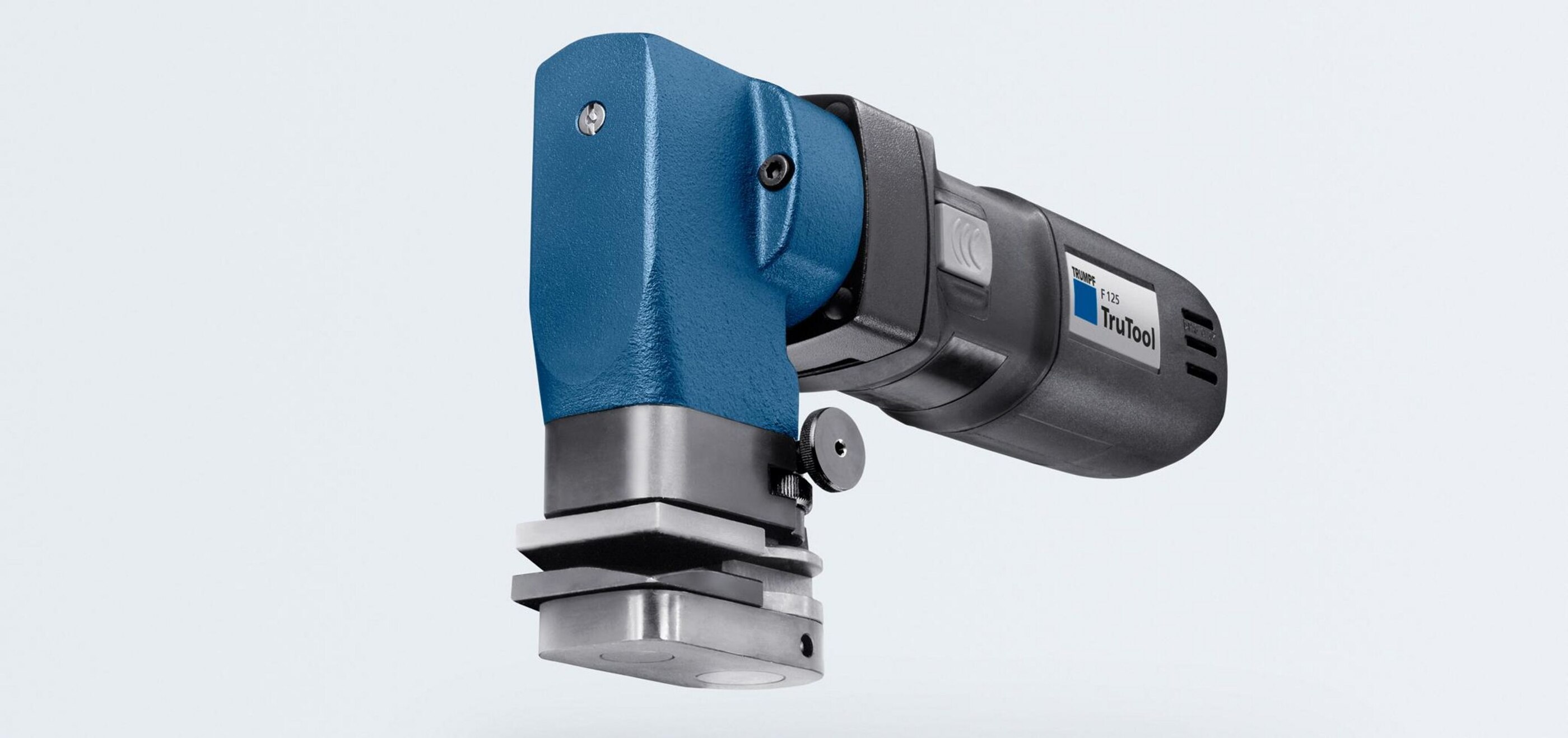

TruTool F 125
|
|
|---|---|
| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel 400 N/mm² | 1.25 mm |
| General | |
| Flange height (H) | 40 mm |
| Maximum fold thickness | 5 mm |
| Working speed (max.) | 6 m/min |
| Nominal power consumption | 550 W |
| Dimensions | |
| Length | 279 mm |
| Height | 149 mm |
| Weight | |
| Weight | 2.8 kg |
PDF <1MB
Technical data sheet
The technical data of all product versions as a download.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
