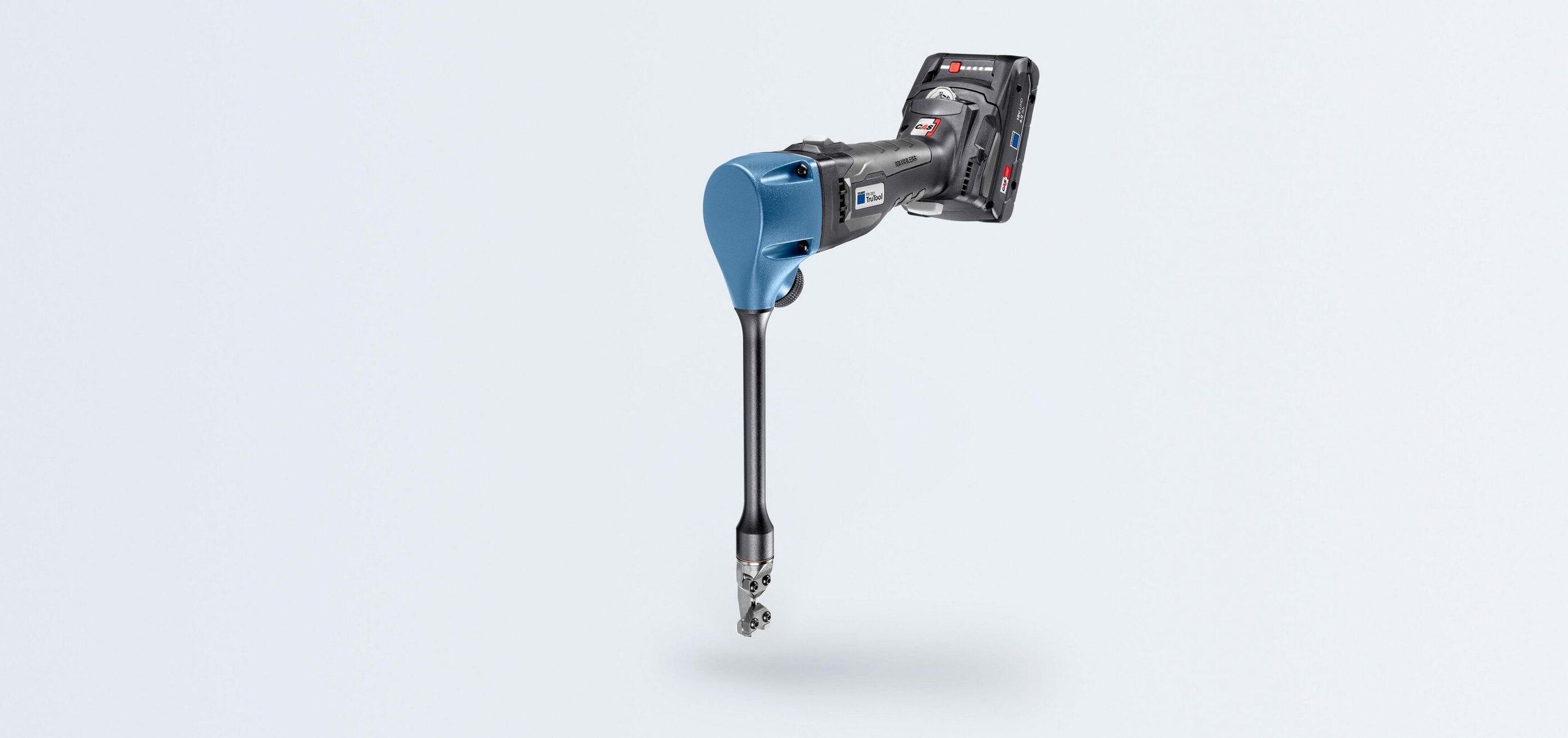

TruTool PN 201 18V LiHD rechargeable battery

Powerful, cordless machine with a long tool

For the first time, you can use the TruTool PN 201 battery machine cordlessly to cut sheet thicknesses in mild steel up to 2 mm, even in the case of doubled sheets. The exceptionally powerful machine with an extended tool is ideal for use on deep trapezoidal sheets. The tool can be rotated 360° on the spot. The cutting direction, punch, and die carrier can be changed quickly, without the need for tools. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes. You can choose from various tool depths to broaden the areas of application.

Cordless Alliance System

Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility in the 18-volt class.

Brushless motor

Almost unlimited service life, virtually wear-free and hardly any maintenance required. Battery performance per charge is also increased.

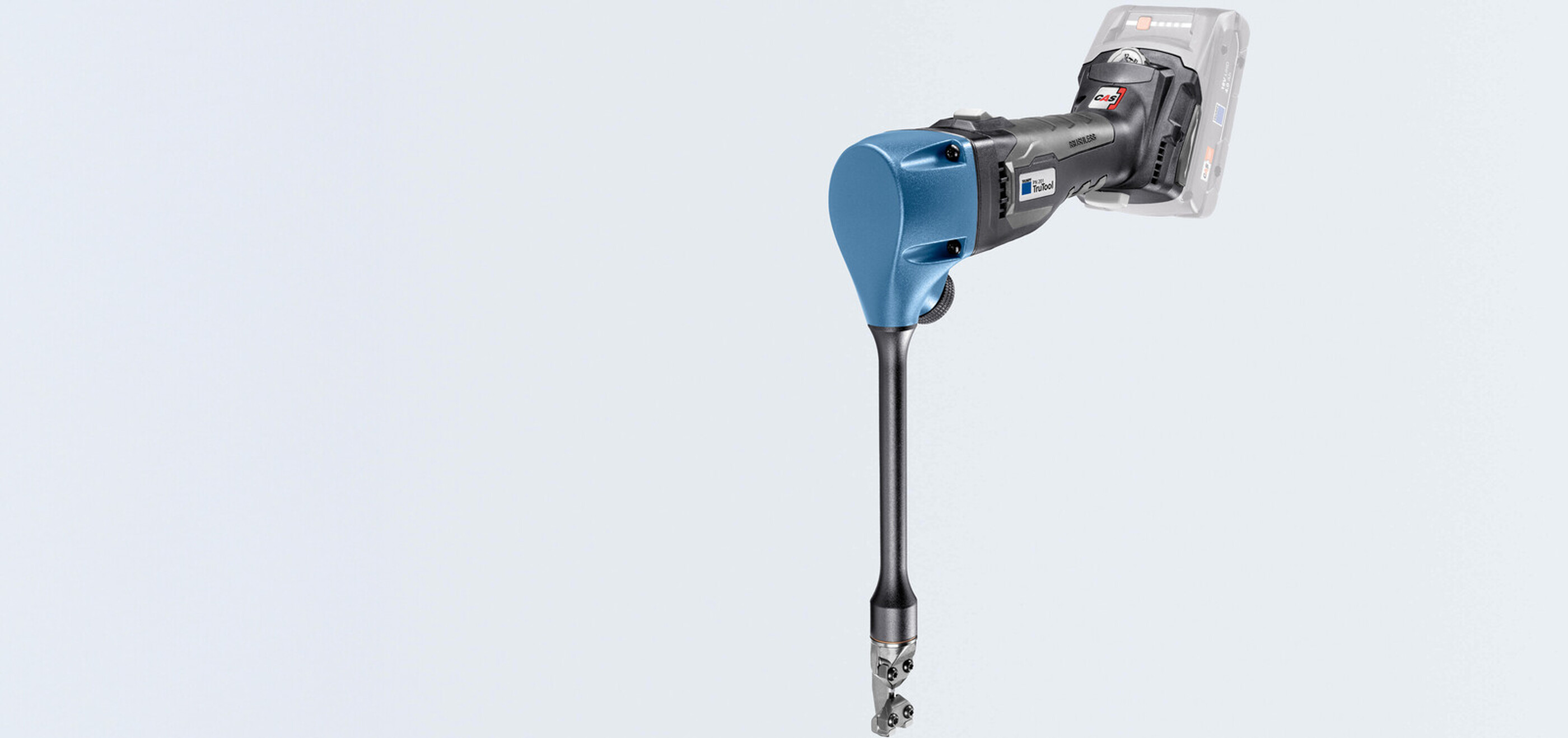

Machine with long tool

Primarily for processing profile depths of up to 6.37 in. Also well-suited to C-L-U profiles.

Ideal for hard-to-reach places

You can adjust the working direction through 360° in steps of 45° easily, without the need for tools.

Profiling nibbler: Video on the area of application

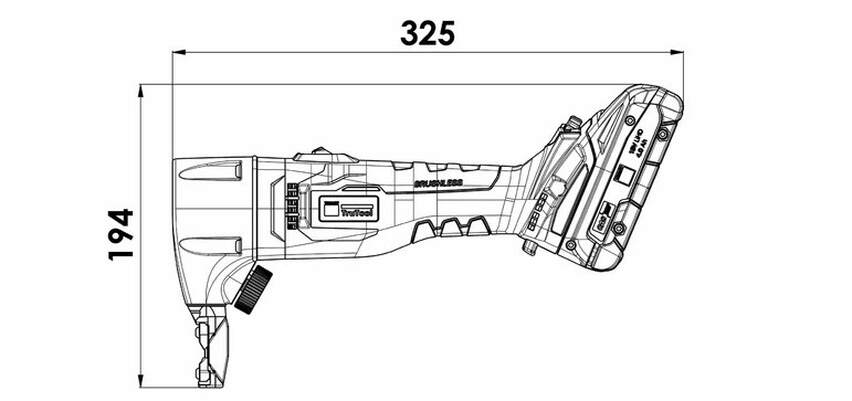

TruTool PN 201 18V LiHD rechargeable battery, dimensional drawing

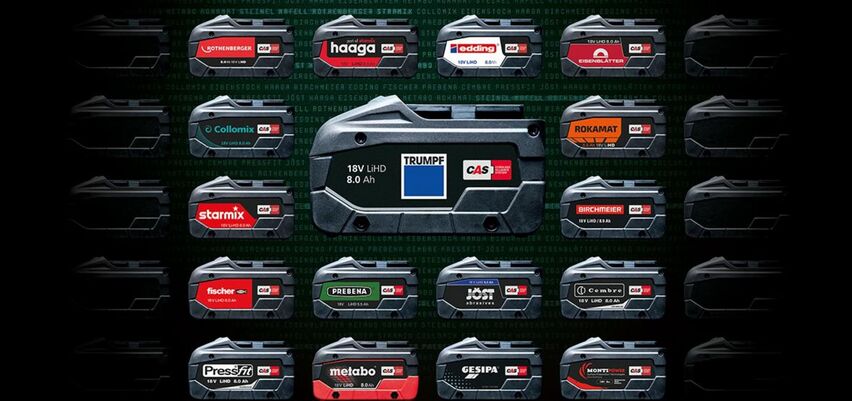

Cordless Alliance System

This product is part of the Cordless Alliance System. CAS means one battery for everything, 100% compatibility for machines, rechargeable battery packs and rechargers – regardless of manufacturer. World's most powerful battery system with 30 years of battery expertise from Metabo. Maximum reliability, clear cost benefits and a sound investment.

Battery technology

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. By cells being protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. The result: high-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection.

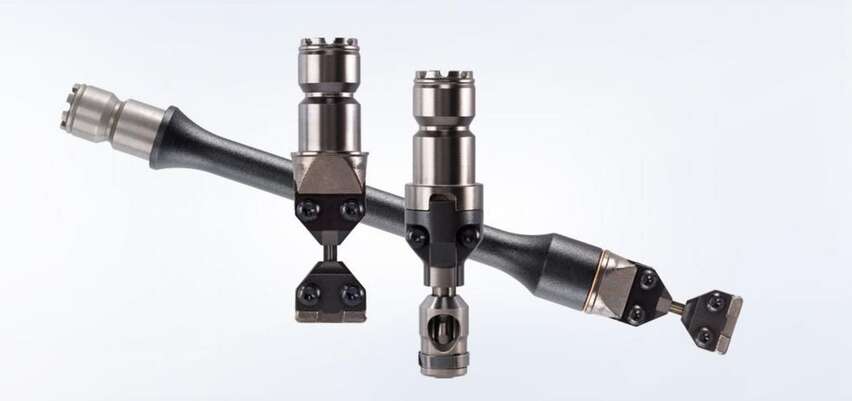

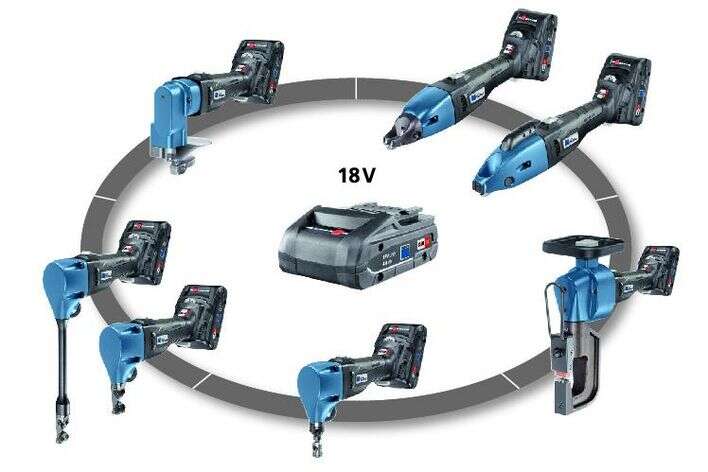

Can be retrofitted for flexible work

The rechargeable battery and electric variants of the TruTool N 200, PN 200, and PN 201 are built on the same multifunctional machine basis. Each machine has its own particular strengths for processing different sheet metal: TruTool N 200 for flat and corrugated sheet; TruTool PN 200 for trapezoidal sheets up to 3.34 in. deep and C, L, and U profiles; and TruTool PN 201 for trapezoidal sheets up to 6.37 in. in depth.

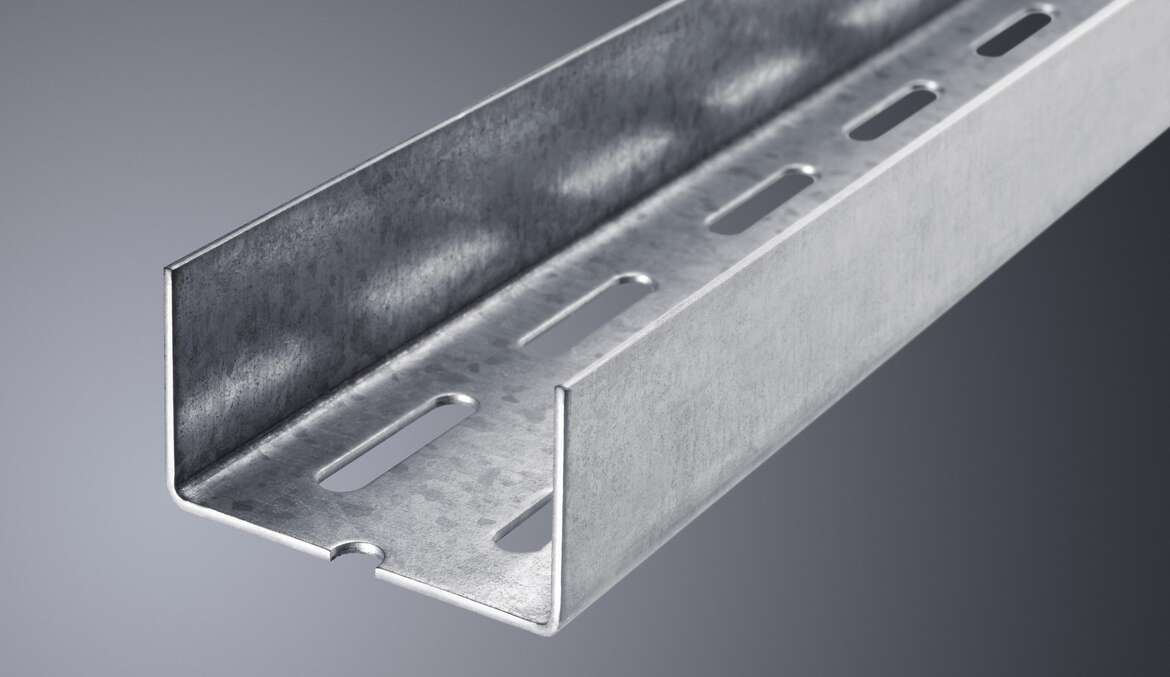

Profiles

For cutting C-L-U profiles.

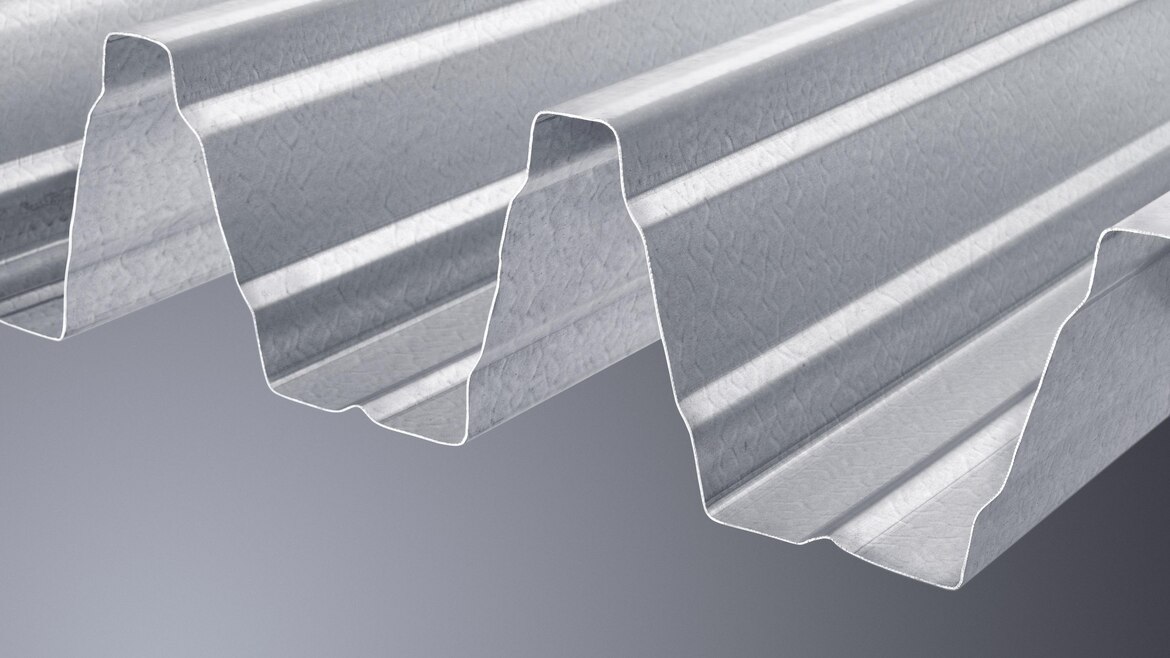

Trapezoidal sheet

For cutting profile depths up to 162 mm. For straight and diagonal cuts.

The following consumables and the corresponding accessories are included in the scope of delivery.

PN 201 tool (integrated)
1 unit 1750692
Punch guide (integrated)
1 unit 1884927
Standard die (integrated)
1 unit 2260207
Standard punch (integrated)
1 unit 2260206
12V-36V recharger LG
1 unit, DE/CH version: 2569784 | 1 unit, GB version: 2569786 | 1 unit, USA version: 2569785
18V LiHD 4 Ah rechargeable battery (2 units)
1 unit 2598811
TRUMPF Box M2
1 unit 1770890

Find the right consumables and accessories for your machine here.

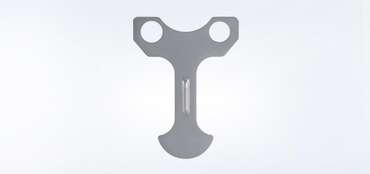

Wear plate

Protects the die holder against excessive wear

Set of 2  1429275
Set of 5  1429276
1 unit  2260208

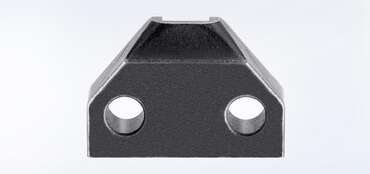

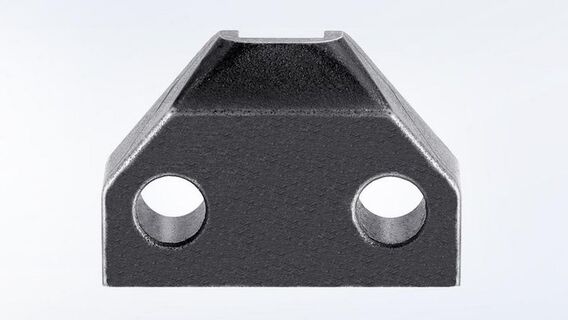

Standard die

Set of 2  1264153
Set of 5  1264154
1 unit  2260207
viewport test images /w Retina support

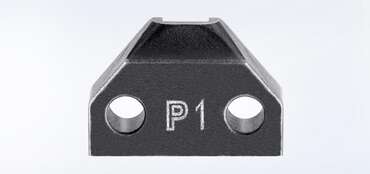

Die P1

Thin-sheet die up to sheet thickness 0.039 in.

1 unit  2260209
Punching and nibbling oil for aluminum

1000 ml  0125874

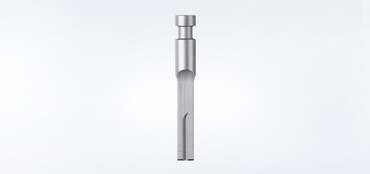

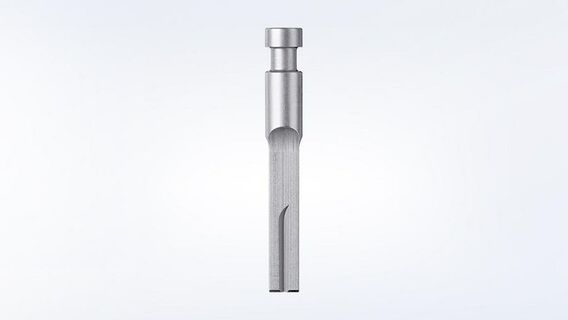

Standard punch

Set of 5  1315713
Set of 2  2260376
1 unit  2260206
Set

2 x punch, 1 x die and 2 x wear plate

Set of 1  1429289
Punching and nibbling oil for steel

500 ml  0103387

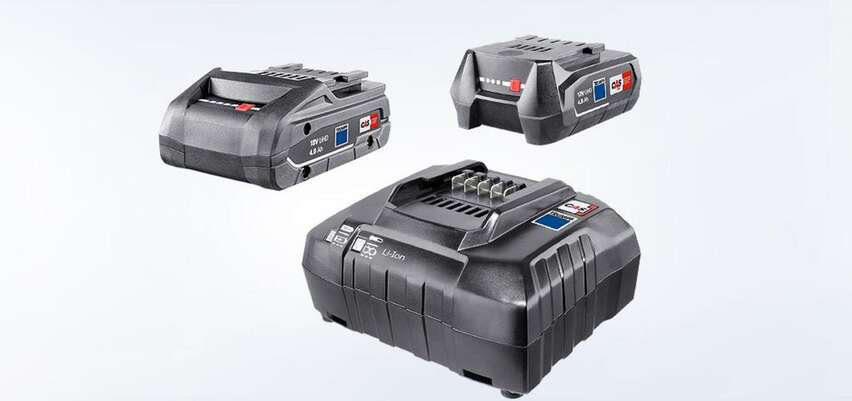

18V starter kit

1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery

1 Set (DE)  2598816
1 set (GB)  2598820
1 Set (USA)  2598818

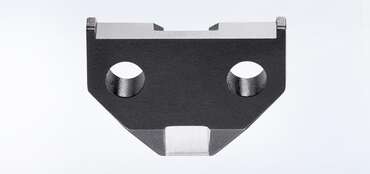

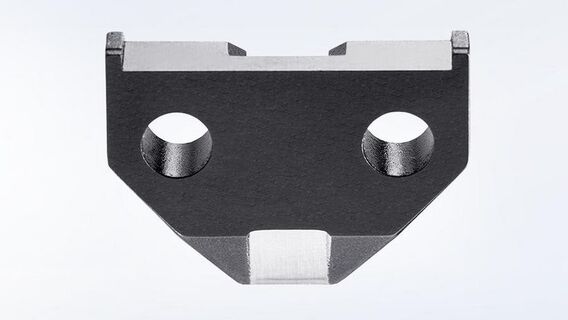

Punch guide

1 unit  1884927
Set of 2  1264367
LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 unit (DE/CH)  2569784
1 unit (GB)  2569786
1 unit (USA)  2569785

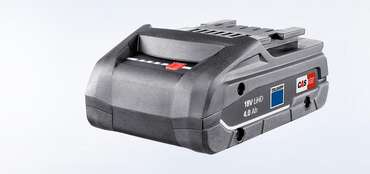

18V LiHD 4.0Ah rechargeable battery

1 unit  2598811
TRUMPF Box M2

1 unit  1770890
Tool TruTool N 200

1 unit  1750694

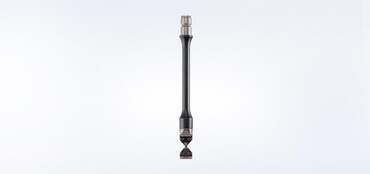

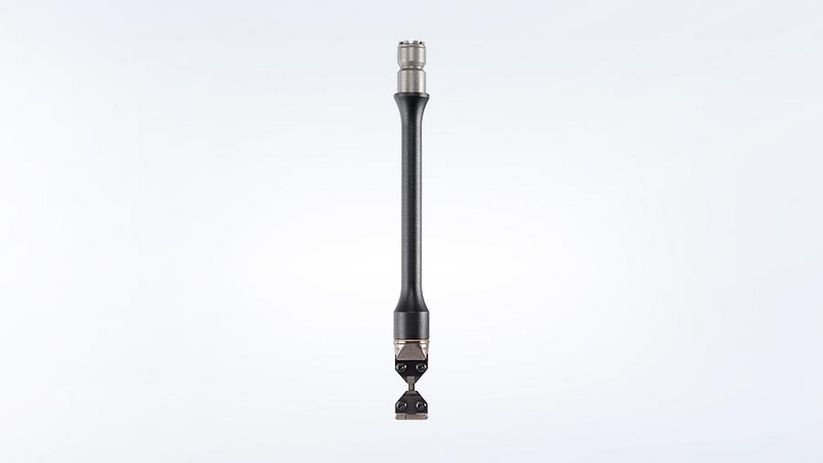

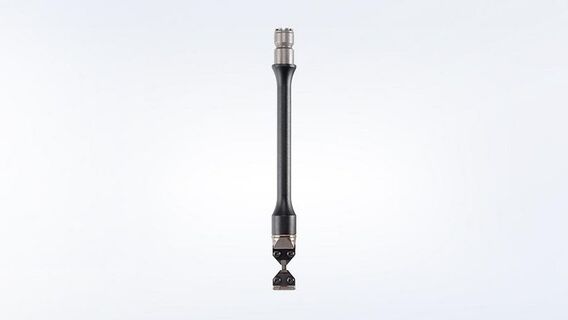

Tool TruTool PN 201

1 unit  2287067

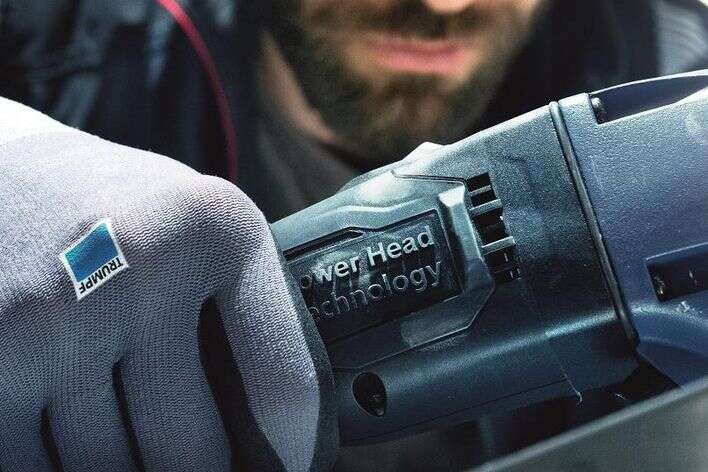

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

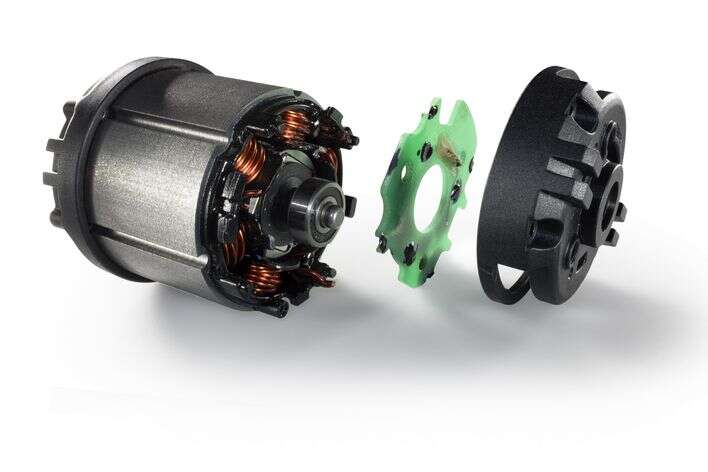

Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This has a positive effect on the battery life and lets you get the most out of every battery charge. Additional advantage: The service life of a BL motor is almost unlimited because they work without carbon brushes and therefore no mechanical friction occurs. The result: almost wear-free motors and hardly any maintenance.

Compact and powerful

The 18V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

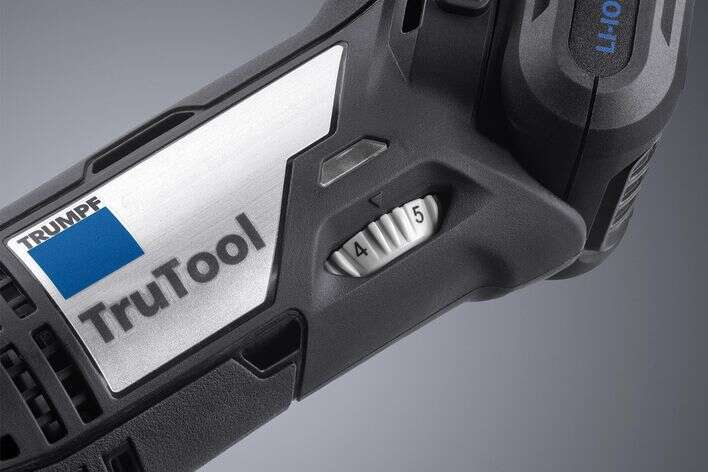

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

TruTool PN 201 18V LiHD rechargeable battery
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 2 mm
Maximum sheet thickness, steel 600 N/mm² 1.5 mm
Maximum sheet thickness, steel 800 N/mm² 1 mm
Maximum sheet thickness, aluminium up to 250 N/mm² 3 mm
Radii
Smallest radius 50 mm
General
Working speed (max.) 1.9 m/min
Starting hole diameter 24 mm
Voltage 18 V
Dimensions
Length 325 mm
Height 363 mm
Weight
Weight (incl. rechargeable battery) 2.4 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
