Profiling nibbler

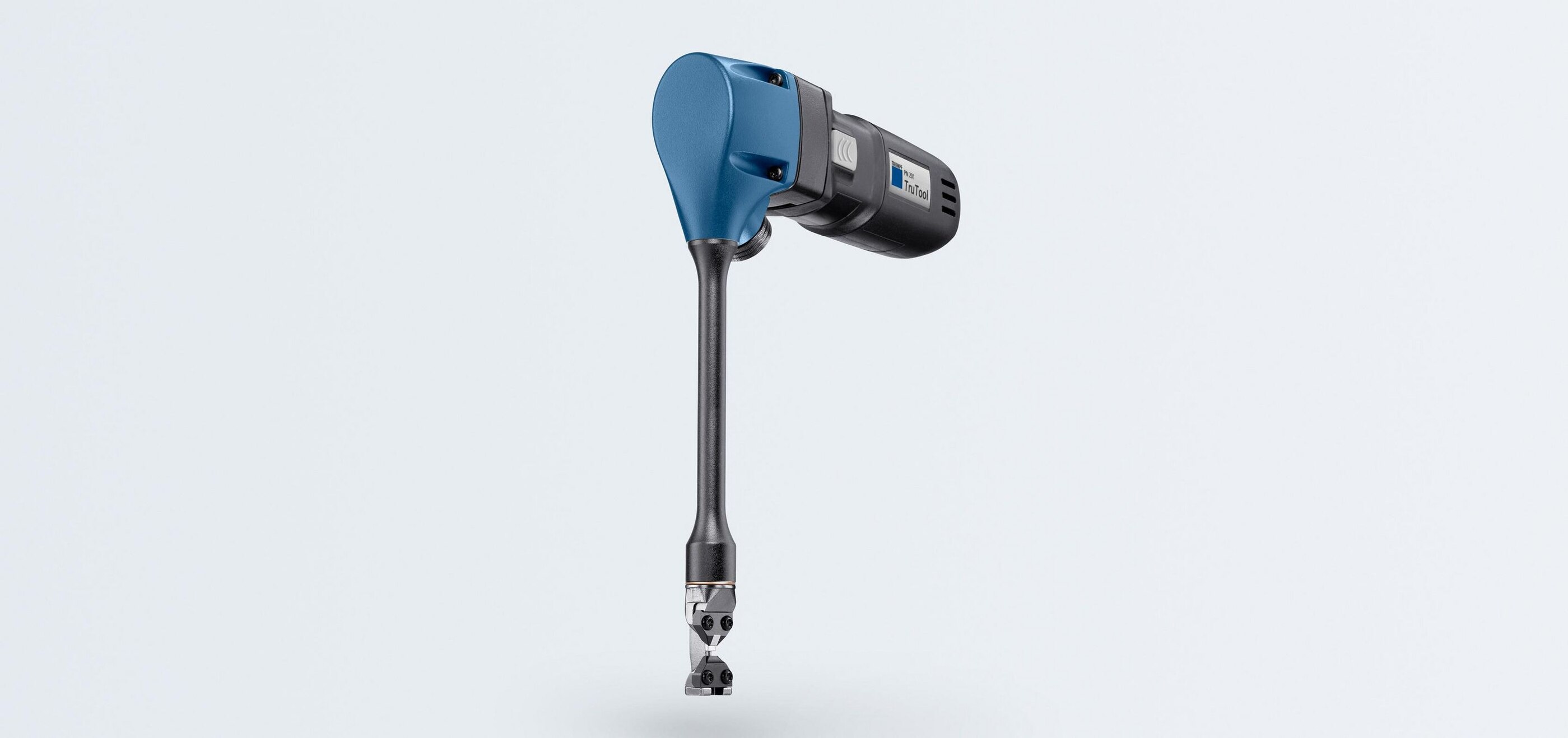

TruTool PN 201

Profiling nibbler

TruTool PN 201

For cutting deep trapezoidal sheets

Powerful with long tool

The TruTool PN 201 is a machine with a long tool that is particularly well-suited to deep trapezoidal sheets of up to 6.37 in. The tool can be rotated 360° on the spot. The TruTool PN 201 is an extremely powerful machine for different sheet thicknesses. It can handle up to 0.078 in. in mild steel, and up to 0.039 in. in high-tensile sheet metal. The cutting direction, punch, and die carrier can be changed quickly, without the need for tools. You can select various tool depths to broaden the areas of application. It is worth mentioning that the machine is available as a set with a long and short tool.

Machine with long tool

Primarily for processing profile depths of up to 6.37 in. Also well-suited to C-L-U profiles.

Ideal for hard-to-reach places

You can adjust the working direction through 360° in steps of 45° easily, without the need for tools.

Minimizes setup times

The punch and die carrier can be changed quickly without the need for tools.

Unbeatably fast

Fast and powerful with 7 ft. per minute in 57,000 mild steel.

Video on the area of application 1 machine – three tools: TruTool N 200, TruTool PN 200, and TruTool PN 201

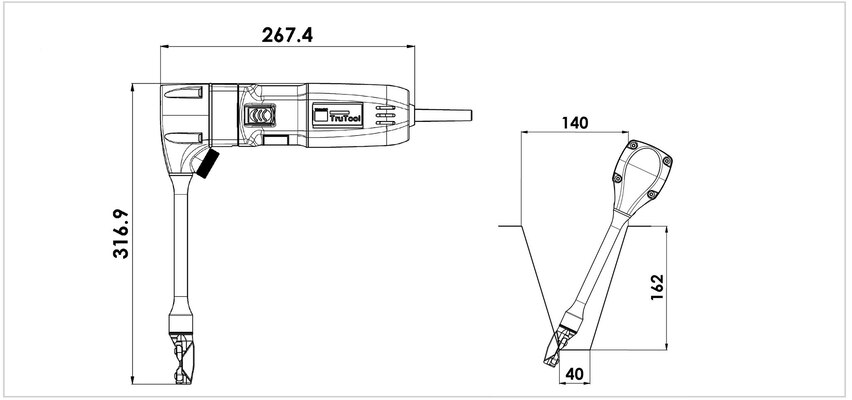

TruTool PN 201, dimensional drawing

Can be retrofitted for flexible work

The TruTool PN 201, PN 200, and N 200 are built on the same multi-functional machine base. This means that you are able to add another tool to your machine at any time. Each machine has its own particular strengths for processing different sheet metal: TruTool N 200 for flat and corrugated sheet; TruTool PN 200 for trapezoidal sheets up to 3.34 in. deep and C, L, and U profiles; and TruTool PN 201 for trapezoidal sheets up to 6.37 in. in depth.

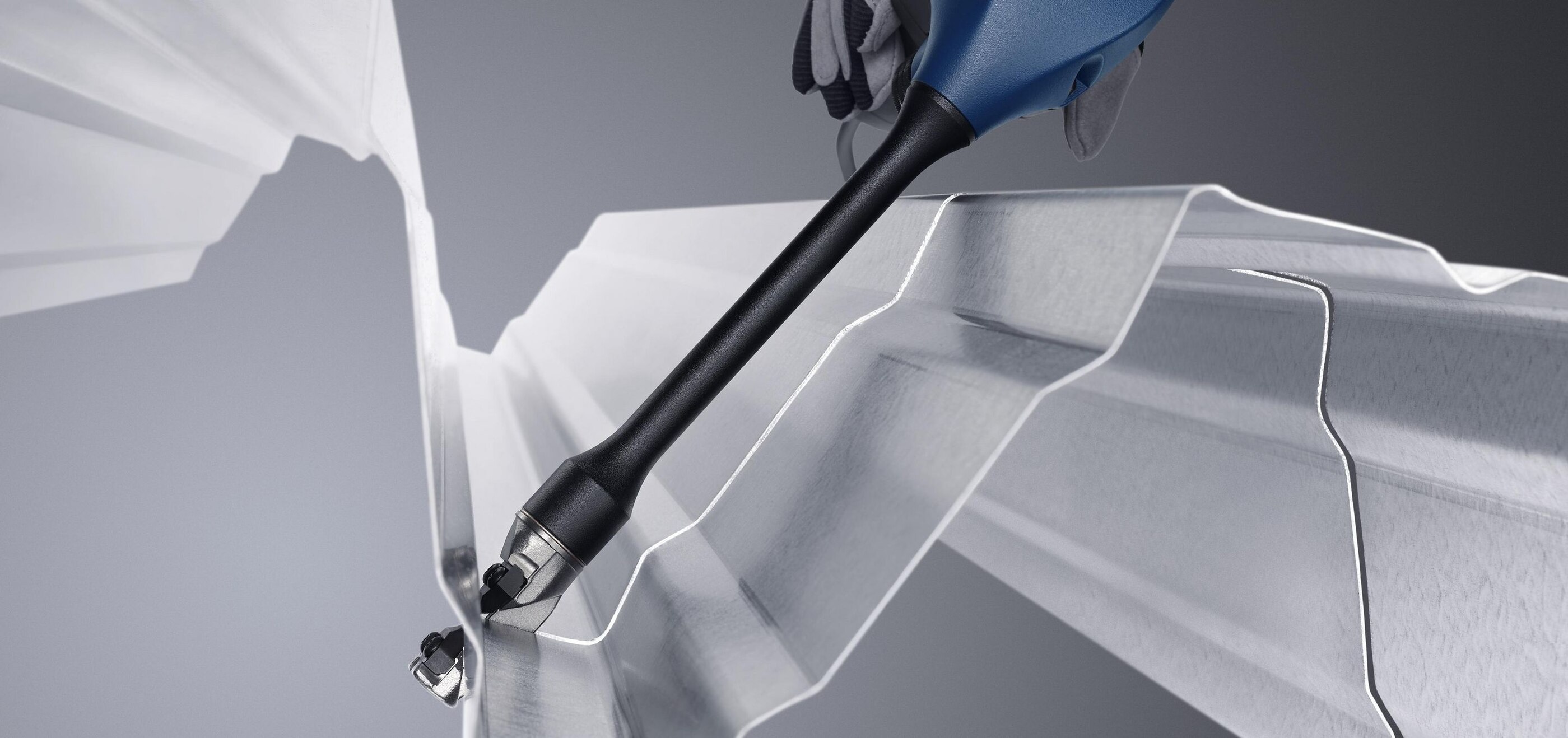

Trapezoidal sheet

For cutting profile depths of up to 162 mm deep and 140 mm / 40 mm wide. For straight and diagonal cuts.

Profiles

For cutting C-L-U profiles.

The following consumables and the corresponding accessories are included in the scope of delivery.

Wear plate (integrated)
1 unit 2260208
Punch guide (integrated)
1 unit 1884927
Standard die (integrated)
1 unit 2260207
Standard punch (integrated)
1 unit 2260206
1 hexagonal wrench T x 20
1 unit 0144680
TRUMPF Box S1
1 unit 1763681

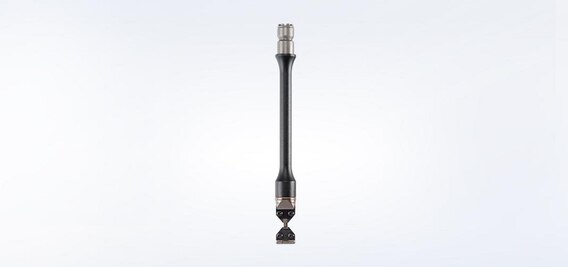

Tool PN 201 (integrated)
1 unit 1750692

Find the right consumables and accessories for your machine here.

Punch guide

1 unit  1884927
Set of 2  1264367
Set

2 x punch, 1 x die and 2 x wear plate

Set of 1  1429289
Die P1

Thin-sheet die up to sheet thickness 0.039 in.

1 unit  2260209
Wear plate

Protects the die holder against excessive wear

Set of 2  1429275
Set of 5  1429276
1 unit  2260208
Standard punch

Set of 5  1315713
Set of 2  2260376
1 unit  2260206
Standard die

Set of 2  1264153
Set of 5  1264154
1 unit  2260207
Punching and nibbling oil for aluminum

1000 ml  0125874
Punching and nibbling oil for steel

500 ml  0103387
TRUMPF Box S1

1 unit  1763681
Tool TruTool N 200

1 unit  1750694
Tool TruTool PN 200

1 unit  2287065
TruTool PN 201
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 2 mm
Maximum sheet thickness, steel 600 N/mm² 1.5 mm
Maximum sheet thickness, steel 800 N/mm² 1 mm
Maximum sheet thickness, aluminium up to 250 N/mm² 3 mm
Radii
Smallest radius 50 mm
General
Working speed (max.) 2.2 m/min
Starting hole diameter 24 mm
Nominal power consumption 550 W
Dimensions
Length 267 mm
Height 317 mm
Weight
Weight 2 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
