Powerful and flexible for profiles, up to a depth of 3.4 inches

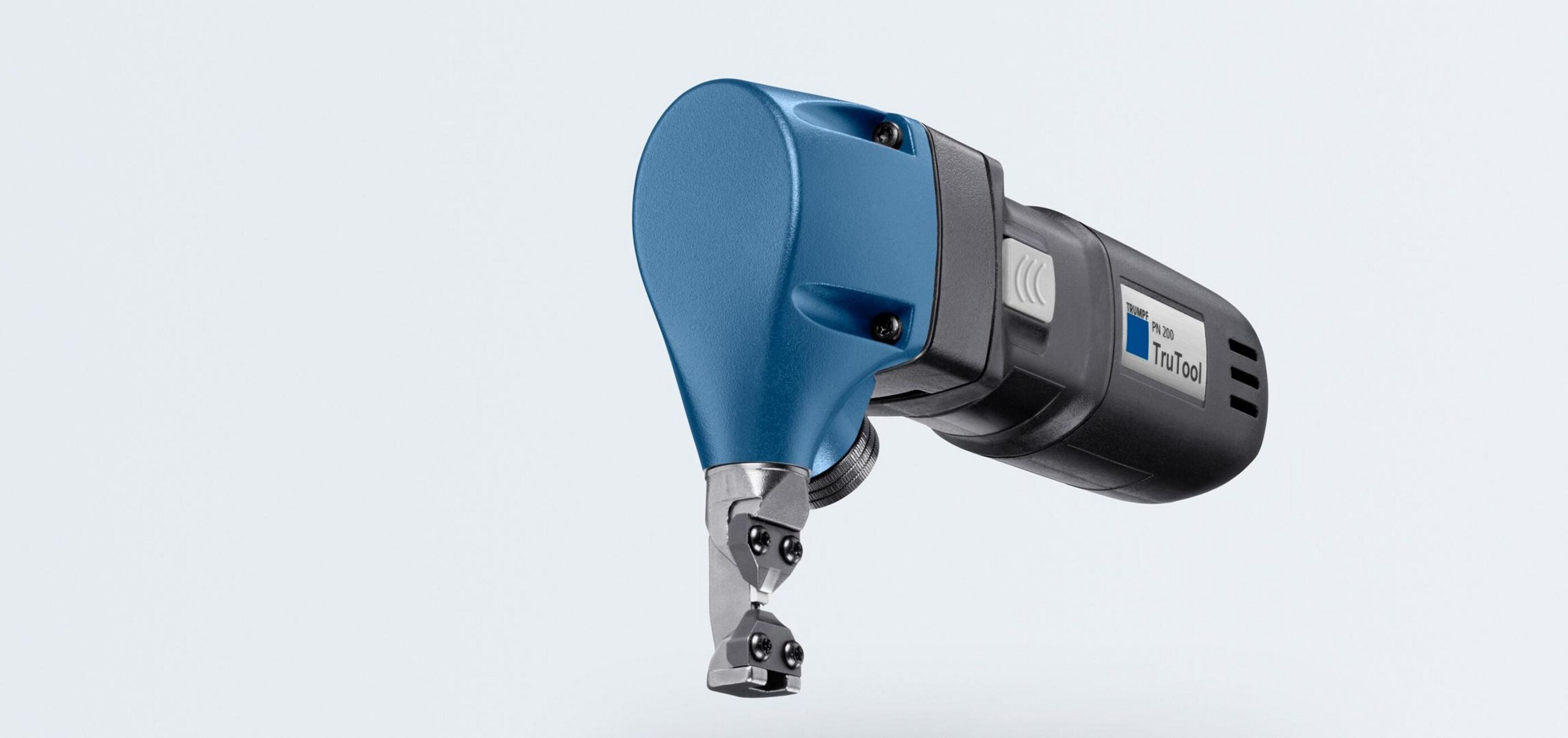

With its short tool, the TruTool PN 200 is specifically designed for trapezoidal sheets up to a profile depth of 3.4 inches and C-L-U profiles. Its performance is powerful enough for up to 0.08 inches in mild steel and 0.04 inches in stainless steel and it even cuts doubled sheets. You can also rotate the tool through 360° on the spot. The cutting direction, punch, and die carrier can be changed quickly, without the need for tools. You can choose from various tool depths to broaden the areas of application.
For processing profile depths of up to 3.4 inches and C, L, and U profiles. It is also well-suited for corrugated sheet.
You can easily adjust the working direction through 360 degrees, in steps of 45 degrees, without tools.

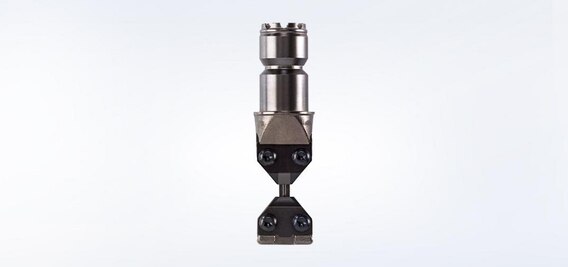

The punch and die carrier can be changed quickly without tools.
Fast and powerful with 7 feet per minute in 57,000 mild steel.
Trapezoidal sheet
For cutting profile depths of up to 3.4 inches deep and 5.2 inches / 1.57 inches wide. For straight and diagonal cuts.

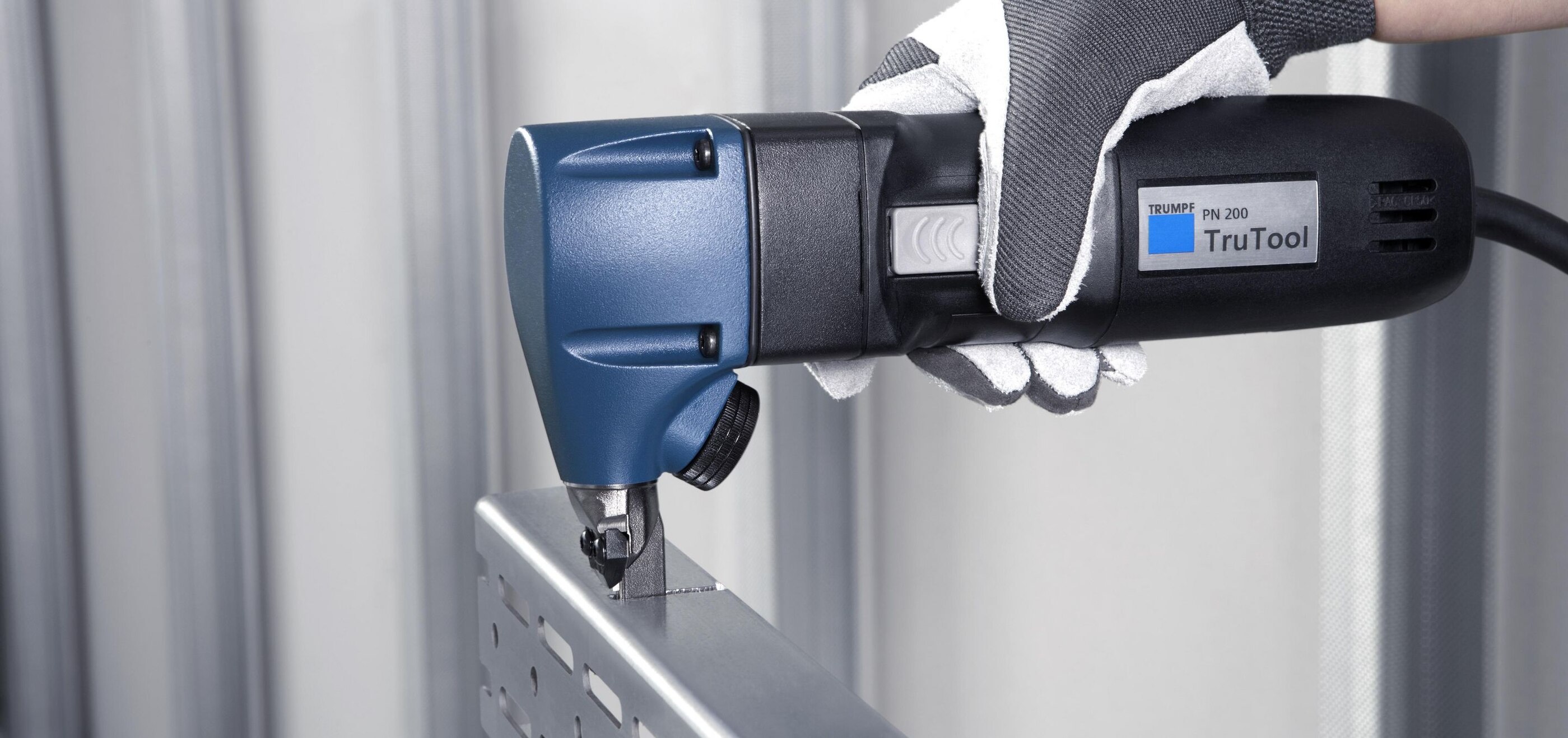

Profiles
For cutting C-L-U profiles.
Corrugated sheet
For trimming to length and cutting. For diagonal cuts, interior cutouts, and radial cuts.
The following consumables and the corresponding accessories are included in the scope of delivery.
Find the right consumables and accessories for your machine here.

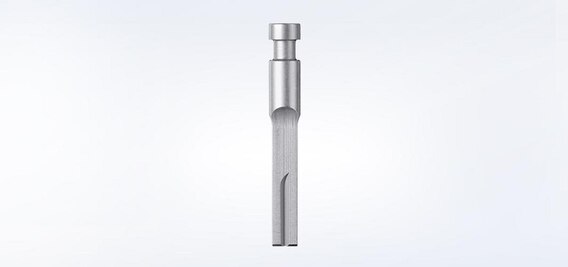

2 x punch, 1 x die and 2 x wear plate

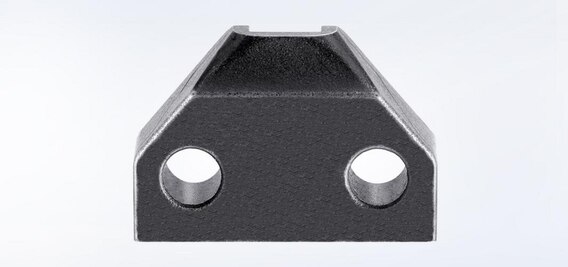

Thin-sheet die up to sheet thickness 0.039 in.

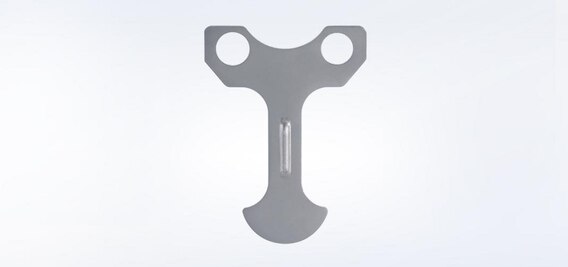

Protects the die holder against excessive wear
TruTool PN 200
|
|
---|---|
Maximum sheet thicknesses | |
Maximum sheet thickness, steel 400 N/mm² | 2 mm |
Maximum sheet thickness, steel 600 N/mm² | 1.5 mm |
Maximum sheet thickness, steel 800 N/mm² | 1 mm |
Maximum sheet thickness, aluminium up to 250 N/mm² | 3 mm |
Radii | |
Smallest radius | 50 mm |
General | |
Working speed (max.) | 2.1 m/min |
Starting hole diameter | 24 mm |
Nominal power consumption | 550 W |

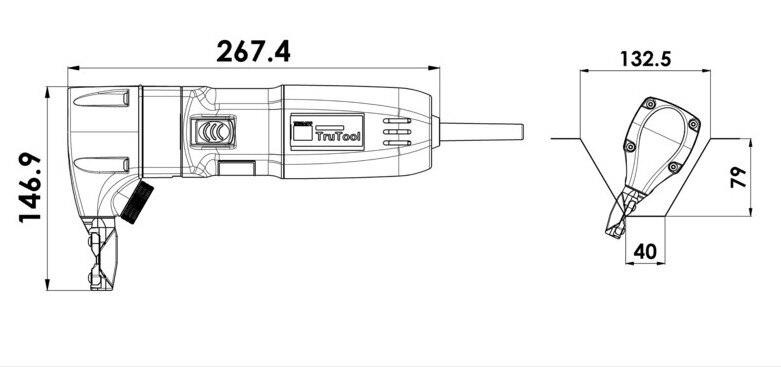

Dimensions | |
Length | 267 mm |
Height | 147 mm |
Weight | |
Weight | 1.8 kg |
The technical data of all product versions as a download.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
