Deburrers

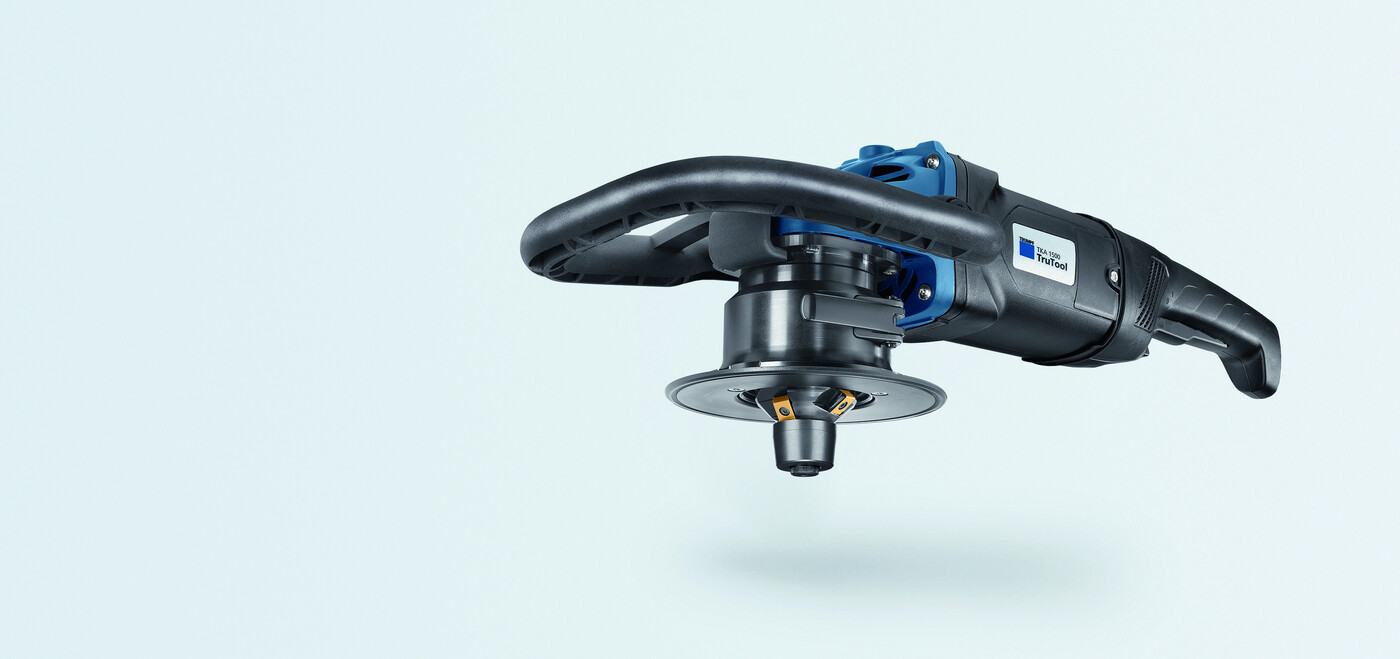

TruTool TKA 1500

Deburrers

TruTool TKA 1500

For holes from 80 mm

Uncompromisingly good edges

The TruTool TKA 1500 is equipped with a powerful and robust 2600 W motor, which at the same time will impress you with its extremely low noise level and enable you to work without getting tired. The resulting stable machine guidance in combination with the ergonomic guide and motor handle also has a positive effect on the chamfer quality. You can create chamfer lengths of up to 15 mm and fix them in a continuously adjustable manner and without tools. The result: high-quality, repeatable edges right away - without rework. With the TruTool TKA 1500 you can create clean visible edges, break off sharp edges, add a radius or prepare a weld seam. Any oxidation or deformation of the material is avoided.

Ergonomic operation

The handle shape, size and positioning are perfectly matched to each other. This not only ensures safe machine guidance, but also supports the chamfer quality.

In the blink of an eye

Chamfer lengths can be set as required without the need for any tools, with a max. ¾ manual turn. In this way, you have a clear view of the dial ring

Consistent edge quality

High-quality results with burr- and oxide-free surfaces, without material change and at a constant angle adjustment.

Versatile use

For straight edges, inner and outer contours and holes from 80 mm.

Simply get started

The stop prism ensures easy run-in to the sheet metal for straight sheet metal and when processing outer contours.

2 in 1

At the same time, the stop prism acts as chip protection. The chips fall on the floor in a controlled manner, ensuring a high level of occupational safety.

Edge trimmers: Video on the area of application

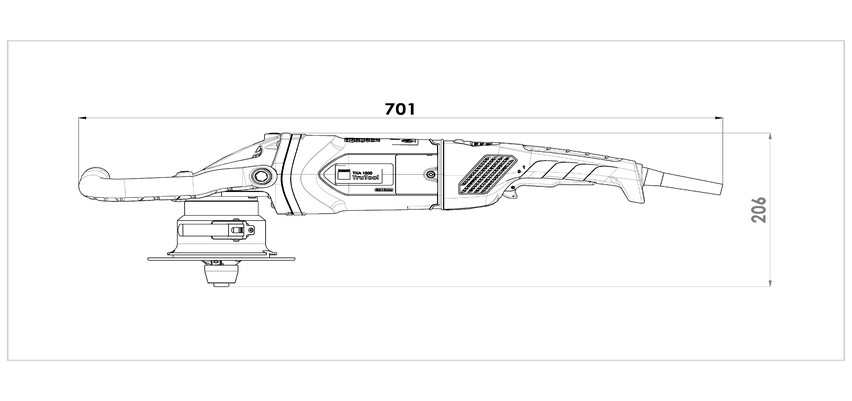

Dimensional drawing - TruTool TKA 1500

This is speed

TruTool TKA 1500 is equipped with a powerful motor with a low noise level. This allows you to create chamfer lengths of up to 11 mm in one operation. For chamfer lengths from 11 mm to 15 mm, two steps are required. For example, a 15 mm chamfer length can be produced by achieving 11 mm in the first operation and the rest in step two (information for the 230 V motor)

Long service life

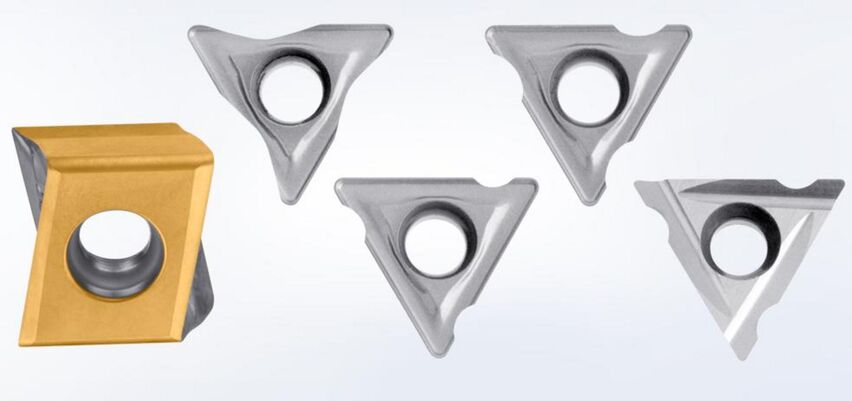

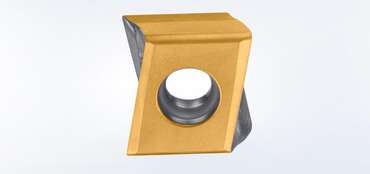

We offer high-quality multi-edge cutters and radius multi-edge cutters for a wide range of materials. Standard multi-edge cutters have four cutting edges. In contrast, radius multi-edge cutters have three cutting edges.

With or without

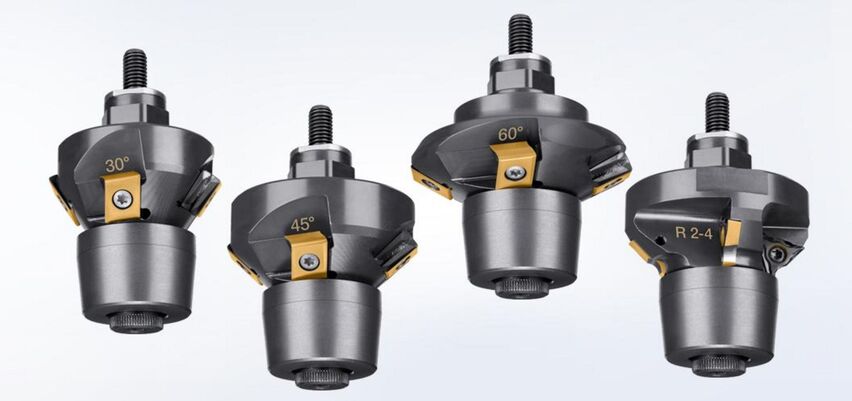

The TruTool TKA 1500 is delivered with the 45° multi-edge cutter mount as standard. You can also purchase the machine without tools and choose the 30°, 37.5° or 60° multi-edge cutter mount or the radius multi-edge cutter mount to suit your application.

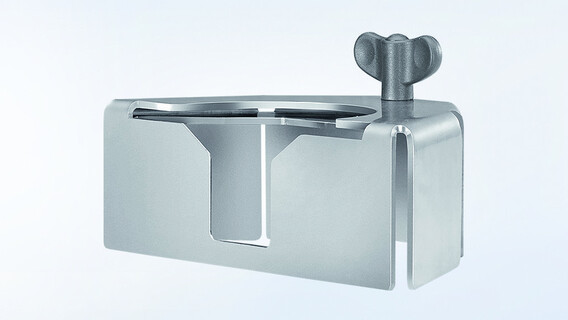

Simply get started - and work without chips

The high-quality stop prism is made of stainless steel and ensures optimal machine guidance and easy run-in to the sheet metal. This applies when you are processing straight sheet metal and outer contours. In addition, the stop prism also serves as a practical protection against chips and the chips fall to the floor in a controlled manner. This also increases safety in the workplace.

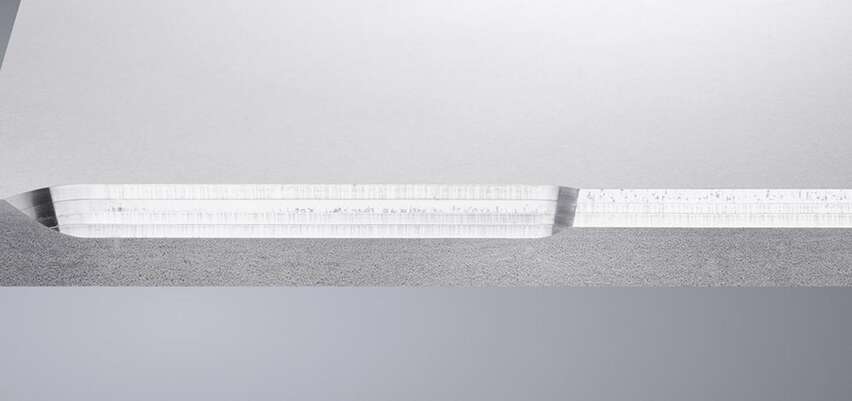

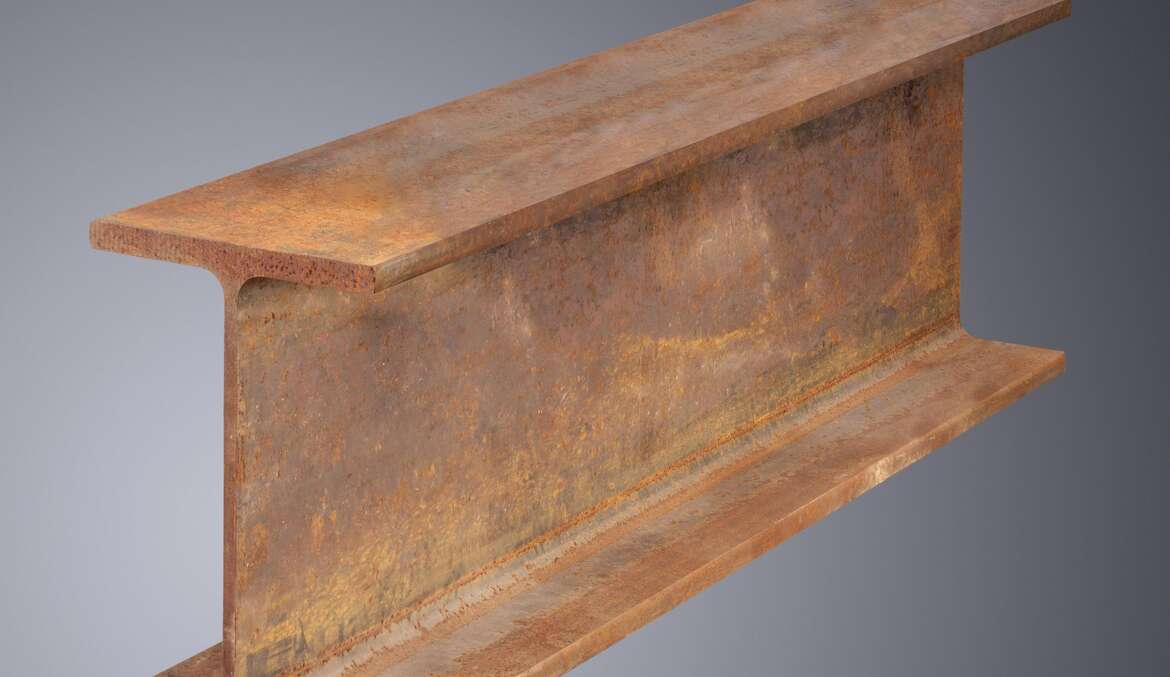

T-beam and flat sheet

For rounds with a radius of 2 mm, 3 mm, or 4 mm. For deburring and weld seam preparation.

For inner and outer edges

For rounds with a radius of 2 mm, 3 mm, or 4 mm. For deburring and weld seam preparation.

The following consumables and the corresponding accessories are included in the scope of delivery.

Stop prism, for easy run-in to the sheet metal
1 unit 2767143
Lubricating grease "G3", 100 g
1 unit 0353969
4 multi-edge cutters. For steel, stainless steel and aluminum
Integrated
45° multi-edge cutter mount
Integrated
Case
1 unit 2398010
Box for small parts
1 unit 0353966
Safety glasses
1 unit 2488915
Screwdriver set
1 set 2467043

Find the right consumables and accessories for your machine here.

Punching and nibbling oil for aluminum

1000 ml  0125874

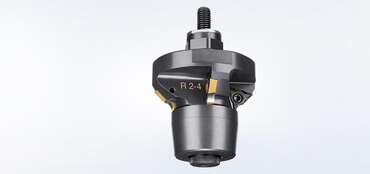

Multi-edge cutter mount R

With impeller Ø 36.2 mm for 4 multi-edge cutters.

1 unit  2423977
Punching and nibbling oil for steel

500 ml  0103387
Stop prism

Helps with the run-in to the sheet metal and simultaneously acts as chip protection

1 unit  2767143
60° multi-edge cutter mount

With impeller Ø 36.2 mm for 4 multi-edge cutters

1 unit  2423976
Safety glasses

1 piece   2488915
Multi-edge cutter mount 37.5°

With impeller Ø 36.2 mm for 4 multi-edge cutters

1 unit  2731086

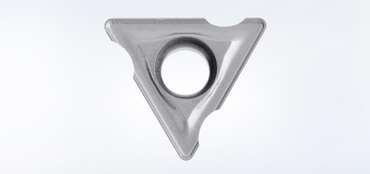

Multi-edge cutters ST radius 3

For steel and aluminum

Set of 10  1232671
Set of 4  2435950

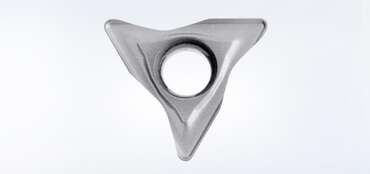

Multi-edge cutters ST radius 4

For steel and aluminum

Set of 4  2435971
Set of 10  1630310

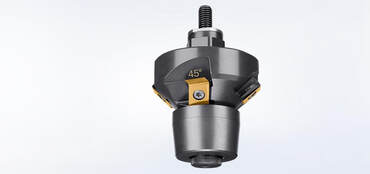

45° multi-edge cutter mount

With impeller Ø 36.2 mm for 4 multi-edge cutters

1 unit  2423973

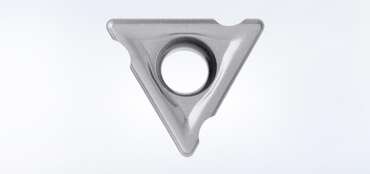

Multi-edge cutters ST radius 2

For steel and aluminum

Set of 10  1232676
Set of 4  2435949

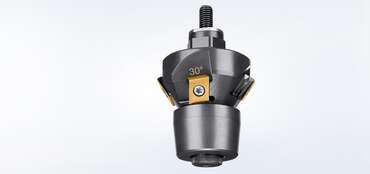

30° multi-edge cutter mount

With impeller Ø 36.2 mm for 4 multi-edge cutters

1 unit  2423975

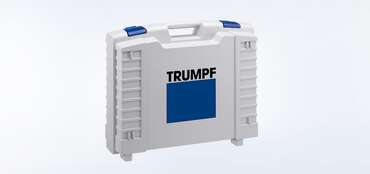

Case

1 unit  2398010
Box for small parts

1 unit  0353966
Lubricating grease G3

100 g  0353969

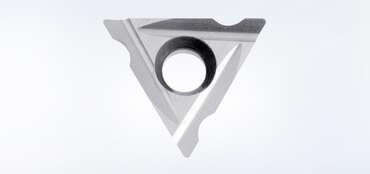

Multi-edge cutters CR radius 2

For stainless steel

Set of 10  1232691
Set of 4  2435973
Multi-edge cutters

For steel, stainless steel and aluminum

Set of 10  2420323
Set of 4  2420322

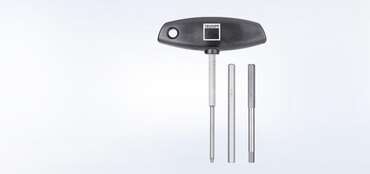

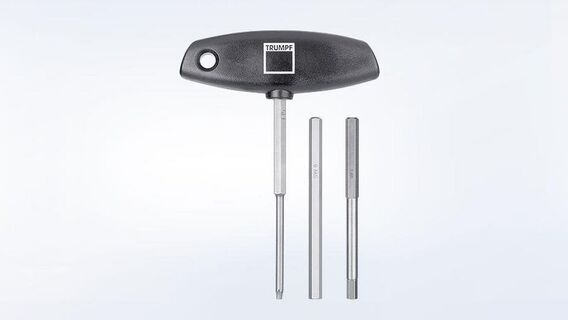

Screwdriver set

Allen 5 mm, Allen 6 mm and TORX screwdriver T15 x 118

1 unit  2467043

Excellent guidance

The guide handle provides maximum stability while applying the optimum pressure. The tool can then be safely and precisely guided. The low handle, just nine centimeters from the work surface, minimizes the tilting moment and enables you to guide the machine smoothly with minimal effort. A further benefit.

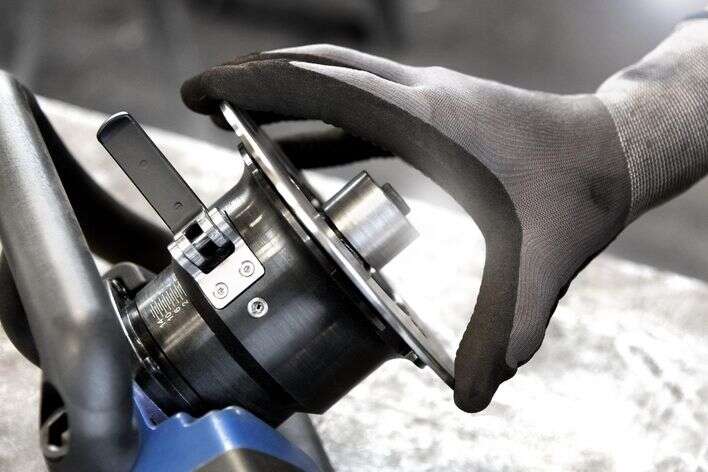

In the blink of an eye

You can set the chamfer length as required using a dial ring over the support plate. A maximum of a ¾ turn enables you to set the desired length precisely, quickly and without tools. The cutting depth setting is firmly fixed during machining and guarantees a consistent chamfer length. A dimensionally accurate fine adjustment is required to produce radii. The dial ring also makes this easy to achieve.

TruTool TKA 1500 without tool
TruTool TKA 1500 45° tool
Maximum chamfer lengths / Maximum chamfer heights
Maximum chamfer length, steel 400 N/mm² 15 mm 15 mm
Maximum chamfer height, steel 400 N/mm² 10.6 mm 10.6 mm
Maximum chamfer length, steel 600 N/mm² 12 mm 12 mm
Maximum chamfer height, steel 600 N/mm² 8.5 mm 8.5 mm
Maximum chamfer length, steel 800 N/mm² 10 mm 10 mm
Maximum chamfer height, steel 800 N/mm² 7.1 mm 7.1 mm
Maximum chamfer length, aluminium 250 N/mm² 15 mm 15 mm
Maximum chamfer height, aluminium 250 N/mm² 10.6 mm 10.6 mm
Radii
Smallest inner radius 30 mm 30 mm
Smallest bore hole (Ø) 55 mm 55 mm
General
Minimum sheet thickness 3 mm + hs 3 mm + hs
Working speed (max.) 1.5 m/min 1.5 m/min
Nominal power consumption 2600 W 2600 W
Dimensions
Length 679 mm 679 mm
Height 197 mm 197 mm
Weight
Weight 10 kg 10 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
