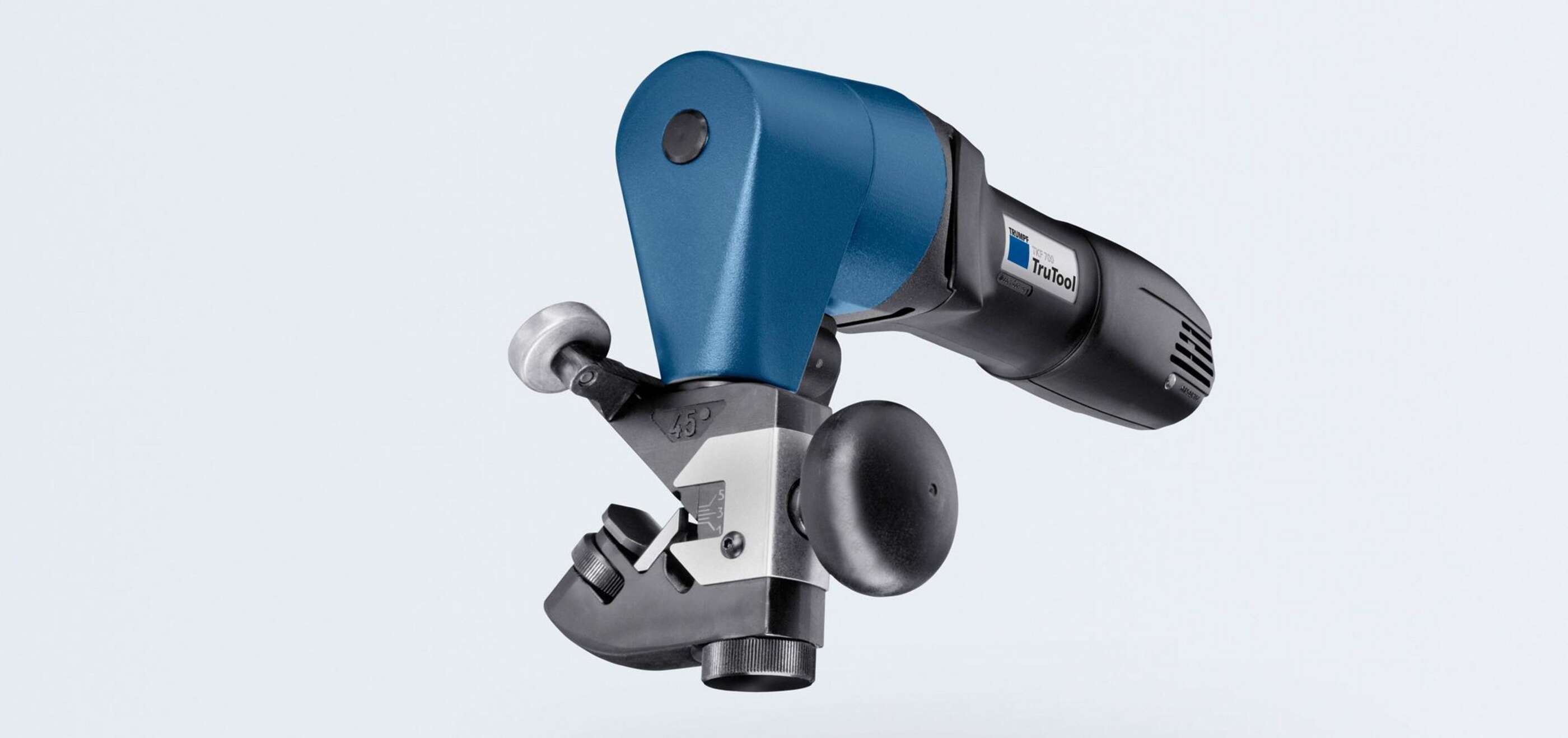

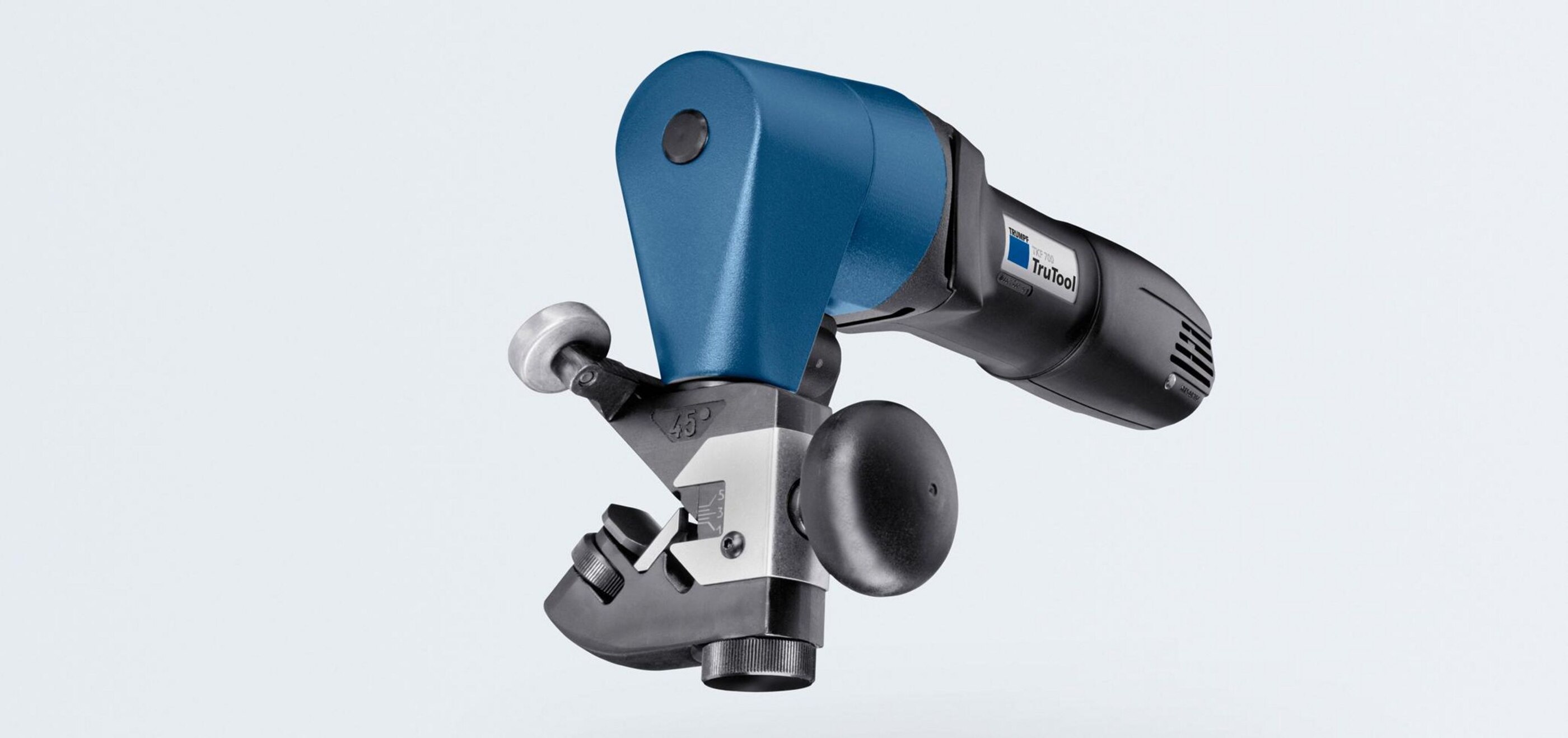

TruTool TKF 700

Consistent, oxide-free edges on interior cutouts and curves

REQUEST OFFER

Overview

Applications

Scope of delivery

Accessories

Technical data

Small and handy

With the TruTool TKF 700, you can achieve chamfer lengths up to 0.27 in. on straight sheets as well as on tubes. The quick-adjustment mechanism makes it easy to change the carrier and cutting direction. The TruTool TKF 700 is the lightest model in its class. The machine can be easily guided manually in a vertical, horizontal, or upside-down position, or can be used stationary in a work station. The round handle ensures comfortable work operations.

Lightweight

At just 12 lbs., the TruTool TKF 700 is the lightest and smallest model.

The right setting

The chamfer height and sheet thickness can be easily adjusted without tools.

Ideal for limited space conditions

You can rotate the cutting direction by 90° to the right or left.

30°, 37.5° or 45°

You can choose from three carriers for individual bevel angles.

Bevellers: Video on the area of application

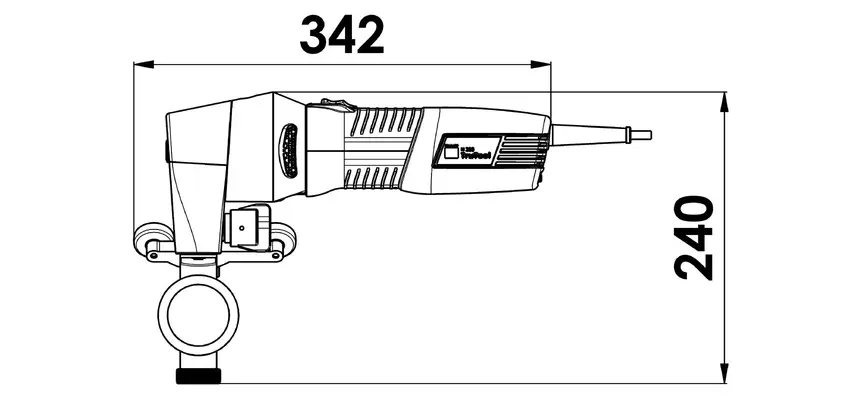

TruTool TKF 700, dimensional drawing

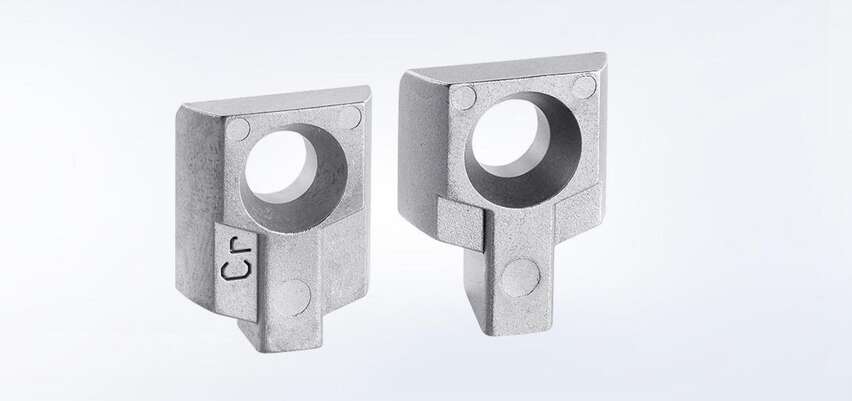

The right choice

The TruTool TKF 700 has two different cutters to choose from, which you can select and use depending on the strength of the sheets. The standard cutter is very well-suited for processing aluminum and mild steel up to 400 N/mm2. The high-tensile cutter is ideal for processing high-tensile materials from 85,000 – 114,000.

For small parts

The TruTool TKF 700 is well-suited for processing small workpieces. For this purpose, use the machine stationary in the work station.

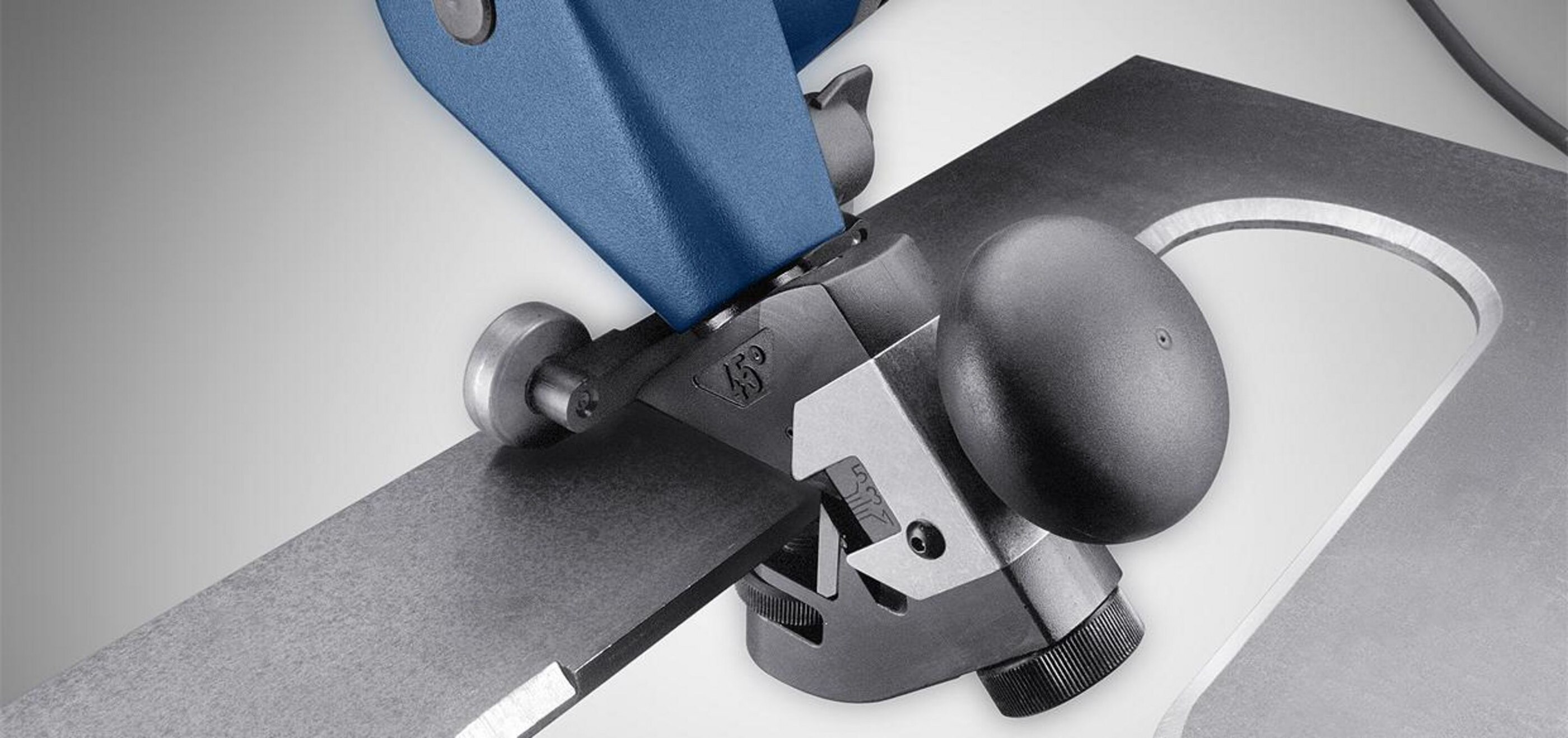

For straight edges and radius edges

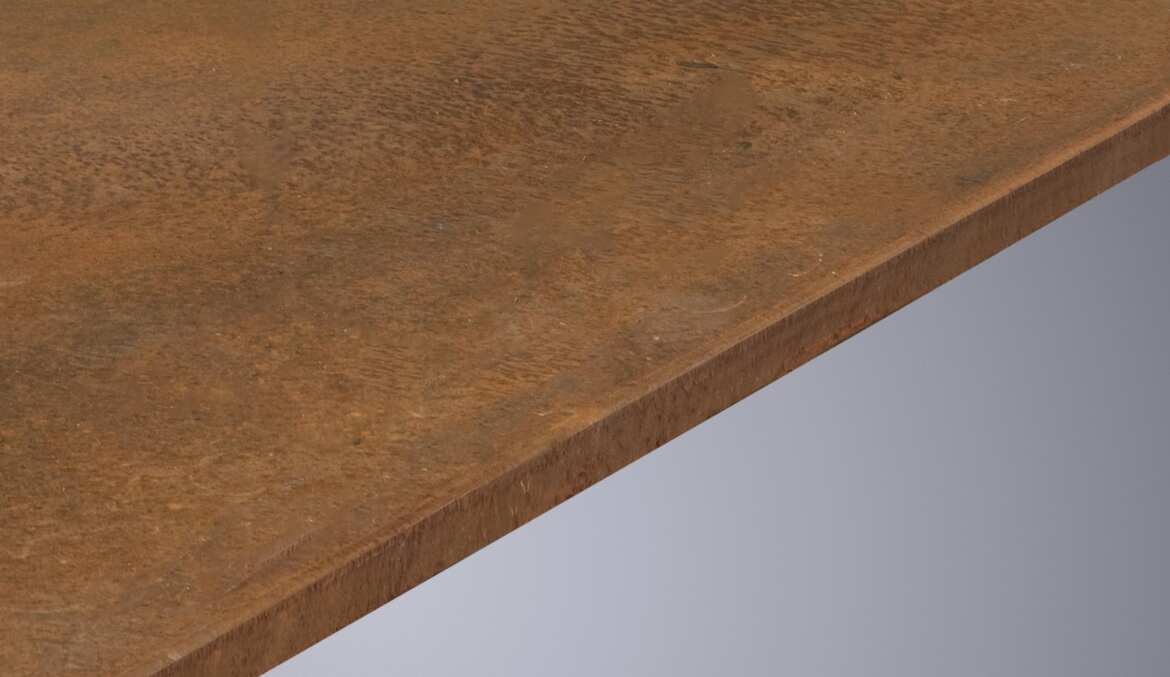

Weld seam preparation on outer and inner contours. With interior cutouts from 3.54 in. diameter and curved edges with radii from 1.57 in.

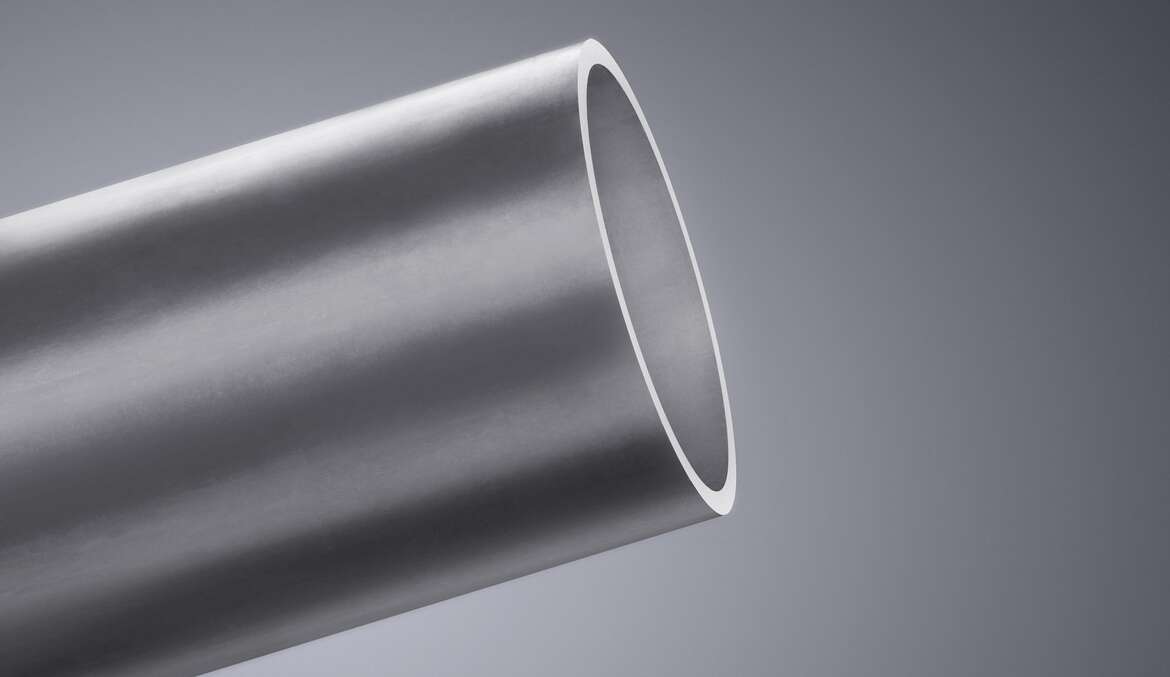

Tubes

Weld seam preparation on tubes with an inside diameter from 3.15 in.

The following consumables and the corresponding accessories are included in the scope of delivery.

Grease gun (filled with "G1") 2.5 oz

1 unit 1369906

TORX T 25 hexagonal wrench

1 unit 0131549

Standard cutter (integrated)

Integrated

Allen key DIN 911-5

1 unit 0067857

Allen key DIN 911-4

1 unit 0067857

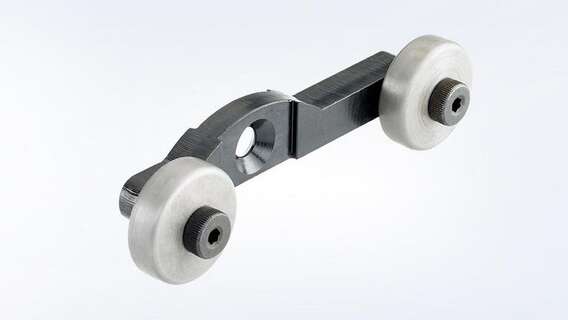

Roller holder complete

1 unit 0130868

TRUMPF Box M3

1 unit 1770951

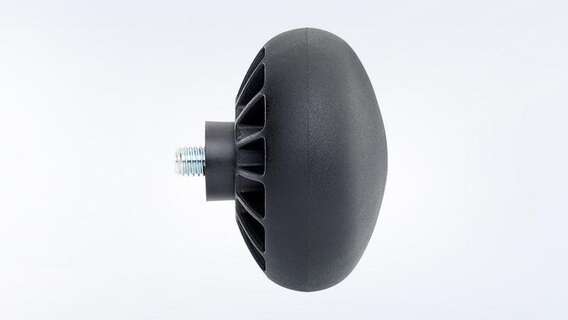

Handle

1 unit 0131063

Find the right consumables and accessories for your machine here

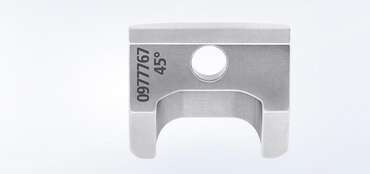

45° lower blank holder

Well-suited for 45° carrier

1 unit 0977765

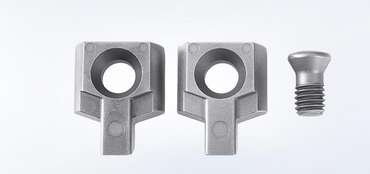

Set

2 x cutter and 1 x countersink screw

Set 0132371

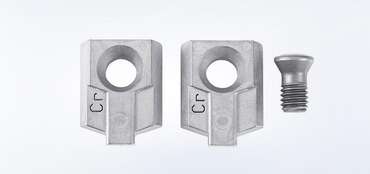

High-tensile set

2 x high-tensile cutter and 1 x countersink screw

Set 0132740

Standard cutter

For processing aluminum and mild steel up to 57,000

Set of 5 1264353

High-tensile cutter

For processing chromium steel from 85,000 - 114, 000

Set of 5 1264400

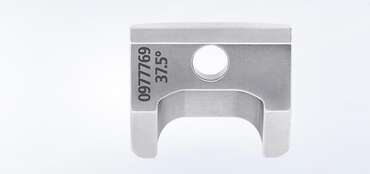

37.5° lower blank holder

Well-suited for 37.5° carrier

1 unit 0259379

Punching and nibbling oil for aluminum

1000 ml 0125874

Punching and nibbling oil for steel

500 ml 0103387

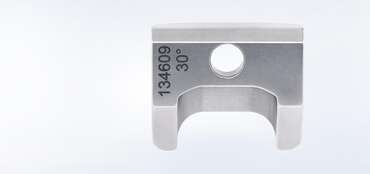

30° lower blank holder

Well-suited for 30° carrier

1 unit 0134609

TRUMPF Box M3

1 unit 1770951

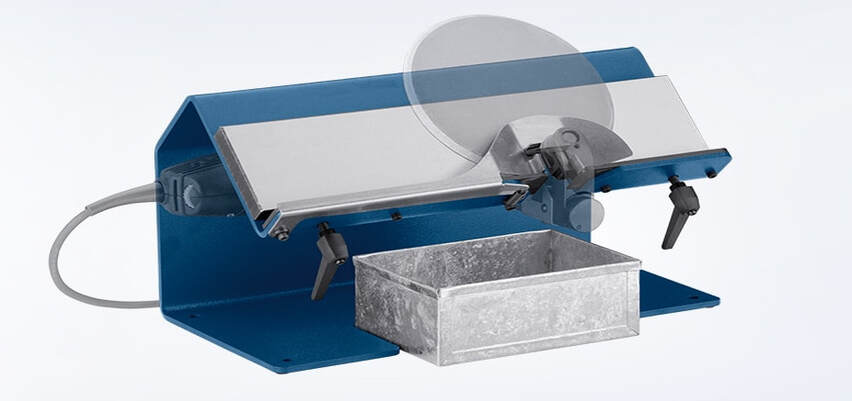

Work station

Ideal for processing small parts in stationary use

1 unit 0977764

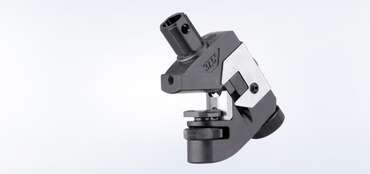

37.5° carrier

With a bevel angle of 37.5°

1 unit 0977769

30° carrier

With an angle of bevel of 30°

1 unit 0977770

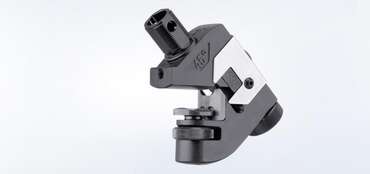

45° carrier

With a bevel angle of 45°

1 unit 0977767

	TruTool TKF 700 30° bevel angle	TruTool TKF 700 37.5° bevel angle	TruTool TKF 700 45° bevel angle
Maximum chamfer lengths / Maximum chamfer heights
Maximum chamfer length, steel 400 N/mm²	7 mm	7 mm	7 mm
Maximum chamfer height, steel 400 N/mm²	5 mm	5 mm	5 mm
Maximum chamfer length, steel 600 N/mm²	5.7 mm	5.7 mm	5.7 mm
Maximum chamfer height, steel 600 N/mm²	4 mm	4 mm	4 mm
Maximum chamfer length, steel 800 N/mm²	4 mm	4 mm	4 mm
Maximum chamfer height, steel 800 N/mm²	3 mm	3 mm	3 mm
Radii
Smallest radius	40 mm	40 mm	40 mm
General
Working speed (max.)	1.5 m/min	1.5 m/min	1.5 m/min
Nominal power consumption	1700 W	1700 W	1700 W
Sheet thickness	1 mm - 20 mm	1 mm - 20 mm	1 mm - 20 mm
Dimensions
Length	342 mm	342 mm	342 mm
Height	240 mm	240 mm	240 mm
Weight
Weight	5.3 kg	5.3 kg	5.3 kg

PDF <1MB

Technical data sheet

The technical data of all product versions as a download.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
