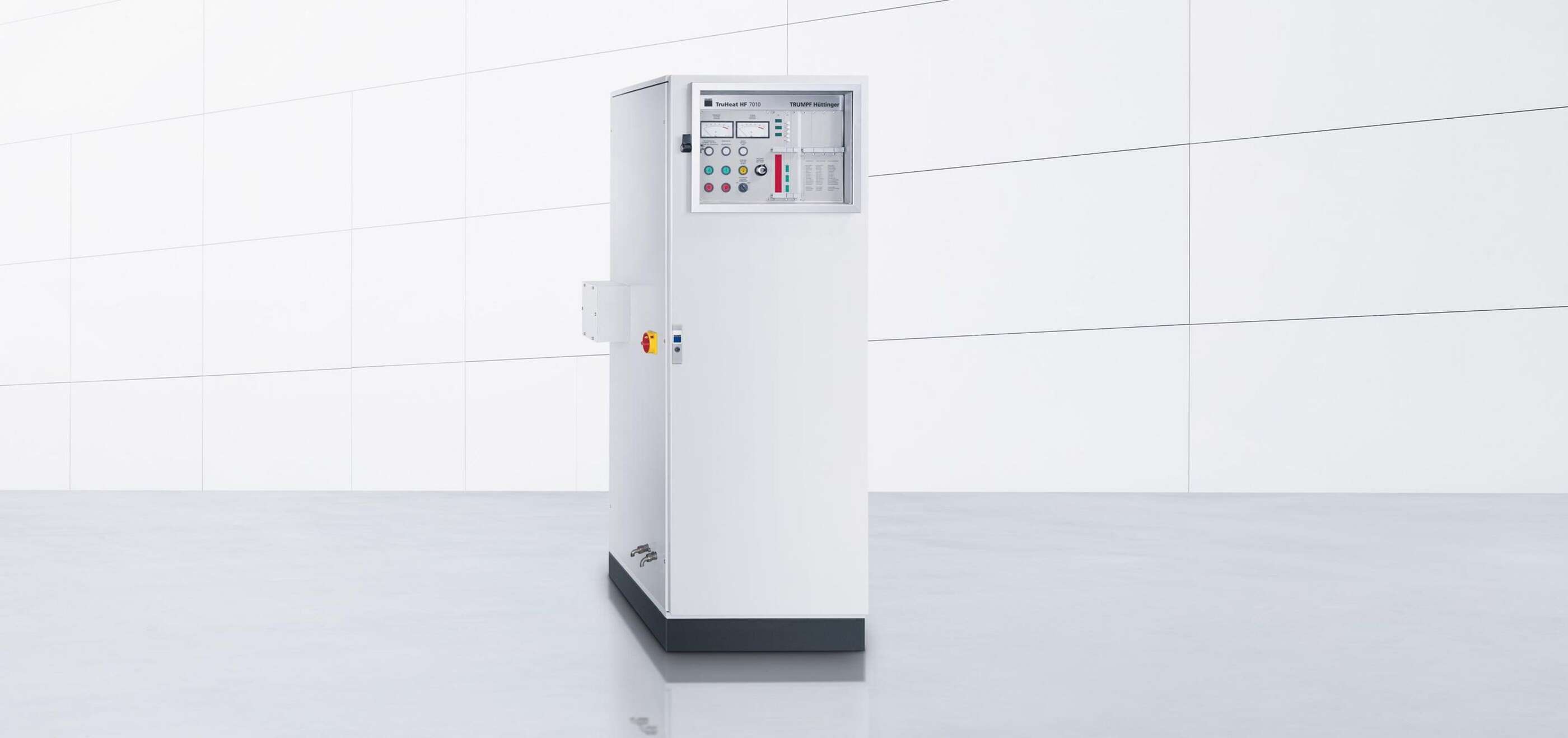

TruHeat HF Series 7000

High performance generator with proven tube technology

TO PRODUCT

Reliable high power for demanding heating processes

Even at high frequencies above 500 kHz, the TruHeat HF Series 7000 delivers constant and high power – ideal for uninterrupted long-term processes in the semi-conductor and photovoltaic industries, as well as for changing requirements in commercial heat treating. The TruHeat HF Series 7000 features generators you can rely on in any circumstance.

Proven tube technology

Guaranteed reliable process results even at frequencies above 500 kHz.

High and stable power levels

500 kW at frequencies up to 3000 kHz.

Large power bandwidth

Seven power units (10 kW to 500 kW) for a wide variety of induction applications.

Wide frequency range

400 kHz to 3000 kHz for optimal adjustment to the widest variety of heating processes.

High level of long-term stability even for critical processes

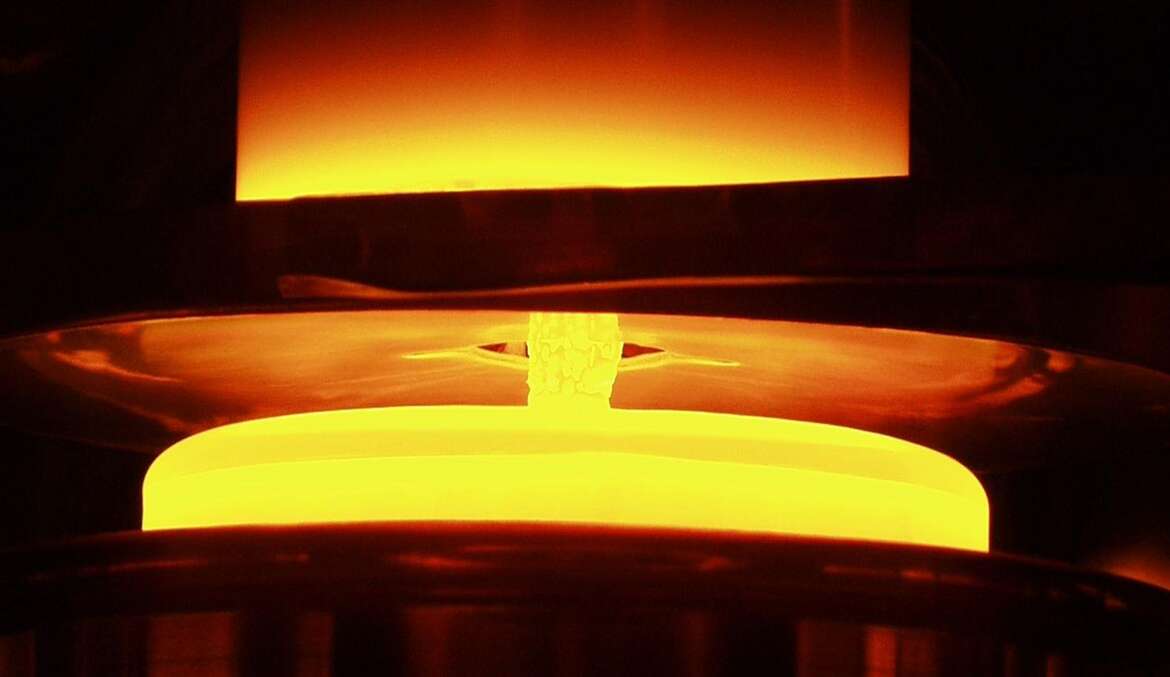

Floating zone (FZ) process for manufacturing high purity silicon.

Diverse applications

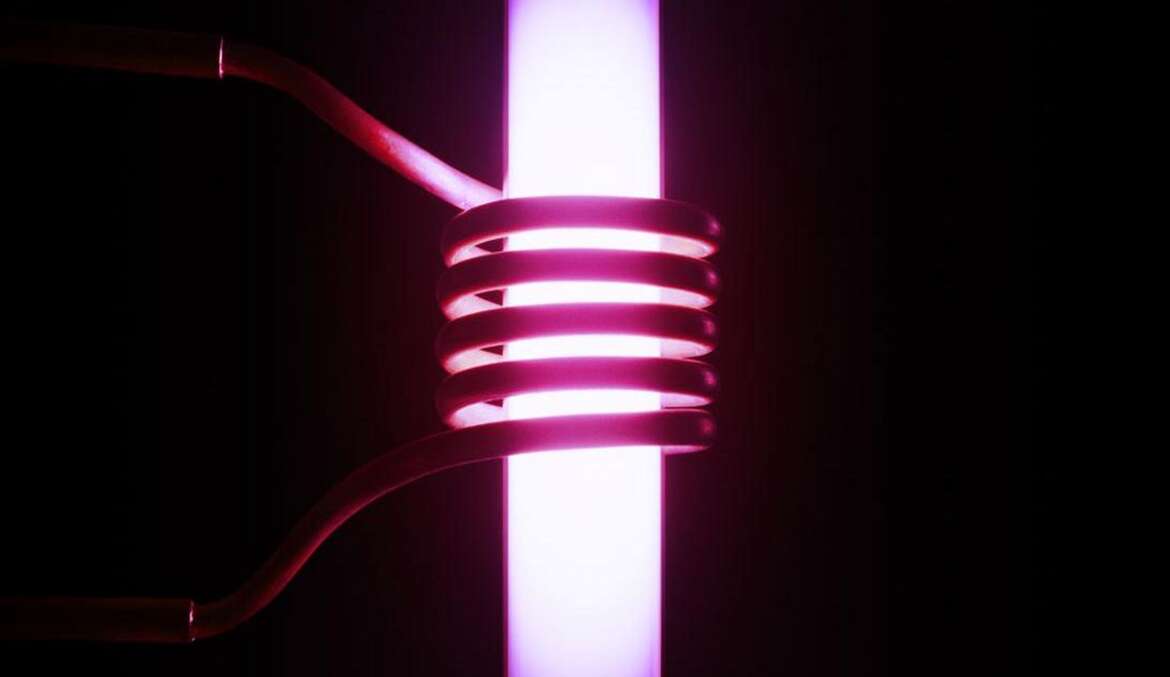

Inductively coupled plasma (ICP).

The best performance for your application

The robust design of the generator guarantees permanent availability in the industrial environment, thereby ensuring stable and uninterrupted operation with impressive productivity, even in critical long-term processes.

Proven tube technology means that the highest output frequencies and voltages can be generated; the integrated thyristor controller technology enables the fast and precise power adjustment. The generator and oscillating circuit are available as separate modules in order to set up space-optimized work stations.

Cancel

Compare products

Starting product Your starting product

1st comparison model 2nd comparison model (optional)

Compare now

TruHeat HF 7100
TruHeat HF 7030
TruHeat HF Series 7000
TruHeat HF 7060
TruHeat HF 7010

	TruHeat HF 7100 Compare product	TruHeat HF 7030 Compare product	TruHeat HF Series 7000 Compare product	TruHeat HF 7060 Compare product	TruHeat HF 7010 Compare product
Network connection data
Line voltage	(±10%)	(±10%)	(±10%)	(±10%)	(±10%)
Line frequency	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz
Line input power	210 kVA	63 kVA	252 kVA	126 kVA	21 kVA
Power factor	0.9	0.9	0.9	0.9	0.9
Output
Rated power	100 kW	30 kW	120 kW	60 kW	10 kW
Maximum output voltage	6600 V eff	6300 V eff	7000 V eff	6300 V eff	5000 V eff
Nominal operating frequency	400 kHz - 3000 kHz	400 kHz - 3000 kHz	400 kHz - 3000 kHz	400 kHz - 3000 kHz	400 kHz - 3000 kHz
Length, power cable	3 m - 4 m	3 m - 20 m	3 m - 4 m	3 m - 20 m	3 m - 20 m
Communication interfaces
Analog/digital	✓	✓	✓	✓	✓
Cooling requirements
Maximum water pressure	6 bar	6 bar	6 bar	6 bar	6 bar
Minimum pressure difference	3.5 bar	3.5 bar	3.5 bar	3.5 bar	3.5 bar
Minimum flow rate	100 l/min	30 l/min	120 l/min	60 l/min	10 l/min
Maximum coolant temperature	35 °C	35 °C	35 °C	35 °C	35 °C
Ambient conditions
Outside temperature	10 °C - 45 °C	10 °C - 45 °C	10 °C - 45 °C	10 °C - 45 °C	10 °C - 45 °C

Compare products End comparison End comparison	TruHeat HF 7100	TruHeat HF 7030	TruHeat HF Series 7000	TruHeat HF 7060	TruHeat HF 7010
Network connection data
Line voltage	(±10%)	(±10%)	(±10%)	(±10%)	(±10%)
Line frequency	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz	50 Hz - 60 Hz
Line input power	210 kVA	63 kVA	252 kVA	126 kVA	21 kVA
Power factor	0.9	0.9	0.9	0.9	0.9
Output
Rated power	100 kW	30 kW	120 kW	60 kW	10 kW
Maximum output voltage	6600 V eff	6300 V eff	7000 V eff	6300 V eff	5000 V eff
Nominal operating frequency	400 kHz - 3000 kHz	400 kHz - 3000 kHz	400 kHz - 3000 kHz	400 kHz - 3000 kHz	400 kHz - 3000 kHz
Length, power cable	3 m - 4 m	3 m - 20 m	3 m - 4 m	3 m - 20 m	3 m - 20 m
Communication interfaces
Analog/digital	✓	✓	✓	✓	✓
Cooling requirements
Maximum water pressure	6 bar	6 bar	6 bar	6 bar	6 bar
Minimum pressure difference	3.5 bar	3.5 bar	3.5 bar	3.5 bar	3.5 bar
Minimum flow rate	100 l/min	30 l/min	120 l/min	60 l/min	10 l/min
Maximum coolant temperature	35 °C	35 °C	35 °C	35 °C	35 °C
Ambient conditions
Outside temperature	10 °C - 45 °C	10 °C - 45 °C	10 °C - 45 °C	10 °C - 45 °C	10 °C - 45 °C

PDF <1MB

Technical data sheet

The technical data of all product versions as a download.

The RF generator can be optimally adapted to different system environments due to different options.

Remote control unit

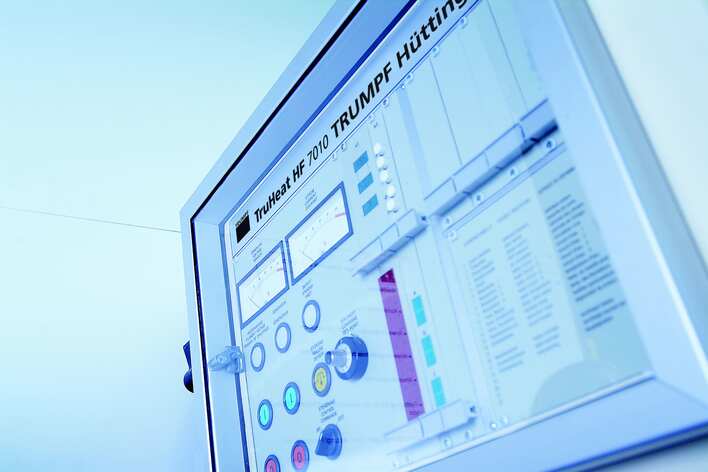

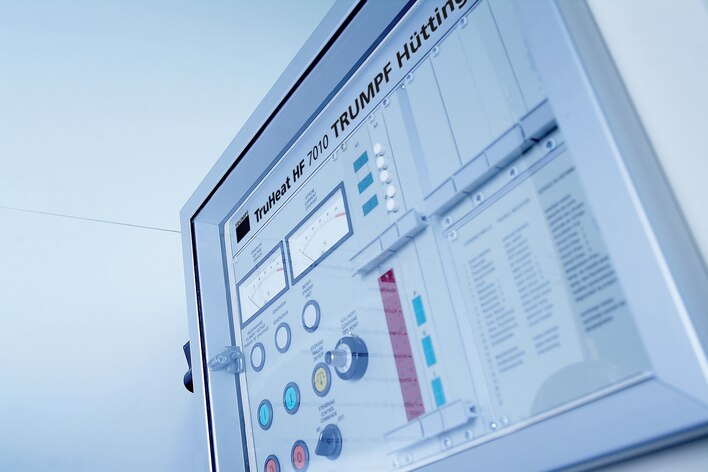

The remote control unit provides the same scope of functions as the control panel on the generator. This means you can operate the generator directly in the application environment while simultaneously monitoring the heating process.

Matchbox

Using a matchbox, known as an external circuit, the load (induction coil + workpiece) can be optimally adapted to the RF generator so that this can always output the maximum power. Various matchboxes are available for a variety of applications.

The choice of suitable system components means that the RF generator can be optimally adjusted to the required application.

Inductors

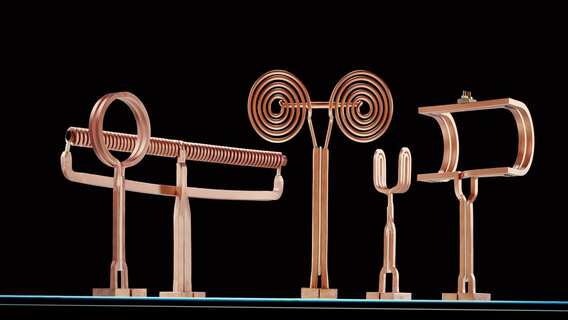

The inductor geometry is specifically adjusted for the required heating process (ring, line or mold inductor).

Pyrometers

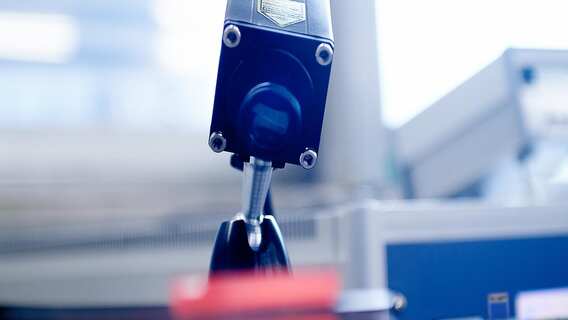

Pyrometers are used for non-contact temperature measurements on surfaces up to 3632 °F. A coupled program controller enables temperature profiles to be followed precisely.

Process cooler

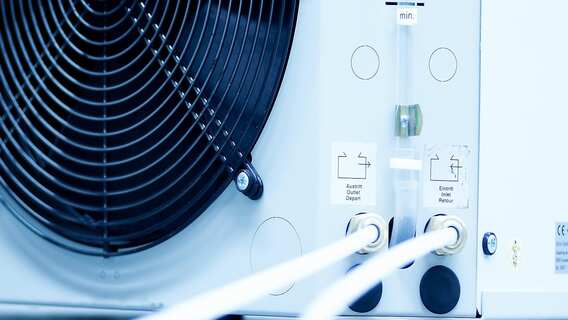

The process cooler ensures reliable dissipation of process heat. Versions are available for various power ranges.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
