The innovative Delta Drive not only saves space and expands your material handling - it also scores points when it comes to environmental protection. Working together with the solid-state laser, it reduces the system's power input by around 65% - which relieves your operating costs while also benefiting to the environment.
Efficient compact machine
The TruMatic 1000 fiber is a laser machine that punches holes, bends flanges, and forms threads. It is the world's most compact punch laser machine. Discover the clever solutions for part sorting and automated operation.
With a TruMatic machine, you benefit from all the advantages of punch and laser processing.
Together, the solid-state laser and Delta Drive save up to 65% in energy compared to a hydraulically driven punch laser machine.
With the robust TruFiber universal laser, you can achieve excellent productivity when slitting even non-ferrous metal.
The most compact punch laser machine in the world is 24% smaller than the previous model.
Small, laser cut parts are removed to the finished parts container in a reliable process.

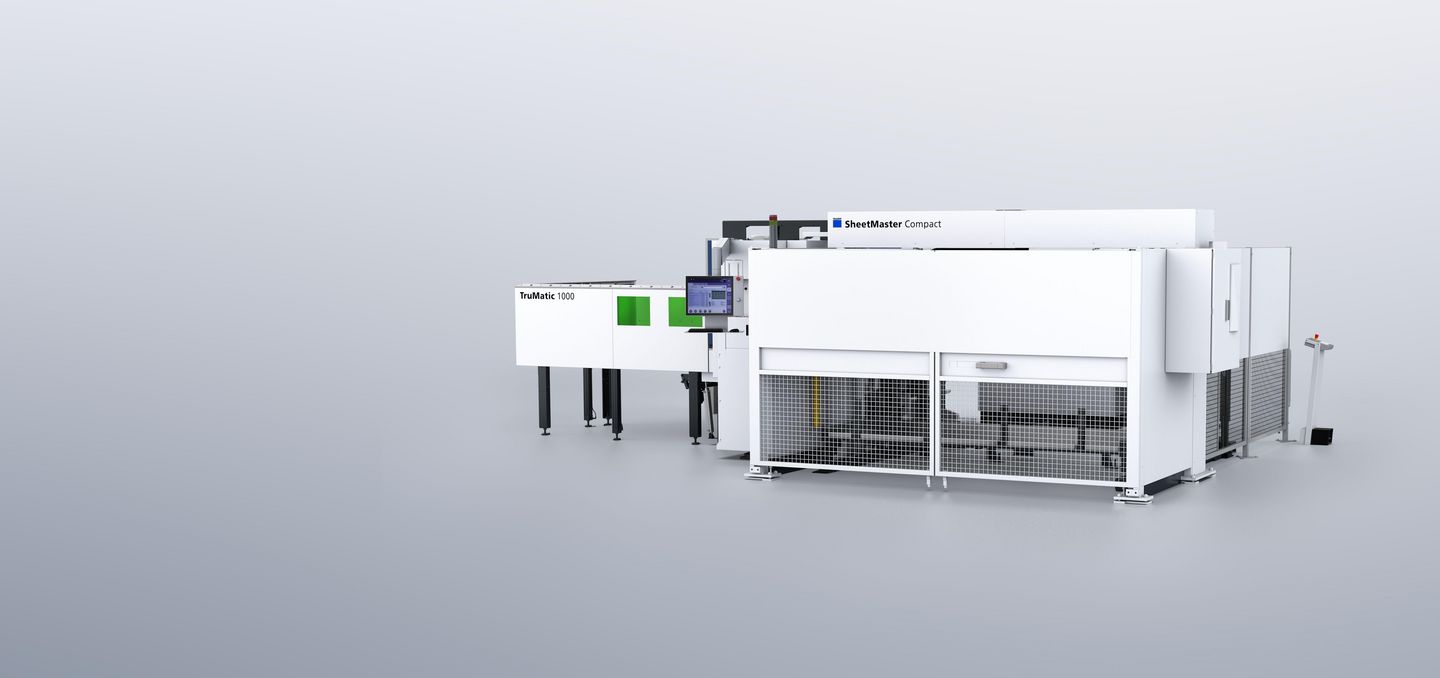

The SheetMaster Compact provides reliable loading and unloading processes.
Punching and laser cutting in one
Sample part with laser-cut contour and extrusions, roller beading, stepping, and marking produced with punching tools.
Material range
The TruFiber solid-state laser is resistant to back-reflections. Even highly reflective materials such as copper or brass can be processed without affecting process reliability.
Cost-effectively produce small parts
As a result of the "small part ejection" function, you can cost-effectively produce high quantities of small parts from relatively thick material
Numerous innovative solutions and functions make the TruMatic 1000 fiber the perfect entry-level model for punch laser processing.
Sustainability
With its hybrid axis concept and electric punch drive, the Delta Drive is extremely energy-efficient. Combined with the solid-state laser, it saves around 65% energy compared to a conventional punch laser machine. That significantly reduces your CO2 footprint.
Process reliability
Your TruMatic is equipped with a reliable universal cutting unit corresponding to the solid-state laser. This earns high marks due to its improved process reliability and simplified operation. Its robust design is built for everyday industrial use and makes it resistant to collisions.
The Delta Drive decouples the punch and the die and so enables new punch applications. One highlight of punch laser operation is process-reliable removal of small, laser-cut parts. The upper tool punches with a slight offset, which means that small parts do not fall through the die into the scrap container but instead slide through a part chute into waiting boxes.
Your machine automatically sorts parts up to a size of 7 x 7 in. Finished parts go through a chute into an intermediate buffer storage. There are four different boxes under the machine. The intermediate buffer storage moves to the correct box and adds the parts to this.
Depending on your requirements, you can choose between brush and ball tables.
Before a tool change, this function checks whether the sheet has actually been punched. In this way, the machine detects at an early stage when punches are broken, and can pass this information on to the operator. The smart punch monitoring function therefore avoids rejects, especially during night or weekend shifts.
Parts that are removed via the large part removal flap can be transported into boxes via conveyor belts.
The chip conveyor can be used to automatically transport punching slugs into a container.
Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.
Simple operation
It can be very easy to program punching or punching-laser parts – machine operation becomes as intuitive as when using a tablet or smartphone with the new Touchpoint-HMI from TRUMPF. It helps you finish the part much more quickly – and even novices will quickly learn how to work with the software.
TruTops Boost
Construct and program your laser, punching, and combination punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.
Software
The software portfolio from TRUMPF optimizes your entire production process – from the customer query to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customized Industry 4.0 solutions for your Smart Factory.
You can boost the productivity of your punching or punch laser machine with a tool adapter for up to ten inserts – in particular for small punching operations.
90° bends of different lengths up to 2.2 in.: When working with the MultiBend, there is no need for an additional operation on the bending machine.
Remove small laser cut parts with process reliability and separate finished parts from remaining parts at the same time.
TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.
Bring clarity to your procedures with our automation solutions. Employees can concentrate on their core tasks and customers will value you as a reliable supplier. You produce more cost-effectively and gain financial flexibility.
Loading + unloading
The SheetMaster Compact takes over the process-reliable loading of sheets as well as the unloading of microjoint sheets and scrap skeletons. In this way, the machine operates completely automatically, if required, with a load capacity of up to three tonnes. This increases productivity and also relieves the strain on the operator.
Sorting
The SortMaster Compact removes and sorts the parts from your punch laser machine fully automatically. Especially when it comes to small and complex parts, the individually controllable suction cups make it possible to remove parts in the optimum way. Due to the minimal installation area, there are no extra space requirements.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
