Overview

Technical data

Storage connection

Equipment

System examples

Flexible automation

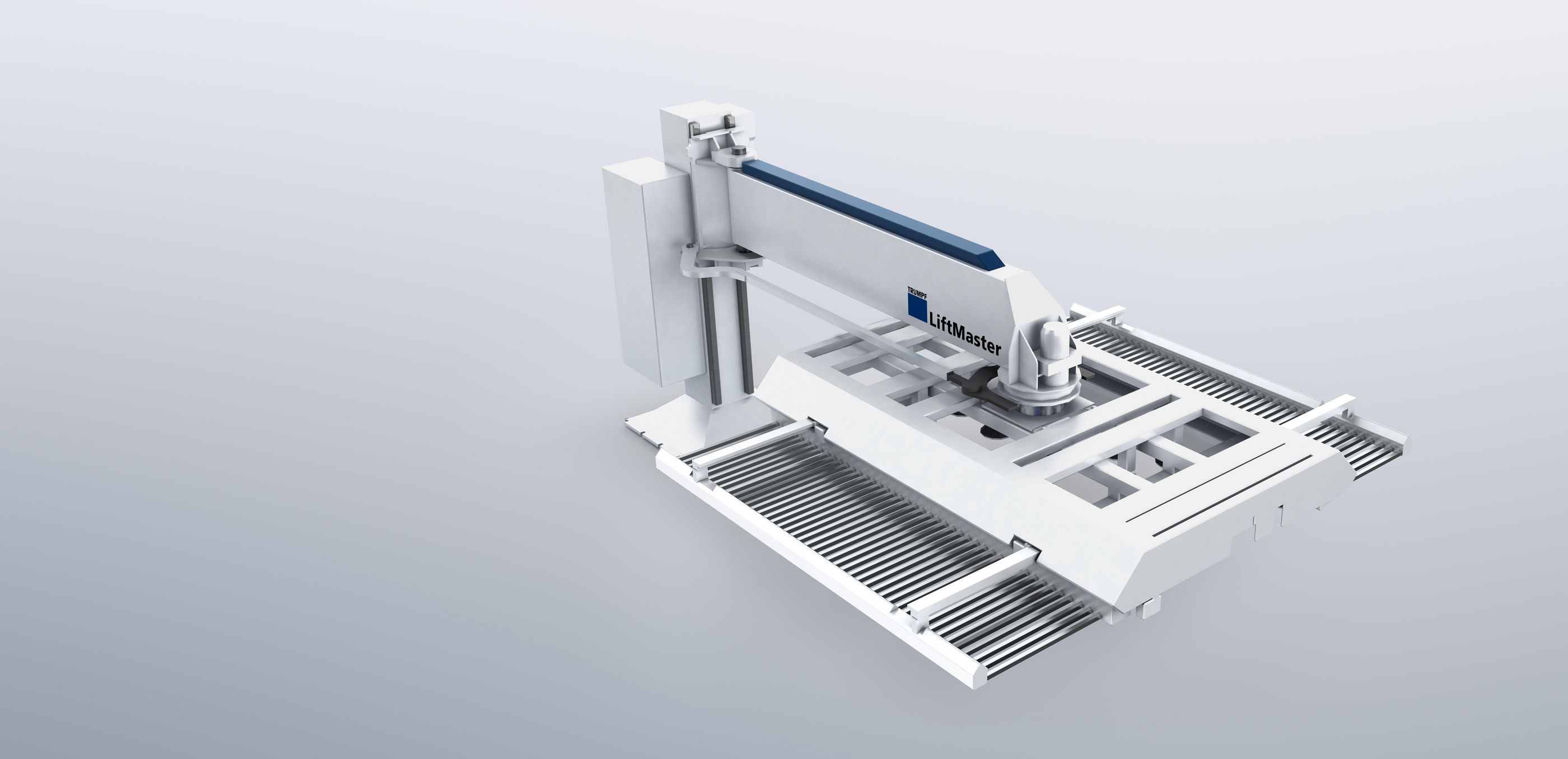

The automation solution, LiftMaster, covers a broad range of functions because of the variety of setup options. These range from simple loading and unloading processes to pallet handling and part removal. The basic module is the suction frame. It contains both suction cups, for the transportation of the unprocessed sheet, and rake arms for conveying cut sheets. With the integrated sorting function, the LiftMaster can also separate finished parts from the scrap skeleton and set them down.

Low-scratch sheet removal

The LiftMaster offers low-scratch part handling.

Many setup options

The swivel arm of the LiftMaster automatically adjusts to the circumstances of your application.

Production around the clock

Even without supervision, the LiftMaster will run 24/7 without compromising process reliability.

Fast process cycles

For a complete loading and unloading cycle, including pallet change, the LiftMaster requires just four minutes.

LiftMaster and LiftMaster Sort – flexible loading and unloading

	LiftMaster large format	LiftMaster max format
General
Zykluszeiten	230 s	245 s
Loading
Maximum sheet size	3000 mm x 1500 mm	4000 mm x 2000 mm
Minimum sheet size	1000 mm x 1000 mm	1000 mm x 1000 mm
Maximum sheet thickness	25 mm	25 mm
Maximum sheet weight	900 kg	1600 kg
Unloading
Maximum sheet size	3000 mm x 1500 mm	4000 mm x 2000 mm
Minimum sheet size	150 mm x 150 mm	150 mm x 150 mm
Maximum sheet thickness	25 mm	20 mm
Max. sheet thickness (belt prong)	15 mm	15 mm
Maximum sheet weight	900 kg	1260 kg
Minimum part size	150 mm x 150 mm	150 mm x 150 mm

PDF <1MB

Technical data sheet

The technical data of all product versions as a download.

Introduction to the LiftMaster storage connection

TruStore Series 1000

Practical compact store

To the product

TruStore Series 3000

The most flexible storage

To the product

Sorting function

With the LiftMaster Sort you can separate large parts from the scrap skeleton.

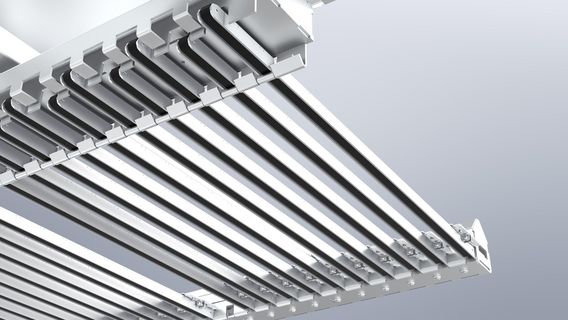

Belt prongs

So-called belt prongs enable low-scratch part unloading with high positioning accuracy

Auxiliary pallet operation

Auxiliary pallets assist the loading and unloading process. The LiftMaster automatically takes care of their handling.

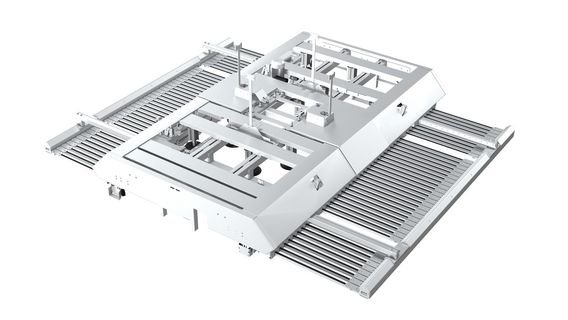

Suction frame/unloading rake

The unloading rake takes the finished, processed sheet from the pallet changer and places it in the unloading area. The suction frame is fitted with individually controllable suction cups that pick up the unprocessed sheets from the loading area and place them on the pallet changer

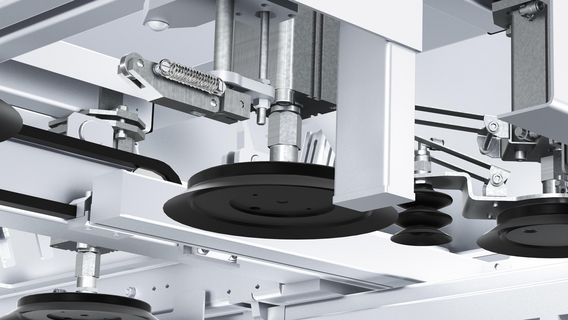

LoadMaster, reliable sheet metal separating process

Thin sheet separation

With the thin sheet separation option, you can even separate film-coated or oily sheets with a thickness between 0.03 and 0.08 inches.

The LiftMaster connects a TruLaser 3030 indirectly with a TruStore 3030

TruLaser 3030 with LiftMaster
